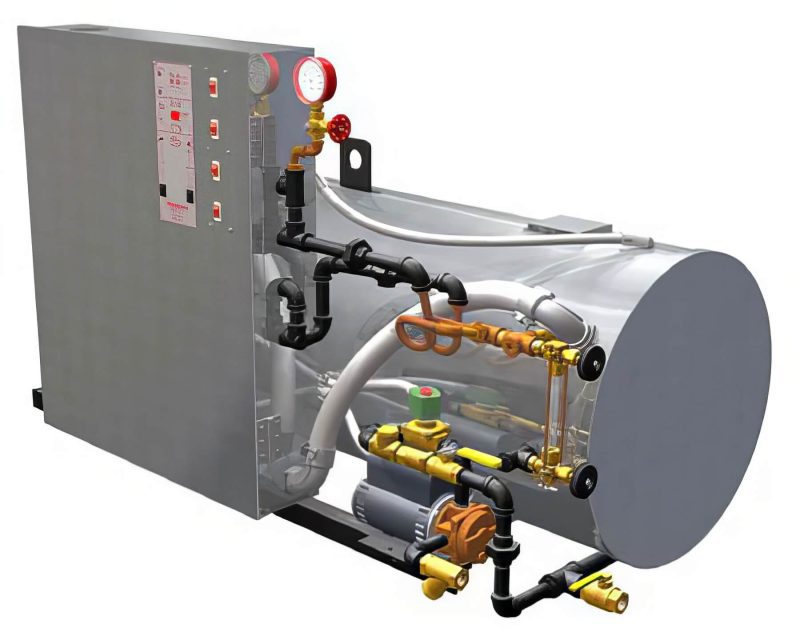

54KW, 208V Steam Generator


• Miniature boiler max. vessel volume 5ft3
• Maximum safety valve setting 100psi
• All boilers are manufactured in accordance with the
requirements of the A.S.M.E. Boiler and Pressure Vessel Code and A.S.M.E. CSD‐1. Each boiler bears the National Board Stamp “M”.
• High quality saturated steam, operating pressure range 0 – 85psig
• Heavy duty carbon steel pressure vessel. Vessel jacket and electrical enclosure 304 stainless steel
• Large selection of optional equipment

Heating Power: 54 KW
Steam Capacity: 185ibs/hr (84)kg/hr
Voltage: 208V 3Phase
Current Draw: 149.9A
Total Weight: 530lbs.

Recommended Additional options: Blowdown Cooling Tank to below 140deg F – BTANK-16, Timer activated Autoflush – OPT-1001, Pressure activated autoflush OPT1016-RX

Lead Time: 25-30 days

Want a discount? Ask about our service agreements! With a service agreement, you can get 5% off of any online purchase.
SKU: RXH54C3F Category:
