Acuity PDR+ Wireless Portable 5KW X-ray with DR e-series 1417 CSI Wireless Digital Radiology System

Request Quote

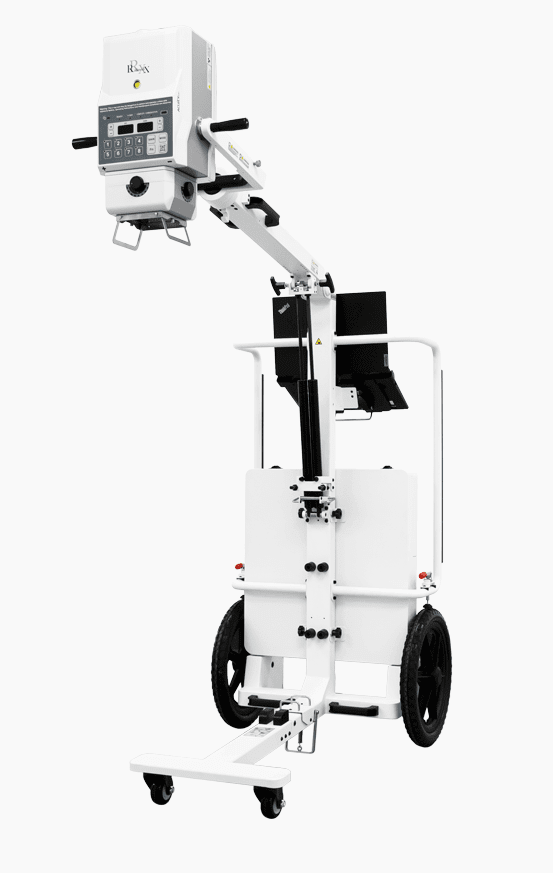

Acuity PDR+ Wireless Portable 5KW X-ray System. Wireless Portable X-ray System w/ Mobile Stand

To submit a quote request for this product please fill out the form below.
Product Quote Request
Quantity *

Want a discount? Ask about our service agreements! With a service agreement, you can get 5% off of any online purchase.
SKU: AM-2025B-3643WEL Category: Tags: , , , ,


Acuity PDR+ Wireless Portable 5KW X-ray System. Wireless Portable X-ray System w/ Mobile Stand

X-ray Generator
• Power 5.0 kW
• Output Tube Voltage: 40 kV – 125kV
• Output Tube Current: 10/100 mA
• Current Time: 0.4~200 mAs
• Focal Spot: 1.2×1.2mm
• Lithium-Ion Battery – 380 exposure battery capacity on a full battery charge
• Warranty – 1yr. parts

Mobile Stand Includes
• Folding and height adjusting laptop tray
• Folded locking arm and legs
• Locking Wheel brakes with Solid Tires
• Built-in housing to store the detector w/ protection case

Acuity DR e-series 1417 Wireless/Laptop

Acuity DRe 1417 CSI Wireless Digital Radiology System
• 14×17 Wireless Cassette Sized Detector Features
• Detector Type- TFT Csi Flat Panel Detector
• Detecting Area- 14×17
• Pixel Resolution- 2304 x 2800 pixels
• Pixel Pitch – 148um
• Preview Time- <5 seconds after exposure
• A/D Conversion- 16 bits
• Communication – Wireless (AP) Access Point Communication
• Interface- AED
• Internal Battery
• Charging Cradle
• Battery Performance- 10 hr. (*battery performance varies with standby time*)
• Weight- 7.7 lbs.
• 5 Year Panel Warranty covering manufacturer’s defects
• 5 Year drop Coverage with a $9,800.00 Deductible Per Occurrence

AccuVue Software Features
• Hospital Grade Acquisition Imaging Software Suite
• Modern graphical user interface (GUI)
• Supports touchscreen operation – to ensure quick and efficient work and a smooth workflow
• Multi-User & Admin Accounts
• Rejection Analysis
• Custom Projections
• Multi-Monitor Support
• Virtual Grid
• Diagnostic Tools: Zoom, Rotate, ROI selection, Measure, Angles, Customized Tool bar, Multi-image Display, Pan Window Level/Window Width, Text
• Integrated software for automatic image optimization
• Professional, adaptable image processing for each individual examination to obtain best possible image settings for the needs of each customer
• Image Export (.JPG, .TIF, .DCM, BMT, * DICOM Send/Store (Multi- Destination)
• DICOM Patient CD
• DICOM Modality Worklist

Workstation Features
Lenovo Think Pad P15 G2
• Intel i7-1165G7 Processor
• 15.6″, (1920 x 1080) Full HD
• Memory: 16GB
• Storage: 512GB SSD
• OS: Win10 IoT OS, 64 Bit
• USB port: 2x Type-A 1x Type-C
• 3 Year Manufacture’s Warranty
• 3 Year Next Business Day Support

X-Ray Generator 12 Months
Panel 5 Year warranty
Software Warranty 1 Year
Workstation 3 Year warranty

50% Deposit Required at time of order, balance due upon Installation

Technologist training will take place on agreed date after the X-Ray system is installed and patients are scheduled. (4) hours of technologist training are included. Additional training is available at a price of $1,500 per day.

Installation from alternative vendors not permitted, warranty will be void.
