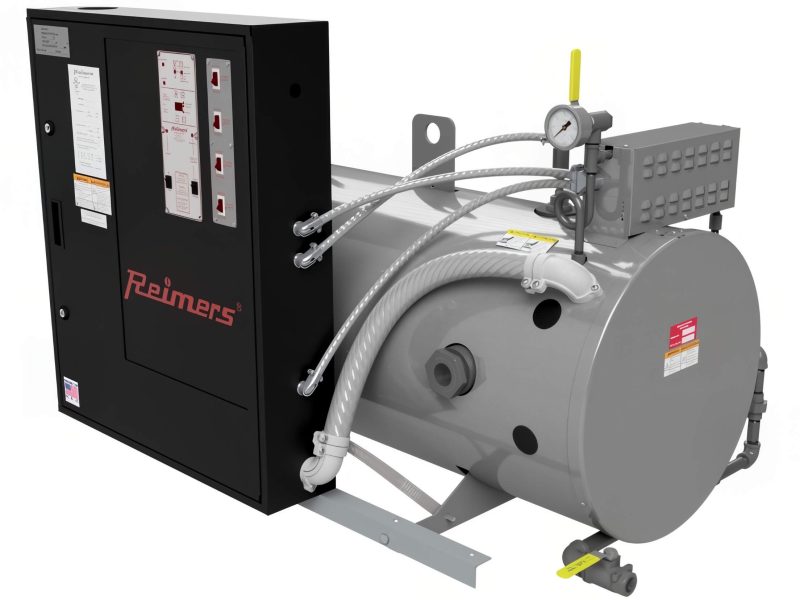

Reimers SR Steam Boilers

All Stainless 120KW, 480V Steam Generator NO Feedwater Pump

Request Quote

The All Stainless 120KW Steam Generator with a 480V three-phase power supply is a high-capacity, industrial-grade steam production system designed for continuous, reliable operation without a feedwater pump, suitable for demanding applications. Constructed entirely from 316 stainless steel—including shell, controls, heating elements, and wetted parts—this generator complies with ASME Boiler and Pressure Vessel Code and ASME CSD-1 standards, bearing the National Board Stamp “M.” With a maximum vessel volume of 5 ft³, it delivers up to 409 lbs/hr of high-quality saturated steam within an operating pressure range of 0–85 psig, with a safety relief valve set at 100 psi. Features include adjustable pressure controls, manual reset hi-limit controls, flange-mounted heating elements with forged stainless steel flanges, and comprehensive piping that includes solenoid valves, strainers, pressure gauges, check valves, and safety valves. Its outer shell is wrapped in low-chloride fiberglass insulation and encased in a stainless steel jacket for durability. For systems requiring water feed, the SRH model adds a high-pressure water pump. The unit requires a minimum 180A service, with a maximum conductor size of 3×500 MCM, and weighs approximately 795 lbs. Optional accessories include a blowdown cooling tank to maintain low water temperatures.

Reimers SR Boiler Brochure
To submit a quote request for this product please fill out the form below.
Product Quote Request
Name
Name
Quantity *

SKU: SR120K3F Category: Tags: , Brand:

Description

All Stainless 120KW, 480V Steam Generator NO Feedwater Pump

SR MODELS (SOLENOID WATER FEED) All wetted parts (shell, controls, heating elements, other wetted trim) constructed of 316 series Austenitic Stainless Steel. Equipped with adjustable pressure control and manual reset hi-limit control, heavy duty magnetic contactors, combination low water cut-off and water controller. Heating elements are flange mounted with 150 psi rated forged stainless steel flanges and stainless steel sheathing. Piping includes solenoid valve with strainer, pressure gauge, ASME safety valve, check valve, stop valve, steam outlet valve, water gauge bull’s eye, off-on switch with pilot light. Shell is 316 stainless steel of ASME construction wrapped in 2” certified low chloride fiberglass insulation & encased with 20 ga. Stainless Steel jacket. Stainless steel trim for non-wetted parts available.

SRH MODELS (H.P. PUMP WATER FEED) Includes high pressure feed water pumping system assembled and wired to above & below.

  •  Miniature boiler max. vessel volume 5ft3
  • Maximum safety valve setting 100psi
  • All boilers are manufactured in accordance with the requirements of the A.S.M.E. Boiler and Pressure Vessel Code and A.S.M.E. CSD‐1. (CRN Available). Each boiler bears the National Board Stamp “M”.
  • High quality saturated steam, operating pressure range 0 – 85psig

ASME (PEB 5.3) requires:
***Boilers constructed of Austenitic Stainless Steel be operated on deionized water only, Having a minimum specific resistivity of 1 megohm/cm
* Water Fixture contains lubricant in valve packing.

Specs:

  • Heating Power: 120 KW
  • Steam Capacity: 409lb/hr
  • Voltage: 480V 3Phase
  • Current Draw: 144.3A Draw
  • Total Weight: 795lbs.
  • 180A Minimum Required NEC Service
  • Terminal Max Conductor Size: 3x500MCM

Recommended Additional options:
Blowdown Cooling Tank to below 140deg F – BTANK-16,

MANUFACTURED IN U.S.A.
