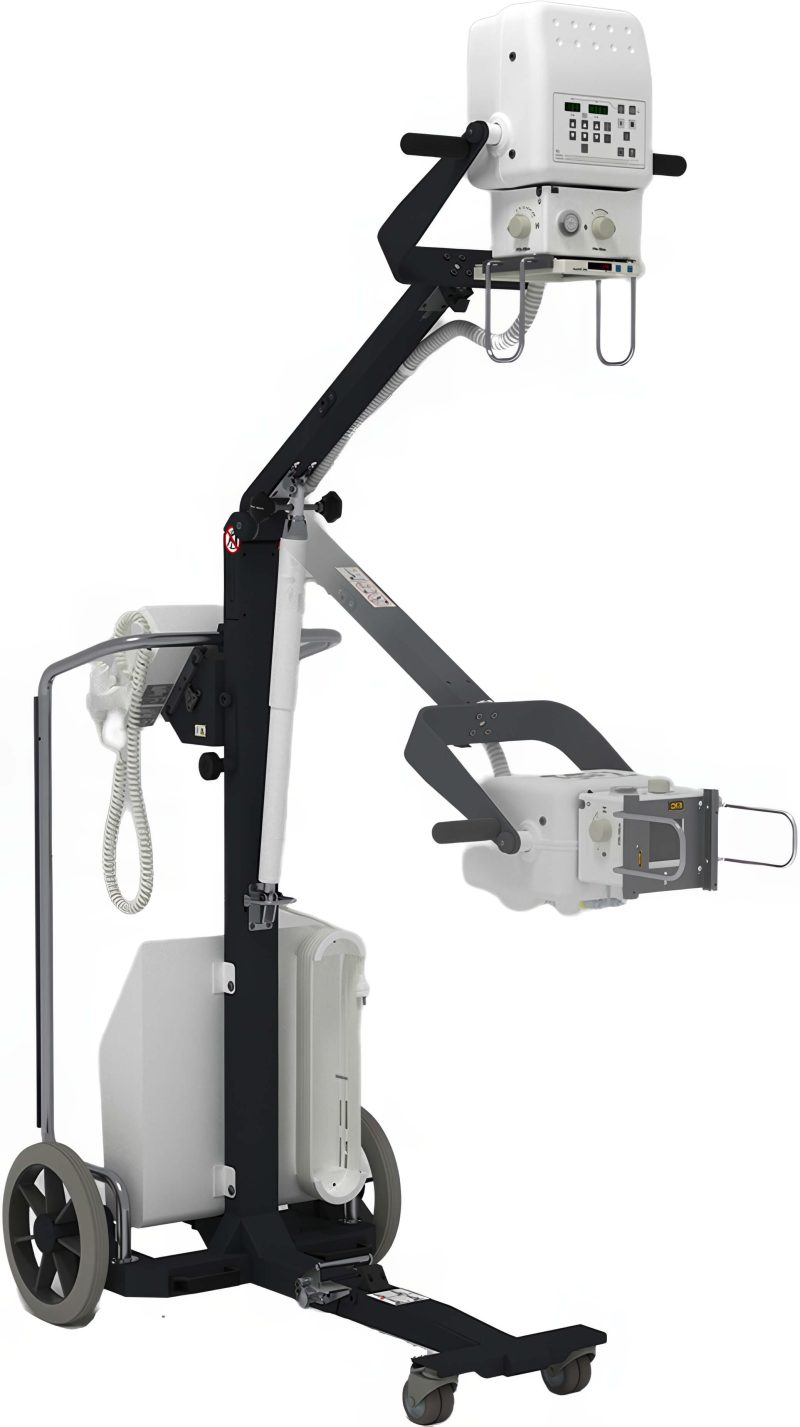

Amrad Dragon Classic Portable X-ray

Request Quote

Amrad Dragon Classic Portable X-ray

To submit a quote request for this product please fill out the form below.
Product Quote Request
Quantity *

Want a discount? Ask about our service agreements! With a service agreement, you can get 5% off of any online purchase.
SKU: SPSL-HF-4.0-APAL Category: Tags: ,


4.0 kW, 100 mA, 125 kVp (see power requirements below)
High-Frequency Ripple: 300 kHz
40 to 125 kVp in 1 kVp steps
Overlay Console allows customization of 1 APR region
20 editable positions; 6 regions optional
14 mA stations: 5, 6.4, 8, 10, 12.5, 16, 20, 25, 32, 40, 50, 64, 80 and 100
0.001-10 second exposure time range, 41 total in 25% steps
0.1 to 250 mAs, 34 total in 25% steps

X-Ray Tube:
0.5mm x 1.8mm dual focus stationary anode tube, 47,215HU/16 Degree

Collimator certified manual

Stand on base with wheels for easy maneuverability
The gas spring arm supports the tube to accommodate easy positioning
Positive mechanical brakes
Cassette storage box accommodates up to 8 cassettes

Vertical tube travel, 62″ (16.7″-78.7″)
118 lbs total weight

Power Cord, 19.7′ long (6 meters)
Exposure Cord, 9.8′ long (3 meters)
Single-phase line Automatic Regulation, Automatic Output Power Adaptation to Power Line Conditions

Additional information
