Description

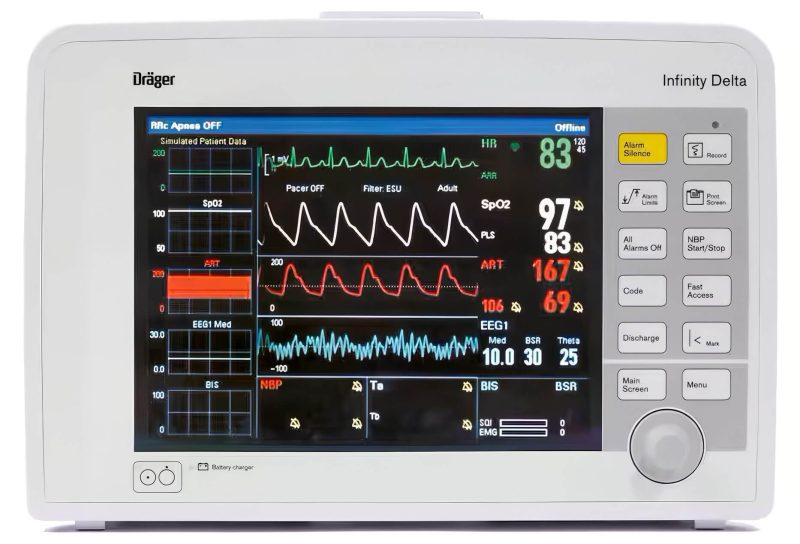

The Drager Infinity Delta is a patient monitor with technology that allows the monitor to stay with the patient, from bedside to transport. The monitor can go from a wired bedside monitor to a wireless monitor without any interruption. The Drager Infinity’s 10.4 LCD Color screen makes it easy to read the patient’s vital signs on the display screen. The Drager Infinity Delta monitoring parameters include; 3,5,6 and 12 lead ECG, respiration, st segment analysis, etCO2, BiSx, EEG, NIBP, IBP, multiple temperatures, and full arrhythmia.
FEATURES:
- 10.4 inch TFT color LCD Display
- 5 standard channels, 6 and 8 optimal channels
- 24 hours of trending data storage
- Can be a standalone monitor or it can be connected to the Infinity Network
- Can be either wired or wireless
- Customizable to the hospital or to the individual patient’s needs
- Pick-and-go technology allows the monitor to stay with the patient from the bedside to transport
- Can be used on all patients from Neonatal, pediatric, and adult.
SPECS:
- Battery
- Type: Rechargeable Lithium-ion
- Capacity: 180 minutes
- Charging Time: 6.5 h
- ECG
- Displays up to 12 leads
- Heart Rate Range: 15 to 300 bpm
- Accuracy: ±2 bpm or ±1% (whichever is greater)
- Respiration
- Measuring Method: Impedance pneumography
- Measuring Range: 0 to 155 breaths per min
- Accuracy: ±1 breath/min or 2% of rate (whichever is greater)
- Apnea Detection: For neonatal and pediatric patients
- SpO2
- Masimo SET, Nellcor OxiMax, Drager OxiSure
- Method: Transmission spectrophotometry
- SpO2 Measuring Range: 1 to 100%
- Pulse Measuring Range: 30 to 250 bpm
- NBP (Noninvasive Blood Pressure)
- Displayed Parameters: Systolic, Mean and Diastolic pressures
- Measuring Method: Oscillometric utilizing step deflation
- Modes of Operation: Manual (single measurement); Continuous (5 minutes) and Interval
- Interval Times: 1, 2, 2.5, 3, 5, 10, 15, 20, 25, 30, 45, 60, 120 and 240 minutes
- Heart Rate Measuring Range: 30 to 240 bpm
- IBP (Invasive Blood Pressure)
- Displays up to 8 pressures
- Measuring Method: Resistive strain gauge transducer
- Display Resolution: 1 mmHg
- Measuring Range: -50 to 400 mmHg (after zeroing)
- Frequency Ranges: DC to 8 Hz, DC to 16 Hz, or DC to 32 Hz (user-selectable)
- Zero Balance Range: ± 200 mmHg
- Electrical
- Input Voltage: 11 to 15 V DC
- Power Consumption: =70 Watts (fully loaded)
- Patient Leakage Current: =10 mA
- Protection Class: Internally powered (per IEC 60601-1) and for use with specified Class 1 power supplies.
- Power Requirements: 100 to 240 V AC, 3 A
- Frequency: 50 to 60 Hz
- Operating Specifications
- Temperature: 50° F to 104° F (10° C to 40° C)
- Humidity: 20% to 90%, non-condensing
- Atmospheric Pressure: 525 to 795 mmHg (70 to 106 kPa)
- Storage Specifications
- Temperature: -4° F to 104° F (-20° C to 40° C)
- Humidity: 10% to 95%, non-condensing (With packaging)
- Atmospheric Pressure: 375 to 795 mmHg (50 to 106 kPa)
