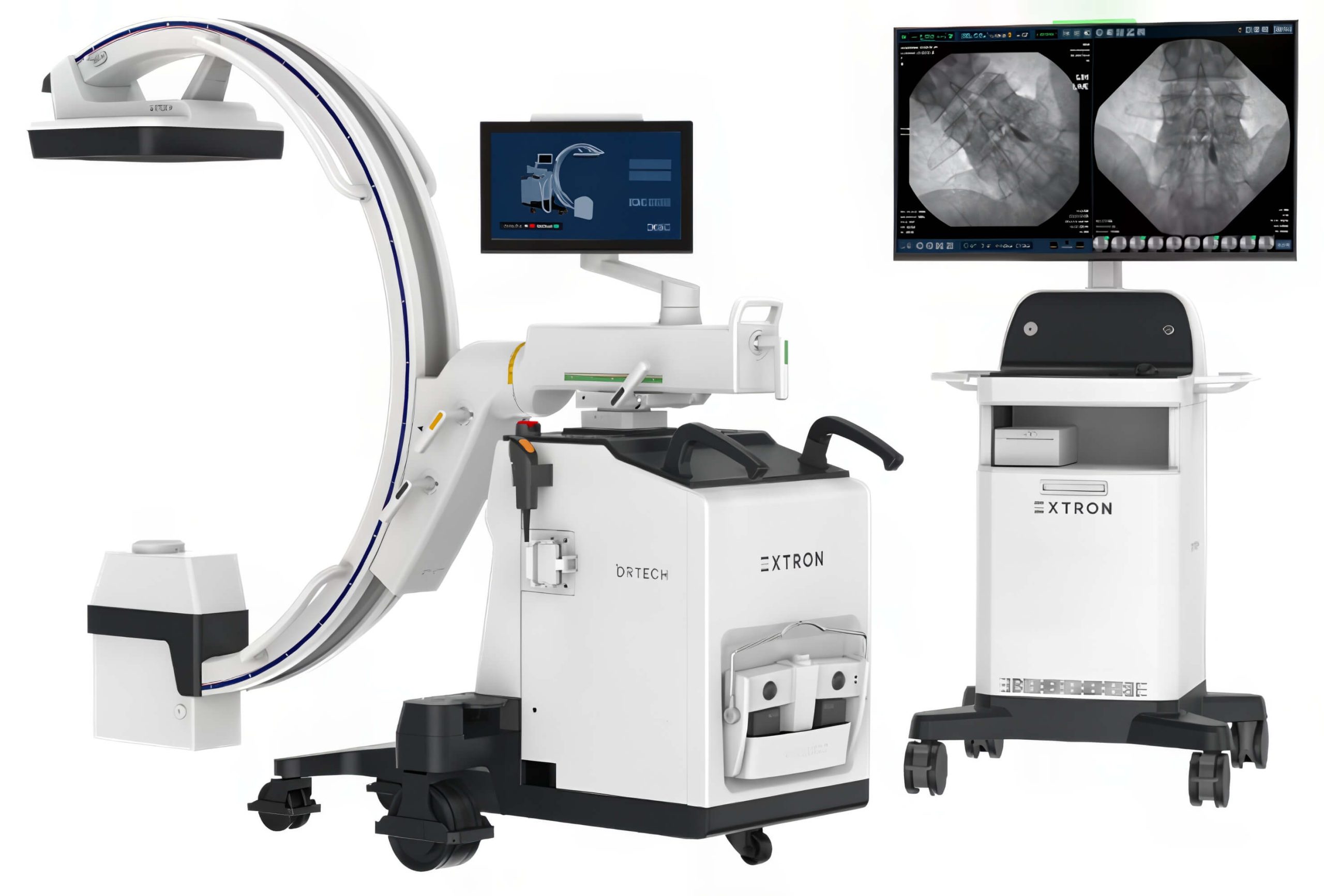

DRTECH EXTRON 5 Premium C-Arm 23×23 Flat Detector
EXTRON 5 is a premium C-arm system designed to provide superb image quality at low-dose and make surgical imaging easier for physicians and technicians.
FEATURES:
- Ultimate Low-Dose Digital C-arm System
Low-dose, high-performance surgical imaging system with proven detector and industry-leading low dose technology reducing unnecessary radiation exposure for physicians, operators and patients. - RNR, Real-time Noise Reduction Imaging Technology
Real-time motion and non-motion region analysis enables optimal image processing, delivering high-quality low-noise images with up to 30% higher SNR. - User Friendly Design
EXTRON’s user-friendly and usability-focused design for convenient and effective surgical setting - Improved Workflow, Enhanced Productivity
Equipped with practical functions that help reduce surgery time and maximize user convenience. - Reinforced Safety
Ensures safety in an OR against unexpected system errors with RAID 1st [OPTION] class storage, Emergency Radiography, and Mirroring System.
Standard Configuration:
- C-arm Unit
- Monitor cart
- Digital Imaging System
- 23×23 Dynamic Flat Panel Detector
- 43” 4K Monitor (700cd/m2)
- Green laser guide in horizontal and vertical direction
- Wired 2-button Foot Switch
- Hand Switch
- Air Kerma
- Virtual Collimator
- Emergency Radioscopy (IEC 60601-2-43 (A2:2019)
- Manuals (Service, Installation, User)
- XConsole imaging SW
- 31.5” 4K Medical Monitor (800cd/m2)
- RAID 1st class storage
- Thermal Printer (UP-D897MD)
- D.A.P (Dose Area Product)
- Equipment Protection cover
System Power Requirements
- Line Voltage/Input Power: 120-127 VAC 50/60Hz, 20A (Momentary), 5A(Stand-by) 220-230 VAC 50/60Hz, -16A (Momentary), 3A (Stand-by)
C-arm:
- SID: 1,010mm
- Orbital Rotation: 165 ̊ (+120 ̊/-45 ̊)
- Horizontal Movement: 200mm
- Vertical Movement: 500mm
- Panning Movement: ± 12.5 ̊
- Pivot Rotation (C-arm rotation): ± 235 ̊
- Reverse Position: Yes
Ambient Conditions Operation:
- Ambient Temperature: 10°C~35°C (for main equipment only)
- Relative Humidity: 35~75%
- Atmospheric pressure: 800~1060hPa
- Transportation & Storage:
- Ambient Temperature: -10°C~50°C (for main equipment only)
- Relative Humidity: 10~85%
- Atmospheric pressure: 700~1060hPa
Detector:
- Standard
- Panel: IGZO TFT
- Scintillator: CsI (Cesium Iodide)
- Resolution: 1,536 x 1,536 pixels
- Pixel Pitch: 148um
- A/D Conversion: 16-bit
- Energy Range: 40-160kVp
- Power Consumption: 15W
Grid:
- Standard
- Size: 246 x 246mm
- Grid Line: 200 L/inch
- Ratio: 8:1
Focus Distance: 100cm
- option:
- Size: 324 x 324mm
- Grid Line: 200 L/inch
- Ratio: 8:1
- Focus Distance: 100cm
Dose Area Product (DAP Option):
- Product: VacuDAP-C
- Standard Calibration Response: 960pC/ uGy m2
- Leakage Current: ≤ 0.1pA
- Quality Equivalent Filtration: 0.3 mm Al(@70KV)
- Active Area: 1 Ø (8 … 70) mm
- Chamber voltage: 300 V
- Dose Area Product: 0.01 uGy/m2
- Dose Area Product Rate: 0.01 uGy/m2
- Irradiation time: 0.001s
- Ionization Chamber Weight:
Collimator:
- Iris Collimator
- 4 Leaf Collimator
- Leaf Rotation
- Virtual Collimator
Laser Guide:
- Green Laser (Class 2)
- At Tube (Tube to detector side)
- At Detector (Detector to Tube side)
Dose Report:
- Air-Kerma
- DAP
Monitor:
- Dual hinge monitor arm (swivel arm)
- Size: 43”
- Panel Technology: IPS
- Native Resolution: 3,840 x 2,160
- Contrast Ratio: 1,200:1
- Viewing Angle: (H x V) 178° Typ.
- Response Time: 8 ms (G to G)
X Console OP:
- CPU: Intel Apollo Laske N4200 Quad core, Up to 2.50GHz
- LAN Card: Windows 10 IoT Enterprise Entry LTSC 2019
- Display Panel: a-Si TFT – LCD, LCM
- Resolution: 1,920 (H) x 1,080 (W)
36-mo warranty on the DR panel
1 Day of on-site applications training if requested at additional fee
