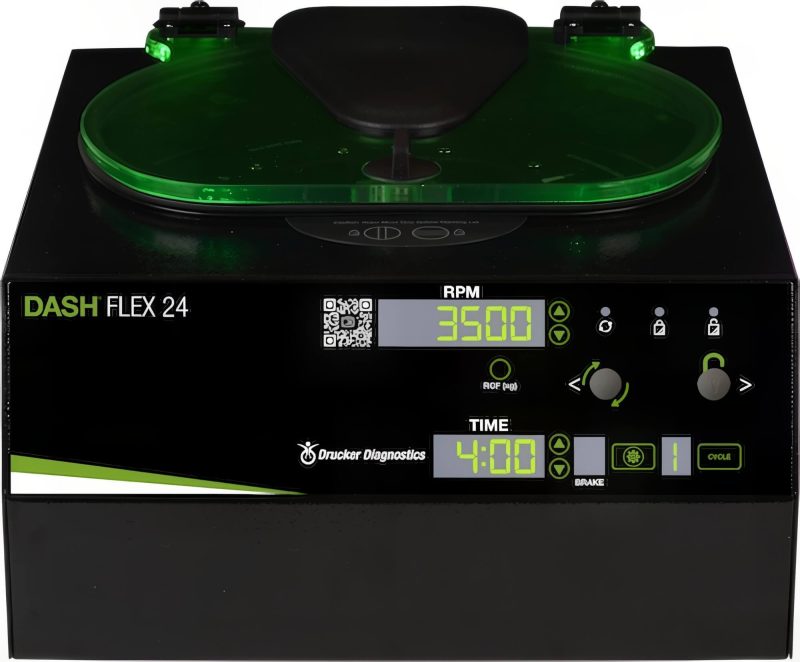

Drucker Diagnostics DASH Flex 24 Programmable STAT Centrifuge
The DASH Flex 24 centrifuge is built to meet the needs of large, high-volume STAT labs. Prevent forgotten samples and reduce turnaround time with LED lid lighting (patent pending). Bright lights indicate when the centrifuge is ready, running, or done, even in the noisiest labs. The clear, bright digital display shows a countdown timer when the centrifuge is running. With a small footprint, it fits easily in accessioning, and its 24-tube capacity allows it to be loaded and run more quickly, further driving down TAT. Use the simple controls to adjust time, speed and more on the fly. Or choose from one of three common STAT presets, program up to 10 of your validated settings, or lock to a single cycle for maximum repeatability.
Features:
- Capacity – 24 (up to 16 x 100 mm or 10 mL), 12 (up to 16 x 125 mm or 15 mL), 6 (up to 50 mL)
- Digital Display – Clearly see your custom parameters and the time left in each cycle
- Fully Programmable – Easily set and save up to 10 custom time, RPM, and g-force settings
- LED Lid Lighting – Lid lights flash at the end of each cycle and continue flashing until the lid is opened.
- Brushless DC Motor – Years of operation with no routine maintenance
- 2-Stage Horizontal Rotor – Drucker Diagnostics’ patented swing-out horizontal rotor design produces ideal horizontally separated samples
- Cool Operation – Unique design of the convection based cooling system protects the samples even under the heaviest workloads
- Automatic Lid Lock – Centrifuge will not run with the lid open and the lid cannot be opened while samples are spinning
- Positive Lid Latching – Firm mechanical latching of the lid prevents the escape of debris
- Clear Shatter Proof Lid – Allows for safe sample observation and optical calibrations
- Reinforced Guard Bowl – Provides maximum safety and durability
- Regulatory Approvals – Certified to US, Canadian, and European Safety regulations and standards
Specs:
- Dimensions (W x D x H): 15 x 17 x 9 in (38.1 x 43.2 x 22.9 cm)
- Weight – 39 lbs (17 kg)
- Max. Acceleration Time – 45 Seconds
- Max. Deceleration Time – 40 Seconds
- Factory Setting Range – 1 to 30 Minutes (± 1%)
- Voltage – 95 to 253 VAC
- Frequency – 50/60 Hz
- Max. Power Requirements – 280 Watts
Preset Cycles:
- Preset 1: 5 minutes / 4300 RPM / 3150 xg
- Preset 2: 6 minutes / 4300 RPM / 3150 xg
- Preset 3: 7 minutes / 3500 RPM / 2100 xg
Lifetime warranty on rotor.
