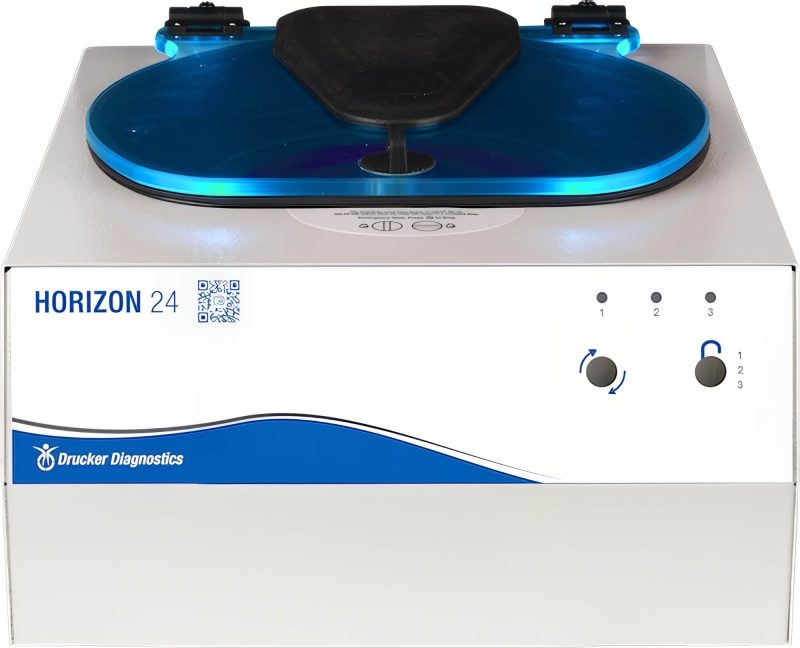

Drucker Diagnostics HORIZON 24 High-Capacity Routine Centrifuge
The HORIZON 24 routine centrifuge is designed for versatility, large capacity, simplicity, and ease of use. Spin tubes up to 50 mL with the simple set-and-lock controls for maximum repeatability. Select from one of three (3) preset cycles with the press of a button, or program your lab’s custom settings. Lid lights flash throughout the cycle and allow you to easily see the status of the centrifuge. Each centrifuge is ready to run with rotor, tube holders, and 2-year warranty included in the affordable price.
Features:
- Max Capacity – 24 (up to 16 x 100 mm or 10 mL), 12 (up to 16 x 125 mm or 15 mL), 6 (up to 50 mL)
- Factory Presets – Three (3) easily selectable preset cycles (default or custom) based on CLSI guidelines and tube manufacturer IFU
- Set and Lock Controls – Select a preset cycle, or lock to a single cycle with the two-button interface
- 2-Stage Horizontal Rotor – Drucker Diagnostics’ patented swing-out horizontal rotor design produces ideal horizontally separated samples
- Intuitive Lid Lighting – Lid lights flash at the end of each cycle and continue flashing until the lid is opened
- Automatic Lid Lock – Centrifuge will not run with the lid open and the lid cannot be opened while samples are spinning
- Cool Operation – Unique design of the convection based cooling system protects the samples even under the heaviest workloads
- Clear Shatter Proof Lid – Allows for safe sample observation and optical calibrations
- Brushless DC Motor – Years of operation with no routine maintenance
- Reinforced Guard Bowl – Provides maximum safety and durability
- Quiet Operation – Enjoy a sound level of just 59 dBA
- Regulatory Approvals – Certified to US, Canadian, and European Safety regulations and standards
Specs:
- Dimensions (W x D x H) – 15 x 17 x 9 in (38.1 x 43.2 x 22.9 cm)
- Weight – 39 lbs. (17 kg)
- Max. Acceleration Time – 20 Seconds
- Max. Deceleration Time – 20 Seconds
- Factory Setting Range – 1 to 30 Minutes (± 1%)
- Voltage – 95 to 253 VAC
- Frequency – 50/60 Hz
- Max. Power Requirements – 220 Watt
Preset Cycles:
- Preset 1: 10 min / 3300 RPM / 1800 xg
- Preset 2: 15 min / 3000 RPM / 1500 xg
- Preset 3: 5 min / 1700 RPM / 500 xg
Lifetime warranty on rotor.
