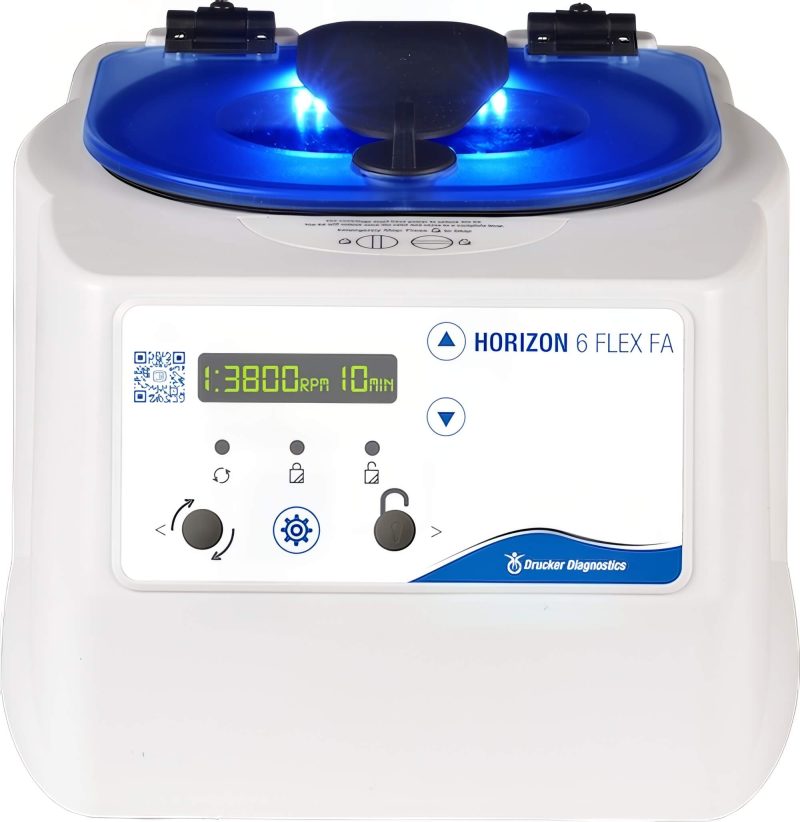

Drucker Diagnostics HORIZON 6 Flex FA Programmable Routine Centrifuge
The HORIZON 6 Flex FA centrifuge features a fully digital display and 10 programmable cycles for flexible fixed angle processing in the routine lab. Easily save and select your custom time, RPM, and g-force settings, or choose from three (3) carefully formulated presets. The LED lid lighting prevents forgotten samples and indicates when the centrifuge is ready, running, or done. Process all blood and urine tubes up to 16 x 125 mm or 15 mL, right out of the box. The fixed angle rotor, tube holders, and a 2-year warranty are included in the unbeatable price.
Features:
- Max Capacity – 6 (up to 16 x 100 mm or 10 mL), 6 (up to 16 x 125 mm or 15 mL)
- Fixed Angle Rotor – Separate specimens at a fixed angle of 45 degrees
- Fully Programmable – Save and recall 10 easily customizable cycle settings, or choose from three presets for chemistry, coag, and urine
- Set and Lock Controls – Switch between preset cycles, or lock to a single cycle with the easy-to-use two-button interface
- Intuitive Lid Lighting – Lid lights are off when the centrifuge is ready, on when running, and flashing when done
- Automatic Lid Lock – Centrifuge will not run with the lid open and the lid cannot be opened while samples are spinning
- Cool Operation – Unique design of the convection based cooling system protects the samples even under the heaviest workloads
- Brushless DC Motor – Years of operation with no routine maintenance
- Clear Shatter Proof Lid – Allows for safe sample observation and optical calibrations
- Reinforced Guard Bowl – Provides maximum safety and durability
- Quiet Operation – Enjoy a sound level of just 64 dBA
- Regulatory Approvals – Certified to US, Canadian, and European Safety regulations and standards
Specs:
- Dimensions (W x D x H) – 12 x 14 x 9 in (30.5 x 35.6 x 22.9 cm)
- Weight – 12 lbs. (5.4 kg)
- Max. Acceleration Time – 20 Seconds
- Max. Deceleration Time – 20 Seconds
- Factory Setting Range – 1 to 30 Minutes (± 1%)
- Voltage – 95 to 253 VAC
- Frequency – 50/60 Hz
- Max. Power Requirements – 220 Watts
Preset Cycles:
- Preset 1: 10 min / 3900 RPM / 1600-1850 xg
- Preset 2: 15 min / 3800 RPM / 1500 xg
- Preset 3: 5 min / 2200 RPM / 500-600 xg
Lifetime warranty on rotor.
