Description

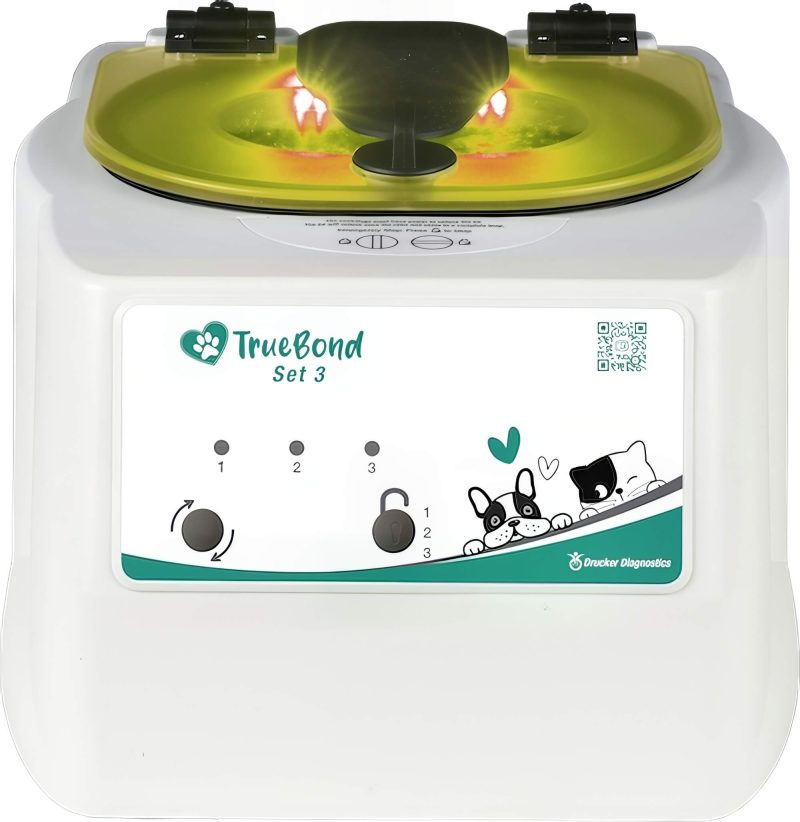

Drucker Diagnostics TrueBond Set 3 Set-and-lock veterinary centrifuge for blood, urine, fecal, and microhematocrit
Using the TrueBond Set 3 set-and-lock veterinary centrifuge, vet laboratories can now spin microhematocrit tubes, fecal, blood, urine, and more in one compact centrifuge. The TrueBond Set 3 is easy to use, with simple controls designed for maximum repeatability and presets for all common veterinary needs. Its small footprint makes it an easy fit in even the tightest labs.
Features:
- Capacity – 6 blood, urine, and fecal tubes (up to 16 x 125 mm or 15 mL), or 8 microhematocrits
- Set and Lock Controls – Switch between preset cycles, or lock to a single cycle with the easy-to-use two-button interface
- Fixed Angle Rotor – The rotor remains at a 45° angle during processing, spin 75 mm, 100 mm, and 125 mm tubes in specially designed tube holders
- Intuitive Lid Lighting – Lid lights are off when the centrifuge is ready, on when running, and flashing when done
- Cool Operation – Unique design of the convection based cooling system protects the samples even under the heaviest workloads
- Automatic Lid Lock – Centrifuge will not run with the lid open and the lid cannot be opened while samples are spinning
- Positive Lid Latching – Firm mechanical latching of the lid prevents the escape of debris
- Clear Shatter Proof Lid – Allows for safe sample observation and optical calibrations
- Reinforced Guard Bowl – Provides maximum safety and durability
- Regulatory Approvals – Certified to US, Canadian, and European Safety regulations and standards
Specs:
- Dimensions: 12 x 14 x 9 in (30.5 x 35.6 x 22.9 cm)
- Weight – 12 lbs (5.4 kg)
- Factory Setting Range – 1 to 30 Minutes (± 1%)
- Voltage – 100 – 240 (+/- 10%) VAC
- Frequency – 50/60 Hz
Comes With:
- (6) 125 mm carriers
- (6) universal 75-100 mm carriers
- (6) pediatric tube adapters
- (1) microhematocrit reader card
- (2) adapters for 40-75mm long capillary tubes
Preset Cycles:
- Cycle 1: 10 min / 3900 RPM / 1600 xg (10 mL) or 1850 xg (15 mL)
- Cycle 2: 5 min / 2000 RPM / 425 xg (10 mL) or 500 xg (15 mL)
- Cycle 3: 6 min / 3800 RPM / 1550 xg (10 mL)
Lifetime warranty on rotor.
