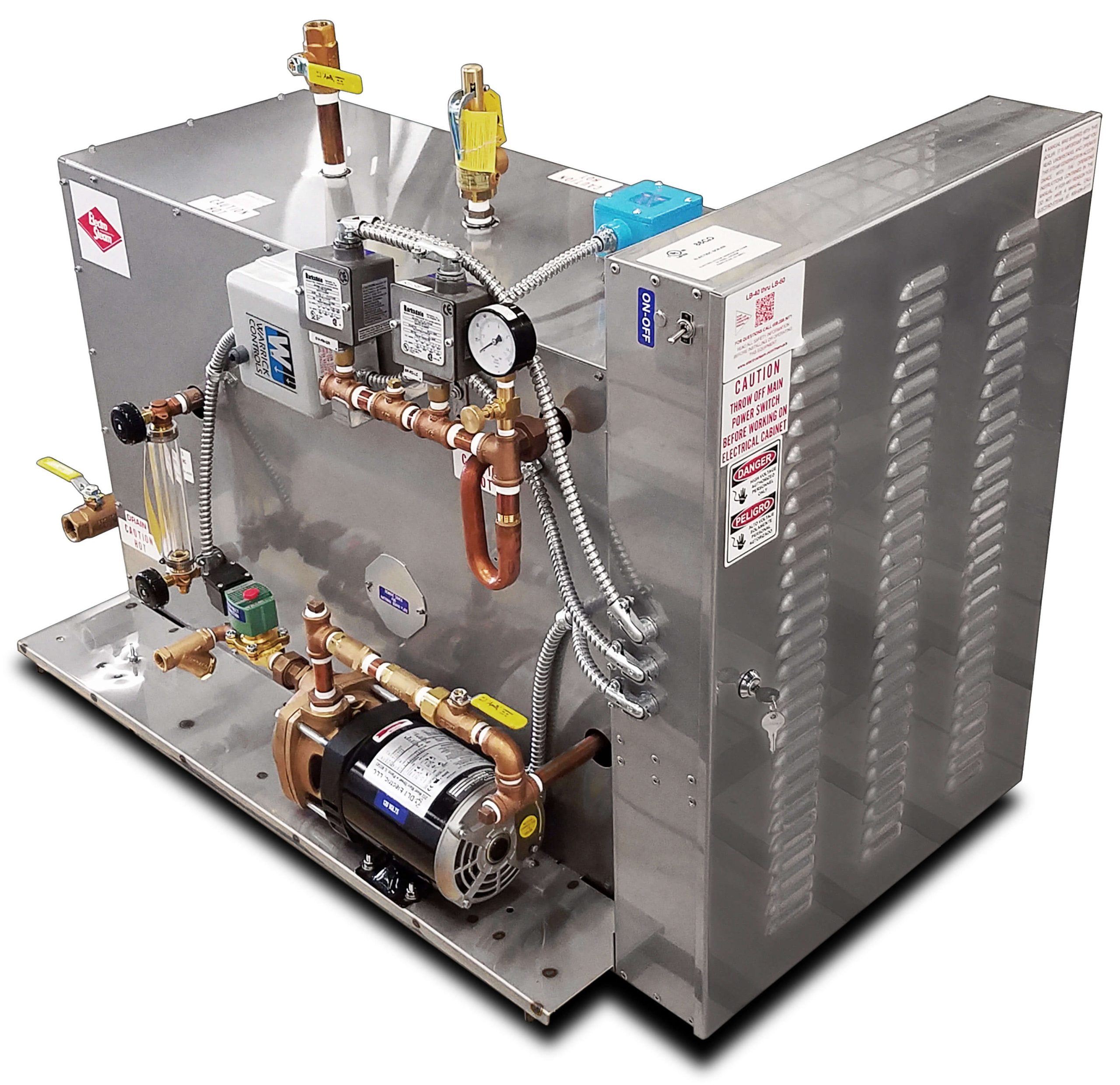

Electro-Steam LB-60 480V Steam Generator

Electro-Steam LB-60 480V Steam Generator

Request Quote

The Electro-Steam LB-60 480V Steam Generator is a high-capacity, 60 kW steam generator designed for demanding industrial applications. It delivers up to 207 lb/hr of steam at 212°F, with adjustable boiler pressure from 0 to 100 psi and a robust 6 BHP boiler output. Powered by 480 V, 3-phase, 60 Hz electrical service (approximately 73 amps for the heater elements) and a separate 120 V single-phase supply for operational controls, it provides reliable, high-pressure steam generation in a compact footprint suitable for commercial or process environments.

To submit a quote request for this product please fill out the form below.
Product Quote Request
Name
Name
Quantity *

SKU: AM-LB-60-H Category: Tags: , Brand:

Description

Electro-Steam LB-60 480V Steam Generator

Specs:

  • Steam output rating: 207 lbs/hr. from and at 212°F
  • 0 to 100psi with 6.0 Boiler Horse Power [BHP]
  • Electrical Power: 60kW; 480 Volts; 3 Phase; 60 Hertz
  • Approximately 73 Amps for Heater Elements
  • 120 Volt Single Phase required for operational controls

Additional information

Condition
