Erbe ICC 80 ESU

Request Quote

The Erbe ICC 80 ESU is a compact and reliable electrosurgical unit designed for clinicians who require up to 80 watts of power with precise control. It features Cut Control, which ensures sharply defined, reproducible cutting quality, making it ideal for delicate procedures. For enhanced cut control and fractionation, especially during polypectomy or papillotomy, it offers an optional Endo Cut™ mode, providing optimal performance in tissue cutting and vessel sealing. The device boasts a comprehensive range of coagulation functions, including Endo Cut™ for use with snare wires and sphincterotomes, Power on Demand that delivers as much energy as necessary while conserving energy, Forced Coag™, Soft Coag™, and the option to expand for Argon-based procedures. Its operating mode includes intermittent operation, with an ON time of 25%, allowing controlled activation during procedures. The ICC 80 is built to withstand a wide range of environmental conditions, withstanding temperatures from -40°C to +70°C for shipping and storage, and functioning optimally between +10°C to +40°C during use, with non-condensing humidity levels up to 95%. Power-wise, it operates at 50/60 Hz, consumes 6.0 A at 100–115 V, and uses just 25 watts in standby mode. The maximum energy output reaches up to 80 watts at rated ohms, providing reliable, controlled energy for various surgical applications.

To submit a quote request for this product please fill out the form below.
Product Quote Request
Name
Name
Quantity *

SKU: AM-ICC80 Category: Tags: , Brand:

Description

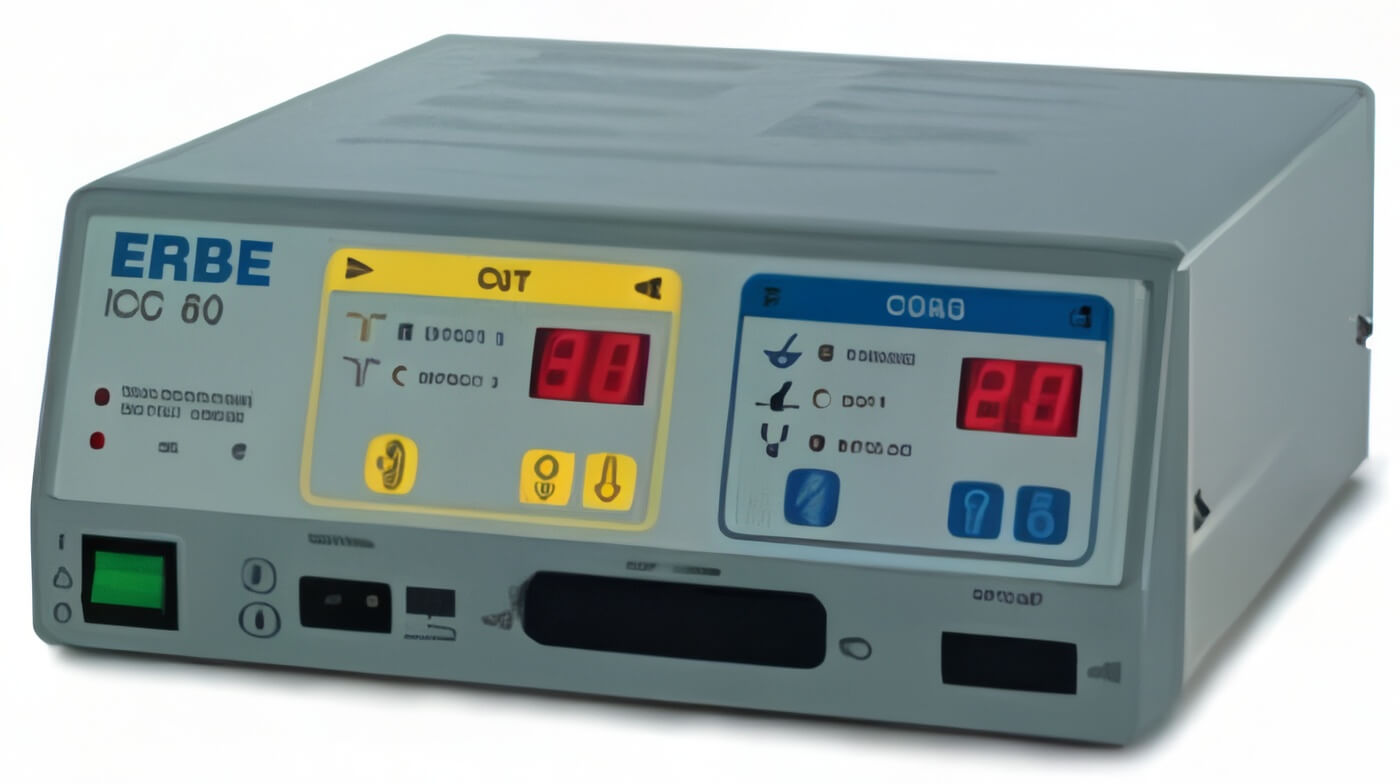

Erbe ICC 80 ESU

The ERBIE ICC 80, a comfortable unit for all those who need no more than 80 watts of output, with CUT CONTROL for sharply defined, reproducible cutting quality. Optional ENDO CUT gives the best in cut control and fractionation in polypectomy or papillotomy.

A comprehensive range of coagulation functions:

ENDO CUT™ for use with snare wires and sphincterotomes
Power on Demand – As much as necessary, as little as possible
Forced Coag™
Soft Coag™
Expandable for Argon use

Operating Mode:

Intermittent operation: ON time 25 % (e.g. activated for 10 sec. / deactivated for 30 sec.)
Environmental conditions for shipping and storage of the unit

Temperature: -40°C to + 70°C
Air Humidity, relative: 10% to 95%
Environmental conditions for operation of the unit

Temperature: +10°C to + 40°C
Air Humidity, relative: 130% to 75%, noncondensing

Power Conditions:
Rated power frequency: 50 / 60 Hz
Power Current: 6.0 A at 100 – 115 V
Power consumption in Standby mode: 25 Watts

Energy:
Max. energy output ( at rated ohms) (Systems) Up to 80 Watt

* Cart not included
