Description

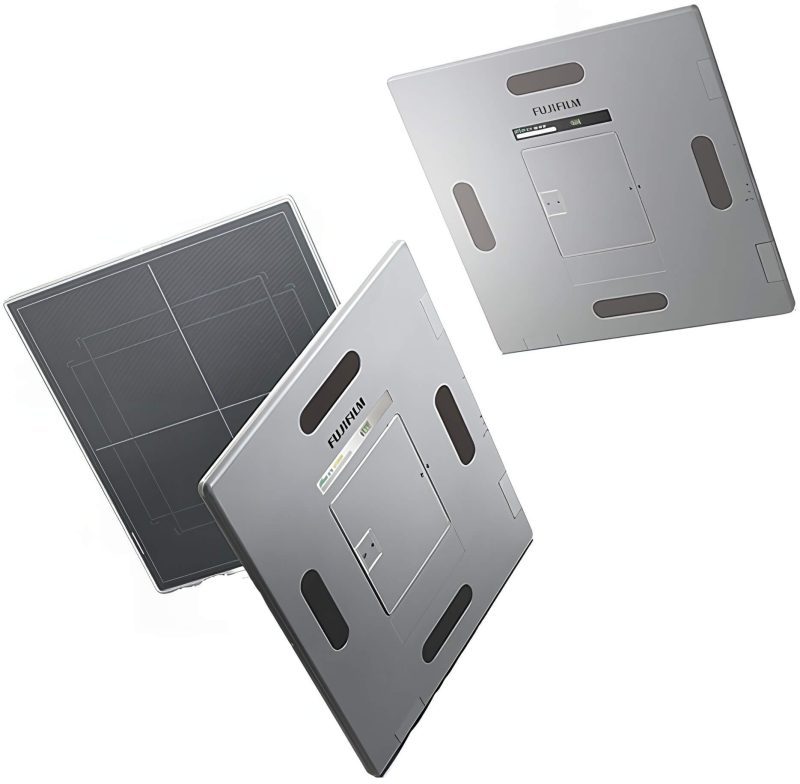

Fuji ES 14C Detector with Battery, Tethered
FDR ES detectors are the next generation of DR retrofit solutions designed with the essential conveniences of Fujifilm image acquisition and design. Light, portable, affordable detectors can optimize your x-ray room for table and free positioning and table top exams with top-of-the-line image quality. There’s also no need to re-work your existing equipment because FDR ES fits existing standard Buckys and holders for simple DR and DR panel retrofits. FDR ES detectors feature 150 micron pixel pitch and a wide 16-bit dynamic range, as well as Fujifilm’s ISS (Irradiated Side Sampling) which provides ultra-sharp imaging with advanced dose efficiency. This exclusive design captures the x-ray image from the incident/patient side of the detector, in contrast to traditional designs which capture the image below the scintillator layer. The result is a reduction in the distance for light to spread, allowing the image to be captured where it’s sharper and stronger as it was always intended.
As a world-leading imaging and information company, Fujifilm is dedicated both to improving image quality and advancing dose lowering technologies and safe healthcare standards for patients. FDR ES is a perfect example. It features engineering innovations which achieve dose efficiency improvements by as much as 30% compared to Fujifilm CR and as much as 20% over comparable DR detector designs, all while delivering exceptional images.
Rounded edges make FDR ES easy to pick up off flat surfaces.
Carbon fiber casings make FDR ES detectors durable and lightweight, with 14×17” weighing only 6.4 lbs.
Sleep mode extends battery life for less frequent battery changes.
Built to protect against incidental sprayed liquid (IPX-3 rating).
Fujifilm detector innovations improve image quality and dose efficiency through advanced processing combined with patented ISS technology and improved circuitry performance.
Model FDR ES C35
Size 14×17
External (inches) 15 x 18 x 0.59
Connection Tethered
Scintillator Csl
Weight (lbs.) 6.4
Pixel Matrix 2836 x 2836
Pixel Pitch 150µ
Cycle Time (sec.) Less than 10.5
Image Display (sec.) 1-2
Add ons or upgrades:
800047618 FDR ES Wireless Capability
800047085 Silex Wireless Access Point
16445006 Fujifilm AP
800045992 USB Cable Kit
800045736 FDR ES Charger Kit
800047201 Additional Power Box
16441426 FDR D-EVO II / FDR ES SE Cable 10m
16441452 FDR D-EVO II / FDR ES SE Cable 20m
800047218 FDR D-EVO II / FDR ES Power Box & Wireless base room
800042278 24×30 Weight Bearing Cap
800020589 14×17 Weight Bearing Cap
800020590 17×17 Weight Bearing Cap
800017801 FDR ES, D-EVO Protector Cap 14×17 Long Dim. Handle
800021582 FDR ES, D-EVO Protector Cap 17×17 with Handle
800042500 FDR ES, D-EVO Protector Cap 14×17 Short Dim. Handle
800047086 SE Cable Clamp
800046834 Universal Tabletop Cassette Holder
800046444 Lateral Detector Holder
800049009 Mobile Holder for DR Detector
800049761 Mobile Trans-Former for FDR D-EVO Detectors
800020589 14×17 Weight Bearing Stand
800020590 17×17 Weight Bearing Stand
800050717 Fixed Height Mobile Table With Clear Top
800050941 Clear Advantage Mobile Stand
800051079 Mobile Shield With Step
800050942 Two Step Platform
800051191 Footstool, Two Step
800051599 Footstool, Single Step
800018075 18×20 2mil Poly Zip Bag Zip Bag
800011829 UPS, Power Conditioner & Surge Protector
