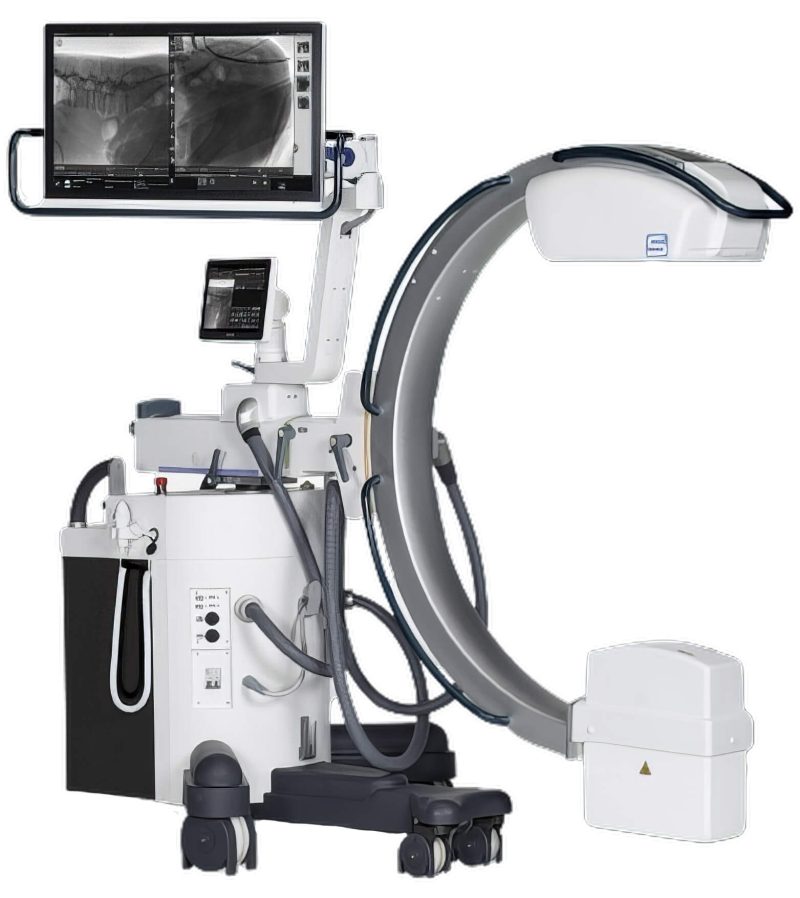

Fuji Persona CS Compact C-arm with 21cm Cesium Flat Panel Digital Detector

Quote only

View List
Want a discount? Ask about our service agreements! With a service agreement, you can get 5% off of any online purchase.
SKU: AM-PERSONA-CS-C Category: Tags: , ,


The Persona CS compact surgical c-arm equipped with a 21cm cesium iodide (CsI) flat panel detector, is an advanced imaging solution engineered for fast, precise positioning and advanced image quality across a broad range of minimally invasive surgical procedures. The Persona CS incorporates multiple exposure modes for ultra-low dose and high quality fluoroscopy plus an optional vascular package (sold separately). Featuring an onboard 27″ 4MP monitor, removable grid and dedicated ‘radiography mode’ for high quality-still
imaging, Persona CS is designed for easy, precise navigation and imaging.

Ergonomics and Weight
• C-Arm Unit with integrated 27″ display: 310kg (683lb)
• Open space: 81cm
• SID: 106cm

Range of motion
• Orbital rotation: 65° underscan to 95° overscan
• Angular rotation: ±275°
• Vertical travel: 450mm
• Wig Wag: ±12°

Rotating Anode X-Ray Tube
• Focus: 0,3mm / 0,6mm
X-Ray generator
• Power: 5kW
• max kV:120kV
• max mA (pulsed fluoroscopy): 50mA
• max mA (radiography mode): 50mA

Exposure Modes
• High quality pulsed fluoroscopy
• Low dose digital radiography (direct to FPD)
• Low dose pulsed fluoroscopy

Flat Panel Detector
• Technology: CsI coupled to TFT matrix aSi
• Pixel pitch: 205 µm
• Useful area: 205mm x 205mm
• Matrix: 1024×1024 pix.
• Frame rate: up to 30 FPS

User Removable Anti-scatter x-ray grid
• Material: Aluminum
• Line rate: 80 Lines/cm ratio 8:1
• Focal Distance: 100cm

X-Ray Control
• Dual control x-ray handswitch
• Dual Pedal Footswitch with selectable functions

C-Arm Console and Computer system
• Computer Processor Intel i7-8700 3,2GHz 6 core Coffee Lake
• Memory 16GB RAM,SSD 512GB PCIe NVMe (x2)
• Operating System Windows 10 IoT Enterprise 2019 LTSC (ESD) ENG

Onboard Monitor
• Multi-Touch, projected capacitance touchscreen, LCD TFT backlight
• Size, Resolution: 27″, 4MP
• Viewing Angle: 178°
• Brightness: 350Cd/m
• Contrast: 1000:1
• Display height: 186-144cm
• Display rotation: ±180°
Operator control panel
• Multi-Touch , Color 12,5″ LCD panel
• Rotation: ±135°
• Resolution: 1920×1080 pix

DICOM Compatibility
• Dicom Modality Worklist
• Dicom Store
• Dicom Print
• Dicmo MPPS
• Dicom RDSR Structured
Dose Report
• Dicom Media Export, USB

Warranty, One Year Fuji Parts and Labor
Warranty for Fuji Persona C-arm System
(X-ray Tube prorated) One Year Parts and Labor Warranty provided directly by Fuji

Installation and Set-up of Fuji C-arm

Two (2) days onsite Clinical Consultant In-Service Training Support
Additional Options:
Laser Localizer – Fuji Persona CS 21cm
Detector Zero dose centering with laser localizers on X-ray tube and flat panel detector
DSA / Vascular is available as a software add-on option
Add $5000.00
