Hologic Floroscan InSight FD Mini C-arm

Request Quote

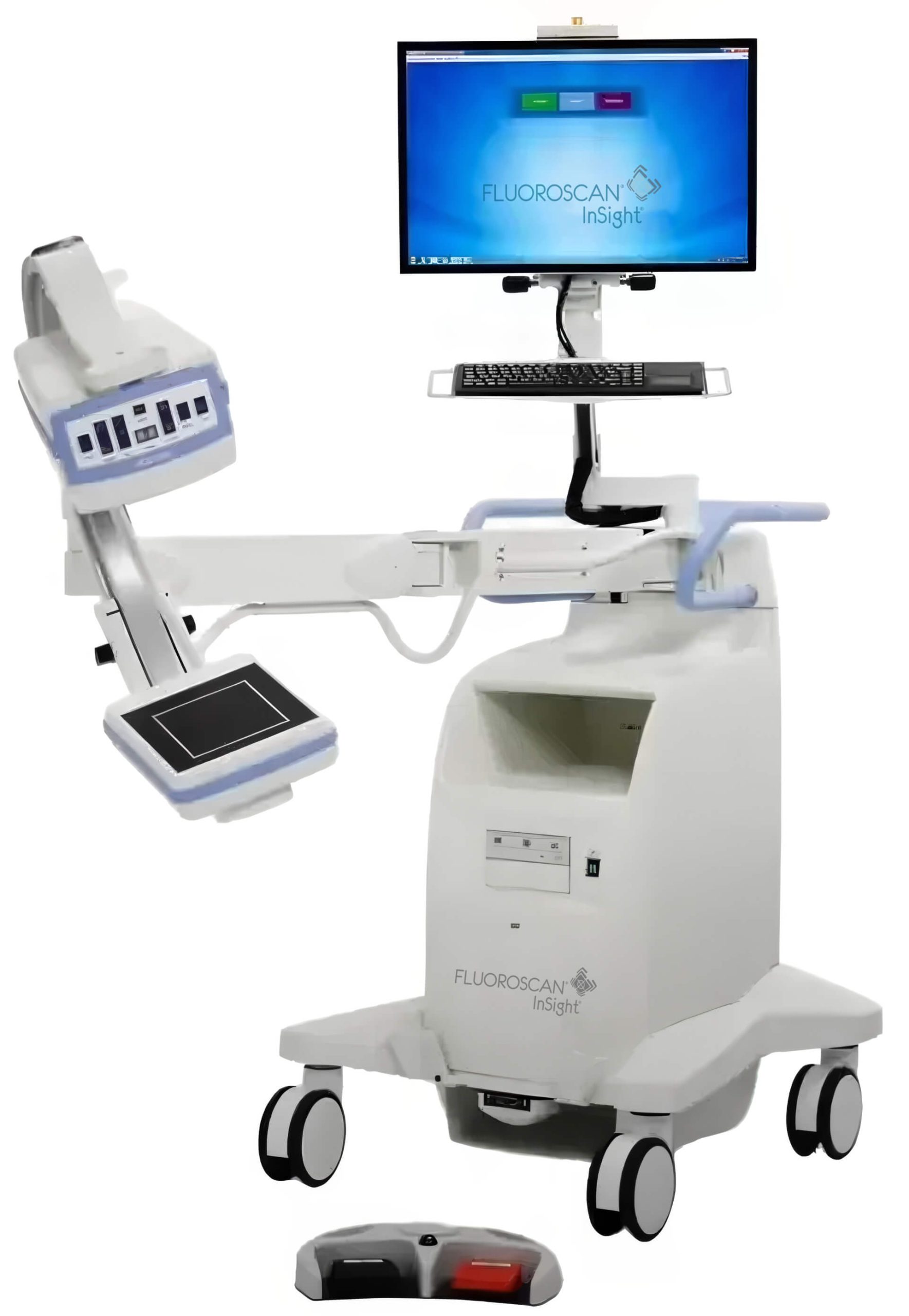

The Hologic Floroscan InSight FD Mini C-arm is a sophisticated imaging device designed to enhance surgical precision and ease of use. Featuring a dual field flat detector with a thin profile, this mini C-arm offers exceptional maneuverability, with a 90-degree rotation on its axis to accommodate various procedural requirements. Its high-speed automatic beam collimator tracking, combined with a forward-mounted tube-head, ensures deep C-arm access and optimal imaging angles. The system operates within a power range of 40-75 KVp and 20-100 micro Amps, delivering ultra-fine image resolution thanks to a 45-micron focal spot X-ray source, automatic dose rate calibration, and advanced image processing capabilities. A 20” high-definition touch-sensitive LCD monitor provides ergonomically adjustable viewing, allowing for up to 18 simultaneous images in a customizable mosaic display. The C-arm features full 120-degree orbital rotation with locking capability and integrates a laser light with customizable settings. Advanced image manipulation tools, including brightness and contrast controls, real-time noise suppression, and edge enhancement, are accessible via the tube-head, touch screen, or keyboard. The system supports continuous fluoro, snap-shot imaging, and cine imaging with instant playback. Its robust storage and networking capabilities allow for easy image import/export via USB and CD/DVD, with optional full DICOM network functionality and a substantial 8,000 image storage capacity. Surgeon-friendly features include customizable physician preference configurations, a versatile alphanumeric keyboard, and a triple-function foot switch available in wireless or wired options. Despite its comprehensive offerings, the warranty does not cover glassware, emphasizing the need for careful handling. Overall, the Hologic Insight FD Mini C-arm stands out for its advanced technology, user-friendly design, and extensive connectivity options, making it an invaluable tool in modern surgical environments.

To submit a quote request for this product please fill out the form below.
Product Quote Request
Name
Name
Quantity *

SKU: AM-INSIGHT-FD Category: Tags: , , , ,

Description

Hologic Floroscan InSight FD Mini C-arm

Features/Specs:

  • Flat Detector: Thin profile, dual field
  • Flat Detector axis rotation +/- 90 degrees
  • High speed automatic beam collimator tracking
  • Forward mounted tube-head: Deep C-arm access
  • Power Range: 40-75 KVp, and 20-100 micro Amps
  • Ultra fine image resolution with 45 micron focal spot X-ray source Automatic Dose Rate with auto calibration and Image Processing
  • 20” LCD / High Definition touch-sensitive flat screen monitor: Ergo-scopic monitor: Tilts and extends 16” for proper angle visualization Mosaic multi-format display, user preference 1-18 simultaneous images Full 120 degree orbital rotation C-arm with locking capability
  • Laser light with full-time on or 60 second timer
  • Advanced Image manipulation:
  • Brightness & contrast control via tube-head, touch screen or keyboard Real-time noise suppression and edge enhancement
  • Touch-screen image rotate, mirroring, pan, zoom & reverse video Customizable physician preference image acquisition
  • Continuous fluoro and Snap-shot imaging
  • Cine (Digital video) imaging with instant playback
  • Easy-access, Sterile field tube-head mounted controls
  • Comprehensive storage and networking
  • Convenient USB and CD/DVD for image import/export
  • Full DICOM network capability (Optional)
  • 8,000 image storage capacity with auto delete function
  • “Mark as protected” image/case study protection
  • DAP (Dose Area Product) report, standard
  • Surgeon Friendly Ease of Use Features:
  • Physician preference definable configurations
  • Alphanumeric keyboard with hot-key operation
  • Triple function configurable foot switch (Wireless or wired)
  • InSight Wireless Foot Switch – Infrared wireless foot switch Insight-DICOM-Unity – Unity Extended Connectivity Software
  • Unity extended Connectivity S/W for Insight includes:
  • Modality Worklist for Insight
  • DICOM Store/Send for Insight
  • DICOM Print for Insight

For Warranty: NO GLASSWARE COVERAGE INCLUDED

Additional information

Condition

Refurbished
