Description

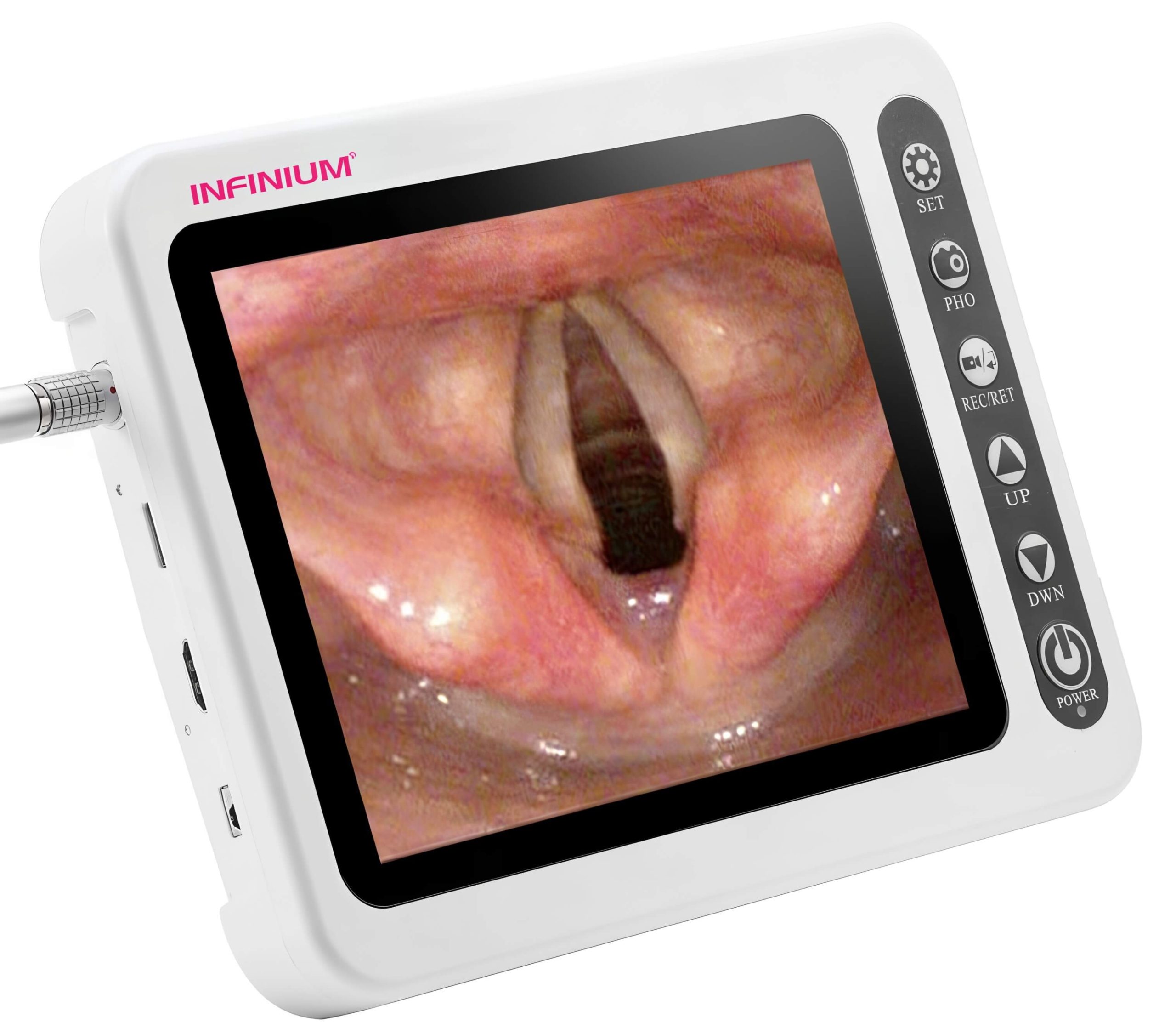

The Infinium® ClearVue™ VLXL video laryngoscope adopts state-of-the-art image technology and possesses the advantage of a 2.0-megapixel full view camera with 8-inch high-resolution monitor. The ClearVue™ features a rechargeable li-ion battery for mobile use. The HD optics offer a unique anti-fog and high-resolution image.
Comprehensive HD Video Laryngoscope
The Infinium® ClearVue™ VLXL video laryngoscope adopts state-of-the-art image technology and possesses the advantage of a 2.0-megapixel full view camera with 8-inch high-resolution monitor. The ClearVue™ features a rechargeable li-ion battery for mobile use. The HD optics offer a unique anti-fog and high-resolution image. The overall design is compact and ergonomic. A high-resolution view of the glottis will enable the clinician’s first-attempt success while minimizing any chance of a complication during the intubation process.
ClearVue™ VLXL Features:
- High Resolution 8 Inch Screen
- Rigid Steel Construction of Hand Pieces
- Quick installation and Removal of Blades
- Quick Shot Camera Button for Photo and Video Recording
- 4 GB Data Storage (Approx. 80 Minutes of Stored Video)
- Use on Battery or AC Power
- Optional ergonomic custom rolling stand
- Complete Blade Offerings
- Reusable Blade Model
- Macintosh Blades Size 1,2,3,4,5 Available
- Macintosh Curved “D” Blades Size 1,2,3,4,5 Available
- Miller Blades Size 0,1 available
- The ClearVue™ Comes standard with Macintosh Size 2,3, and 4 Blades
- Screen Reinforced with Anti-Shatter Protection
- Light Weight
- Long Lasting Rechargeable Li-ion Battery
- High-Definition
- 8 Inch HD Display
- Anti-Fog Optics Lens
- 2.0 Mega Pixel Camera With Video
Display:
- Size: 8-inch full view
- Screen: LCD; LED scratch-resistant anti-glare screen
- Resolution: 1024 x 786
- Video Refresh Rate: 30FPS
Handle:
- ABS material: Comfortable ergonomic short handle design
Video / Still Camera:
- Resolution: 2.0 MP
- Field Angle: 66º
- Illumination: ≥800LUX
- Heated anti-fog camera feature
- One-click image capture
- 4G internal memory card
- USB connection to upload images and video
Battery:
- Type: Rechargeable lithium-ion
- Max battery life: 2 hrs
- Voltage: 3.7V
- Capacity: 3200mAh
- Charging Time: 4 hrs
Power Adapter:
- Input: 100-250V, 50/60Hz
Transport & Storage:
- Temperature: -10ºc to +45ºc
- Humidity: ≤93º
- AP: 500hPa to 1060hPa
Working Conditions:
- Temperature: +5ºc to +40ºc
- Humidity: 30º to 85º
- AP: 700hPa to 1060hPa
Mobile Stand sold separately – PN: 267.300.0011
