InnoVet Select HF 20kHz – Veterinary X-Ray
Request Quote

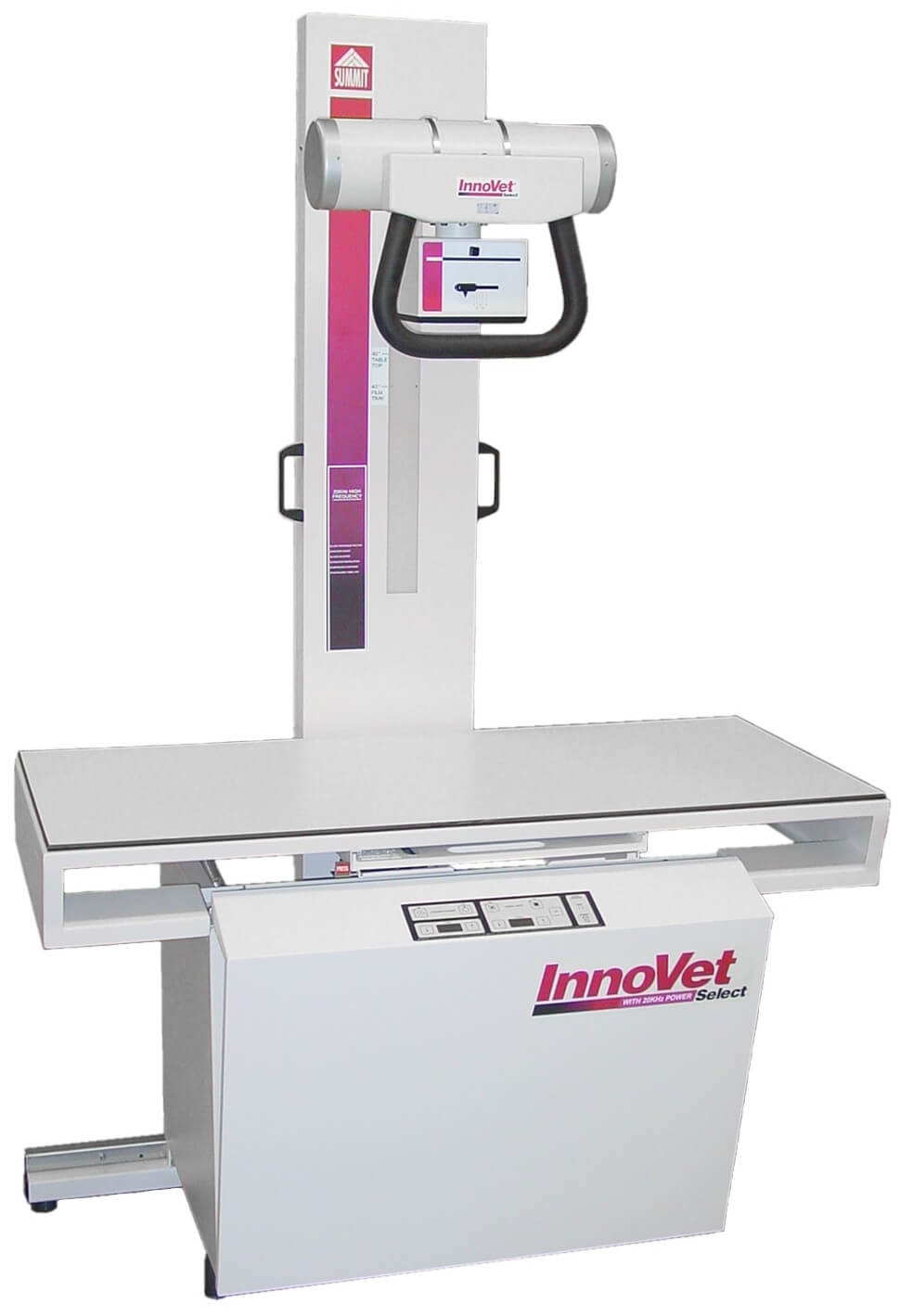

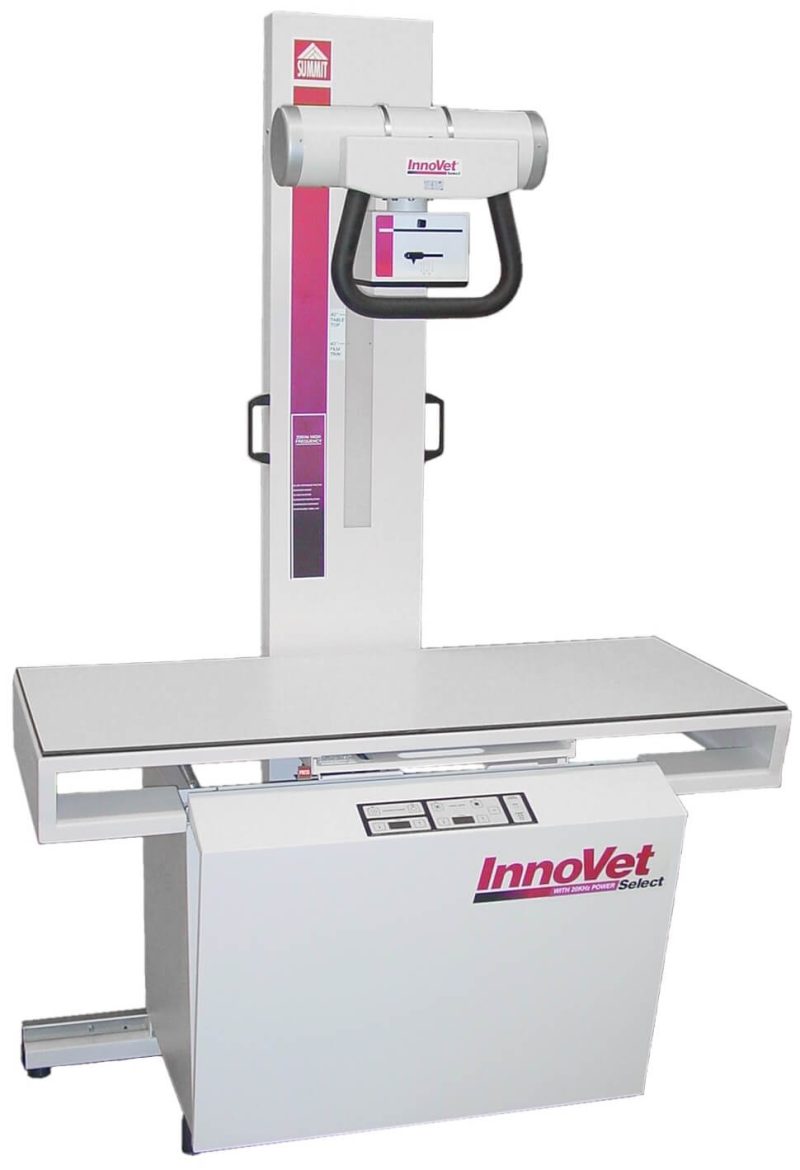

The InnoVet Select HF 20kHz Veterinary X-Ray is a high-performance, 20 kHz high-frequency radiography system designed for demanding veterinary imaging. It features a 30 kW high-frequency generator with two-point technique selection (kVp 40–125 in 1 kV increments and mA stations of 50s, 100s, 100L, 300L), digital readouts for kVp, mA, and mAs, and built-in self-diagnostics with tube protection. The tilt-out control panel offers adjustable exposure signals and an automatic generator shut-off for safety, while the enclosed radiographic table provides a sturdy 53″ x 24″ work surface and integrated tubestand with an 8:1 grid (103 LPI) for optimal image quality. An animal restraining device, angulation dial, deluxe operator handgrips, and tubestand handles enhance positioning efficiency. The X-ray tube delivers 1.0–2.0 mm F.S. with 140,000 HU and 90° horns, powered by 12 ft high-voltage cables with federal terminations. Manual collimation with light field, adjustable field light on-time (30, 60, 90, or 120 seconds), and radiation leakage well below federal standards for human medical systems make this system a robust choice for veterinary practices seeking precise, reliable diagnostics.
