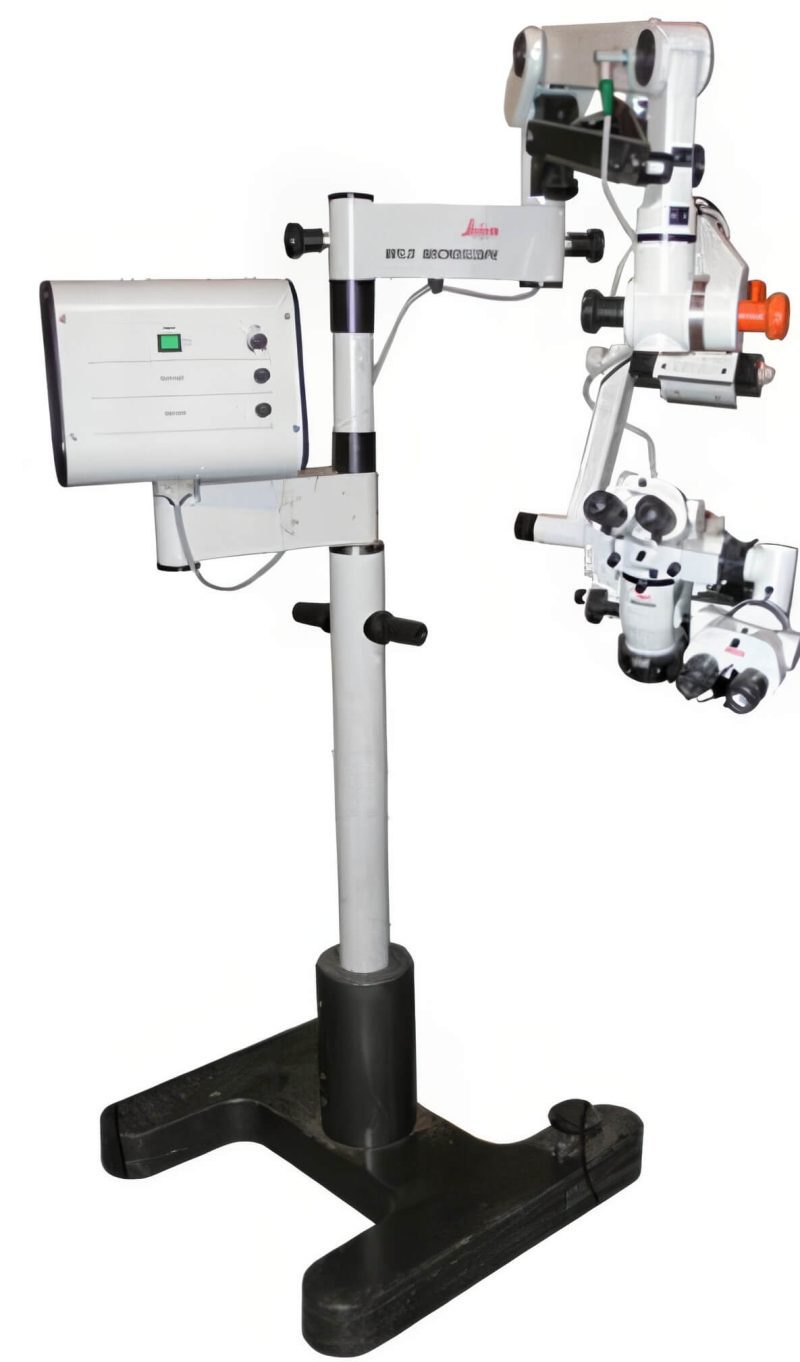

Leica Wild M691 Microscope

Request Quote

The Leica Wild M691 Microscope is an exceptional multi-purpose tool ideal for medical facilities requiring versatility and precision, particularly in eye and hand surgeries. Renowned for its outstanding optical clarity and red-reflex capabilities, the M691 ensures superior performance during delicate procedures. Key features include X/Y control with auto-centering, an inclinable 0-180° binocular, and motorized focus and zoom, all of which are easily managed via an electrically controlled footswitch. The device boasts a continuous magnification range of 7x to 36x, facilitated by high-end optics with a significant depth of field. It is equipped with halogen illumination, providing a consistent light source, and features a dual brake system in its base for stability. The microscope is also designed with assistant binoculars and a beam splitter, enhancing collaborative surgical efforts. The Leica Wild M691 stands out for its ergonomic design, including a binocular doctor fixed at a 45-degree angle, and adaptable technology, such as the motorized focus with a 50mm travel range, making it a reliable and efficient choice for modern surgical settings.

To submit a quote request for this product please fill out the form below.
Product Quote Request
Name
Name
Quantity *

SKU: AM-LEICAM691 Category: Tags: ,

Description

Leica Wild M691 Microscope

The Leica Wild M691 is great for those facilities that need a great multi-purpose option. The M691 includes all of the superb optical clarity and red-reflex necessary for eye surgery as well as the cross table accessories for hand surgery.

Leica M691 Surgical Microscope Features:

  • X/Y Control with auto center
  • Inclinable 0-180° binocular
  • Eyepieces zoom 10x/21
  • Motorized focus/zoom
  • Halogen illumination
  • Assistant binoculars
  • Beam splitter
  • Microscope electrically controlled via footswitch
  • Electrically adjustable magnification (zoom) and focus (focus)
  • Total magnification: continuously adjustable from 7x to 36x
  • High-end optics with high depth of field!
  • Main arm and manually adjustable spring
  • Binocular doctor fixed angle of 45 degrees
  • Halogen Lighting: 50 W
  • The dual brake disposed in the base of the microscope

Leica M691 Surgical Microscope Specifications:

  • Binocular: 0-180 Inclinable; f=170mm
  • Other options: 10-50 degree; f=170mm
  • Objective Lens: 175mm, 200mm with red reflex enhancer
  • Magnification: Motorized 1:5
  • Focus: Motorized with 50 mm travel
  • Eyepieces: 10 x 21 Widefield
  • Pupillary Distance: 55 to 75 mm
  • Filter: Standard UV
  • Lightsource: Halogen 12V 50W
  • Illuminated Field: 65mm
  • Power Source: 110 to 240V; 50 – 60 Hz

Additional information

Condition

Reconditioned
