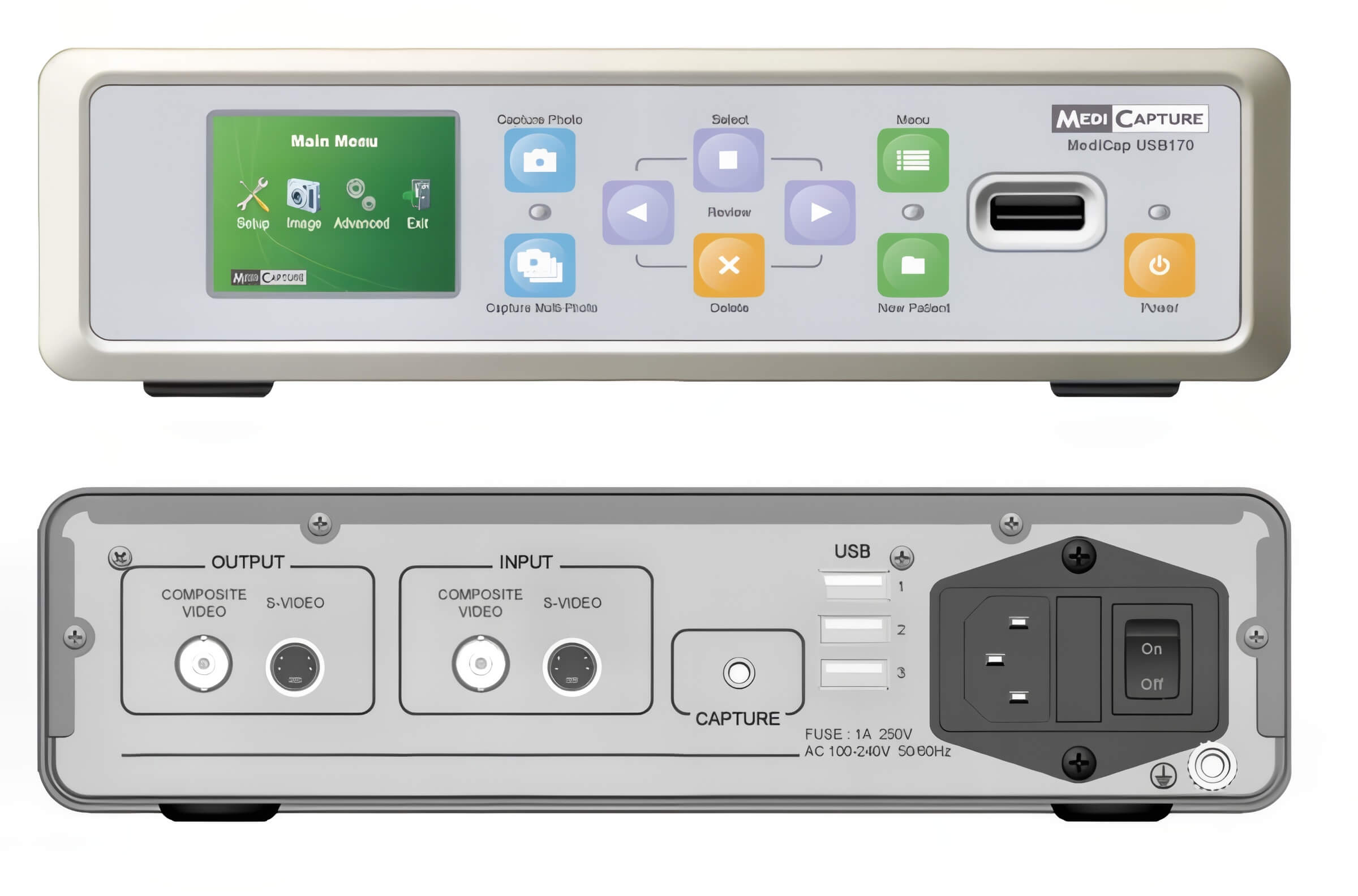

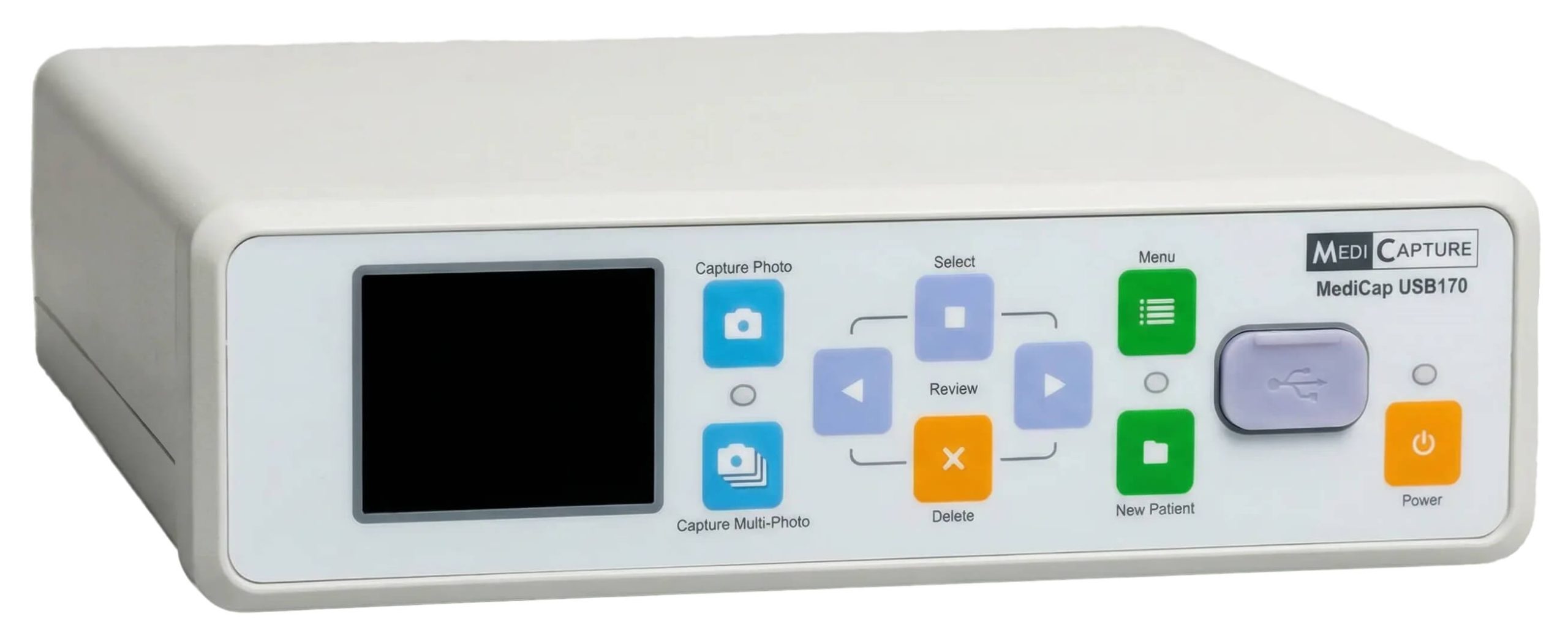

MediCapture MediCap USB170 Medical Image Recorder
$3,261.75
The MediCapture MediCap USB170 is the medical industry’s most user-friendly and comprehensive image recording solution, designed to simplify the process of capturing and storing high-quality medical images. This rugged device records still images in standard definition directly from medical video sources, saving them effortlessly to a USB flash drive included in the package, or to an optional hard drive. Its durable metal case with a high-impact plastic faceplate houses a 1/2-inch LCD monitor for video confirmation—not for diagnosis—along with sealed, fluid-resistant membrane buttons for easy operation. Supporting multiple video input/output formats such as PAL, NTSC, S-video, and composite BNC connections, it captures images in popular formats including PG, TIF, PNG, and DICOM, with resolutions up to 1024 x 768 pixels. Measuring approximately 9.5″ x 7.9″ x 2.5″ and weighing just over 3 pounds, the MediCap USB170 offers high-speed USB 2.0 connectivity with multiple front and rear ports, making it highly versatile and portable. Certified by CE, UL, IEC, PSE, and CSA standards, this system provides healthcare professionals with a reliable, efficient, and easy solution for capturing, storing, and reviewing medical images in various clinical environments.
Description
MediCapture MediCap USB170 Medical Image Recorder
The MediCap USB170 is the medical industry’s easiest full- featured image recording solution. Your images are saved directly to a USB flash drive or optional hard drive – a much simpler method than trying to capture images with a DVD recorder.
Includes: MediCapture USB170, USB Flash Drive, Power Cable, Video Cables, User Guide.
Features and Specs:
- Medical Still Image Recorder – Records Still Images in Standard Definition from Medical Video Sources Records to USB flash drive (included) or USB hard drive (not included)
- Rugged Metal Case with High-impact Plastic Faceplate
- Monitor: 1/2 in. LCD (for video confirmation only; not for diagnosis)
- Buttons: Sealed Membrane, Fluid Resistant
- Video In/Out: PAL or NTSC, S-video or Composite BNC Connections
- Image Formats: PG, TIF, PNG, DICOM
- Image Size: 1024 x 768, 800 x 600, 640 x 480 pixels
- USB Support: USB2.0, High Speed, 1 Front Connector, 3 Rear Connectors
- Mechanical: Size: 240 x 200 x 63mm / 9.5 x 7.9 x 2.5 in.
- Weight: 1.7kg / 3lb 12oz
- Environmental: Storage: -40° to +85° C, Operating: -20° to +40° C
- Power: AC 100-240V 50/60Hz 20W
- 3-Prong AC Jack
- Certifications: CE 93/42/EEC, UL 60601-1, IEC 60601-1, IEC 60601-1-2, PSE, CSA C22.2 N
