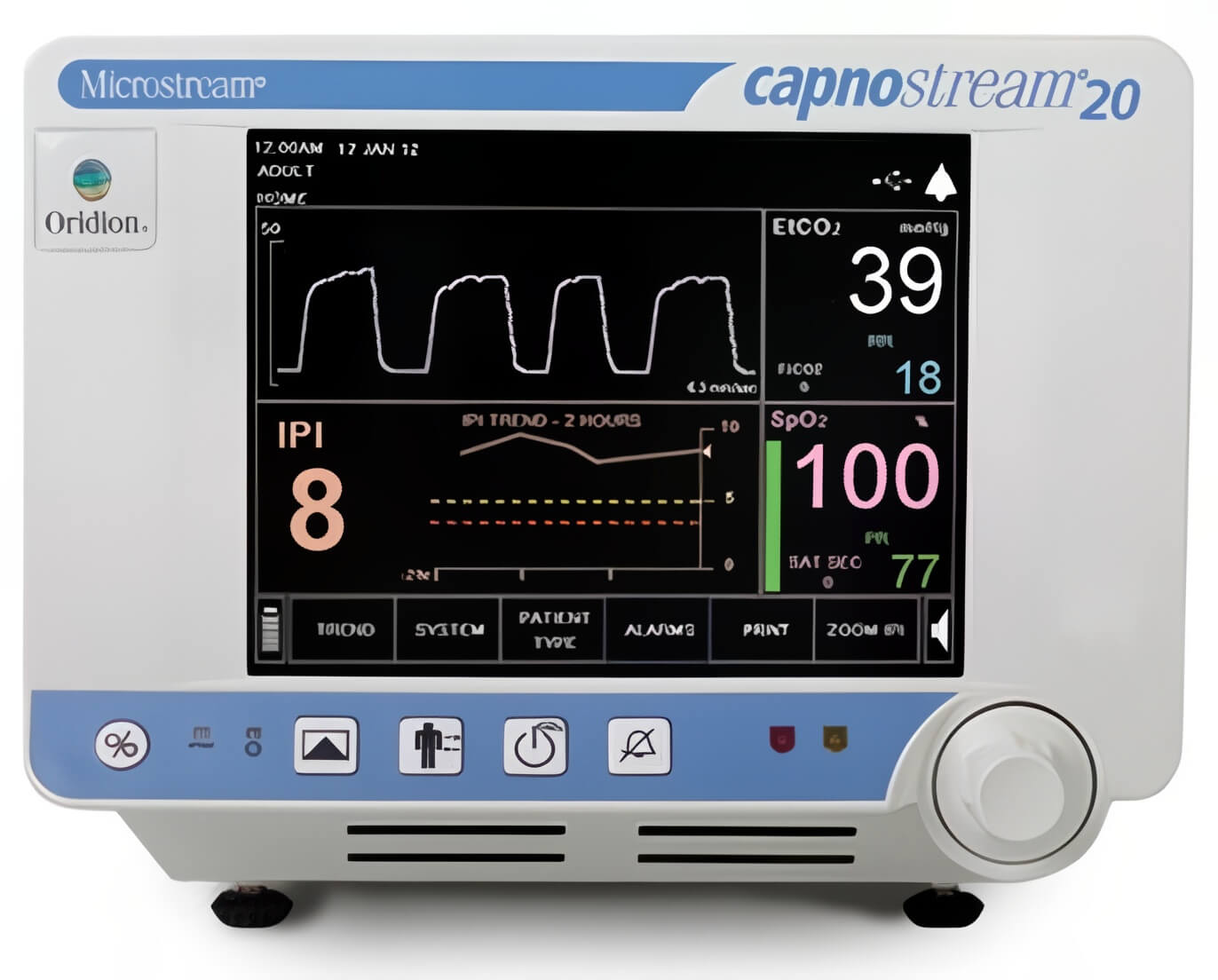

Medtronic Capnostream 20p Beside Monitor

Medtronic Capnostream 20p Beside Monitor

$2,795.00

The Medtronic Capnostream 20p Beside Monitor is a user-friendly, portable pulmonary and vital signs monitoring device designed for versatile clinical applications across various settings. Featuring an intuitive rotary dial for easy navigation, it non-invasively measures exhaled carbon dioxide (EtCO₂) and SpO₂, providing accurate and reliable assessments for all patient types. Its large, bright color display offers clear visualization of waveforms and trends, with capabilities to review up to 72 hours of data, transfer patient information via USB, and utilize in laboratory environments. The monitor includes a thermal printer for case recording, automatically switches to internal battery power during outages, and supports comprehensive data transfer via RS-232 port. With specifications supporting precise CO₂ and SpO₂ measurements, rapid calibration, and a 2.5-hour battery life, the Capnostream 20p is a reliable tool for continuous respiratory monitoring in clinical, procedural, and laboratory settings.

CURRENT LEAD TIME: 15-20 Business Days

Please note: Lead time estimate is for a single quantity order. Contact for lead time for multiple quantities.

SKU: AM-CS-20P Category: Patient Monitors Tags: Bedside Monitor, Medtronic, Refurbished Brand: Medtronic

Description
Additional information

Description

Medtronic Capnostream 20p Beside Monitor

Oridion Capnostream 20P with Printer

Features:

Easy to use rotary dial selector for simple navigation of the device.
Non-invasive method for monitoring the level of carbon dioxide in exhaled breath (EtCO2) provides accurate and reliable assessments for all patient types.
Large, bright color display with an easy-to-use, knob-navigated, flat-menu structure
Providing MIcrostreamCO2 and SpO2 measurements.
Transfer patient data to USB flash memory devices
72-hour trends to review
Can use in other laboratory environments
Case recording to help organize patient files.
RS-232 port for data transfer.
If power is lost , automatically switched to the internal battery pack for power

Specifications:

Power:Input Voltage: 100 – 240 VAC, 50/60 Hz.
Power: Fuses: Two F3.15A 250 Volt.
Power:Input Power: 90 VA.
Battery:Battery Type: 14.8 V, 4Ah Lithium-Ion.
Battery:Battery Operation: 2.5 hours (without thermal recorder).
Battery: Battery Charging Time: 100% in 12 hours.
Screen: 6.4″ (162 mm) color TFT display.
Screen Resolution: 640 x 480 pixels.
Trace Speed: 3.0, 6.3, 12.5, and 25 mm / second.
Waveform Sampling Rate: 75.7 samples / second for SpO2; 20 samples / second for Capnography.
Trend Storage: 8640 point storage.
CO2, EtCO2, FiCO2 Range: 0 – 99 mmHg.
CO2 Waveform Resolution: 0.1 mmHg.
EtCO2, FiCO2 Resolution: 1 mmHg.
CO2 Accuracy: 0 – 38 mmHg: ± 2 mmHg.
CO2 Accuracy: 39 – 99 mmHg: ± 5% of reading + 0.08% for every 1 mmHg above 38 mmHg.
Respiration Rate Accuracy: 0 – 70 bpm: ± 1 bpm.
Respiration Rate Accuracy:71 – 120 bpm: ± 2 bpm.
Respiration Rate Accuracy :121 – 150 bpm: ± 3 bpm.
Flow Rate: 50 ml/minute, flow measured by volume.
Waveform Sampling: 20 samples / second.
Response Time: 2.95 seconds (typical).
Initialization Time: 40 seconds (typical).
Calibration Interval: Initially calibrate after 1,200 operating hours, then once a year or after 4,000 operating hours, whichever comes first.
SpO2 Measurement Range: 1 – 100%.
SpO2 Range:Adult Mode 0 – 69%: Unspecified.
SpO2 Range: Adult Mode 70 – 100%: ± 2 digits.
SpO2 Range: Neonate Mode 0 – 69%: Unspecified.
SpO2 Range: Neonate Mode 70 – 100%: ± 3 digits.
Pulse Rate Range: 25 – 240 bpm.

Additional information

Condition	Refurbished
