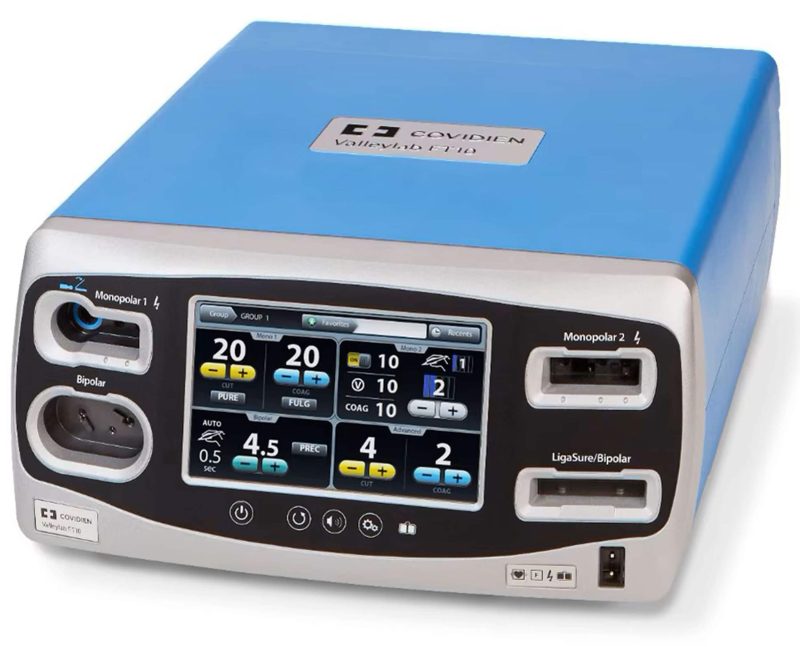

Refurbished Medtronic Covidien Valleylab FT10 Energy Platform (VLFT10GEN)
The Medtronic Covidien Valleylab™ FT10 Energy Platform (OEM Model: VLFT10GEN) is a high-frequency electrosurgical generator designed to power a full portfolio of energy-based devices, including monopolar, bipolar, and advanced LigaSure™ vessel sealing instruments.
Below are the detailed features and technical specifications for the VLFT10GEN.
Core Technologies & Features
- TissueFect™ Sensing Technology: The platform’s hallmark feature. It monitors changes in tissue impedance 434,000 times per second—over 100 times faster than the previous ForceTriad™ platform. This allows the generator to adjust energy delivery in real-time to maintain consistent tissue effects.
- Faster Performance:
- LigaSure™ Sealing: Up to 50% faster sealing times compared to older models (typically 1–4 seconds).
- Lower Jaw Temperature: Optimized energy cycles result in lower instrument jaw temperatures, reducing thermal spread.
- Autobipolar Activation: Features a faster activation time for more responsive bipolar performance.
- User Interface: A 7.0-inch LCD touchscreen with a simplified, intuitive layout divided into four main sections for easy navigation and setting adjustments.
- Smart Connectors: Automatically detects coded instruments and configures the energy settings instantly (“plug and play”).
- Shared Coagulation Mode: Allows two surgeons to work simultaneously on a single patient using a single generator.
Technical Specifications
1. Physical Specs
- Dimensions: 17.8 cm (7.0 in) H × 36.8 cm (14.5 in) W × 46.2 cm (18.2 in) D
- Weight: 10.1 kg (22.3 lbs)
- Enclosure: Magnesium
- Cooling: Natural convection and fan
2. Power & Electrical
- Input Power:
- 100–127 VAC / 220–240 VAC
- Line Frequency: 47–63 Hz
- Max VA: 950 VA
- Duty Cycle: Capable of operating at a 25% duty cycle (10 seconds active / 30 seconds inactive) for up to 4 hours.
- Internal Storage: 8 GB memory for calibration and statistical data.
3. Operating Modes & Output
| Mode | Power Range | Peak Voltage | Description |
|---|---|---|---|
| Monopolar Cut (Pure) | 1–300 W | 1287 V | Clean division with minimal hemostasis. |
| Monopolar Cut (Blend) | 1–200 W | 2178 V | Cutting with moderate hemostasis. |
| Valleylab™ Mode | 5–85 W | 2783 V | Unique blend of hemostasis and division with reduced thermal spread. |
| Coag (Spray) | 1–120 W | 3933 V | Non-contact coagulation over wide areas. |
| Coag (Fulgurate) | 1–120 W | 3449 V | Standard contact coagulation. |
| Coag (Soft) | 1–120 W | 264 V | Deep desiccation at low voltage. |
| Bipolar (Macro) | 1–100 W | 530 V | For aggressive bipolar cutting/coagulation. |
| LigaSure™ | 1–350 W | 244 V | Advanced vessel sealing up to 7mm vessels. |
4. Connectivity & Integration
- Connector Ports:
- 1 Standard Monopolar (Universal Footing Port)
- 1 Advanced Monopolar
- 1 Bipolar
- 1 LigaSure™ / Bipolar receptacle
- Data Ports: Ethernet (10/100/1000BASE-T) for software updates and USB port for service and Cardioblate™ graph exports.
- System Software: Runs on a Linux-based operating system; software is upgradeable to ensure the platform can support future Medtronic instruments.
Mounting Options
- Universal Cart For ValleyLab ESUs
- Operating Room Booms
- Standard flat surfaces (tabletops or cart tops)
Includes x2 footpedals – monopolar and bipolar
12 Month Warranty
