Description

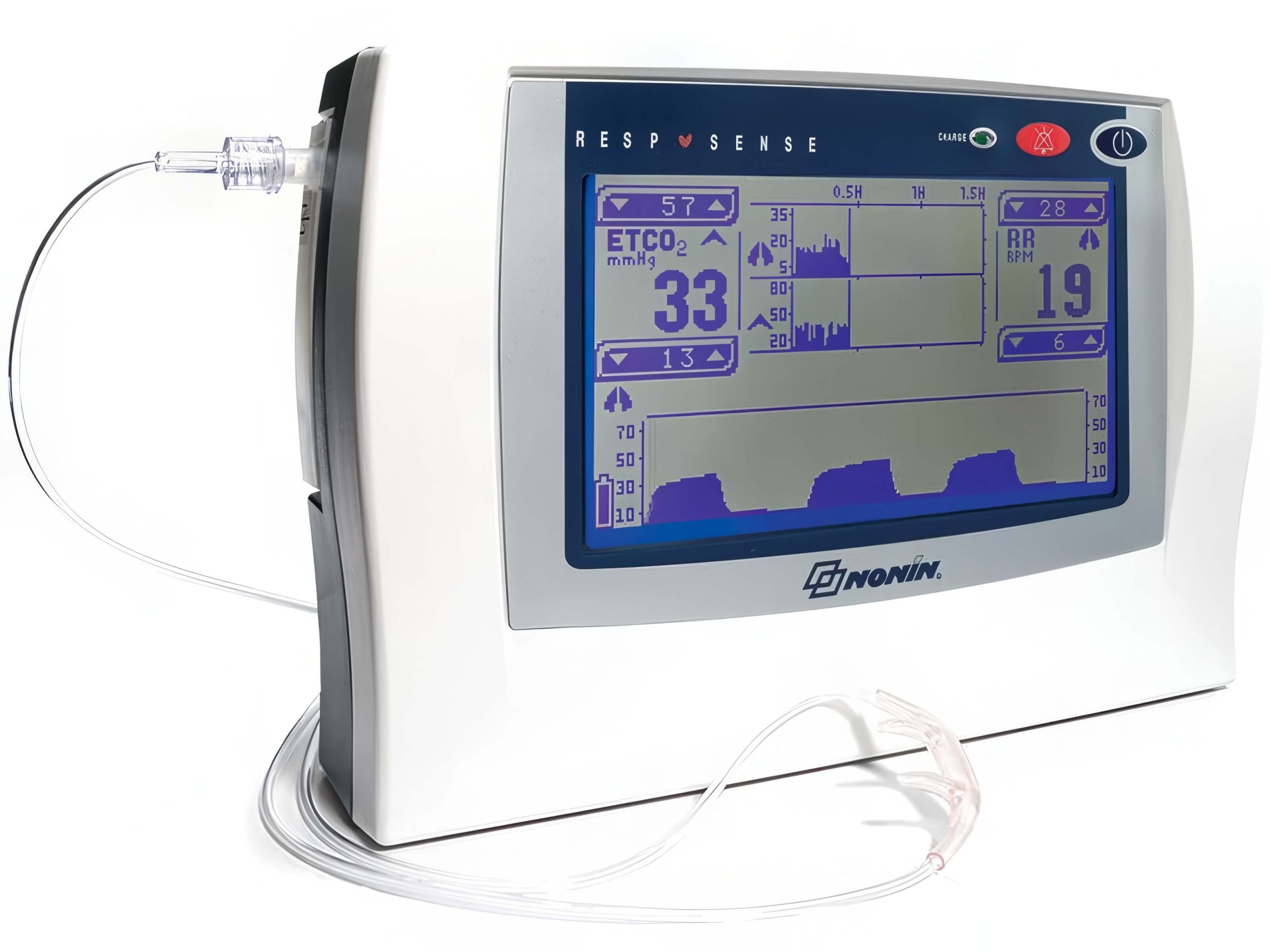

Nonin Respsense Capnography EtCO2 Monitor
Features Nonin sidestream EtCO2technology for both intubated and non-intubated patients in a wide range of clinical settings
Offers 1.5 hours of tracked trending for EtCO2 and respiration rate
Suitable for use with patients in hospitals, sleep labs, homecare, and resuscitation
Multiple configuration options enable language, unit of measure, and alarm selection
Monitoring the carbon dioxide concentrations (CO2) in the respiratory gases of mechanically ventilated patients is important to ensure proper ventilation. Patients who are not monitored have an increased risk of developing life-threatening conditions.
Capnography monitors from Nonin Medical provide a clear and accurate real-time feedback on how patients are breathing or ventilated. Ideal for spot check and continuous EtCO2monitoring.
Features and Specs:
- Capnography Specifications:
- Respiration Range: 3 to 60 respirations/minute
- Update Frequency: Once every breath (No Breath alarm after 25 seconds)
- Respiration Accuracy:
- 3 to 50 respirations/min ± 2
- 51 to 60 respirations/min ± 3
- EtCO2/CO2 Range: 0 to 9.9 kPa or 0 to 99 mmHg
- EtCO2/CO2 Accuracy:
- ±0.2 kPa / ±2 mmHg, +8% of readingâ€
- 540 – 795 mmHg
- (EtCO2/CO2 reading reaches its steady state accuracy 10 minutes after power up)
- Update Frequency: Once every breath (No Breath alarm after 25 seconds)
- Sampling Rate: 4 Hz (4 times per second)
- Total System Response Time: 4 seconds (includes delay time and rise time)
- Drift of Measurement: Within CO2 accuracy specifications for 6 hours of continuous monitoring
- Measurement: Automatic barometric pressure compensation and CO2 temperature compensation
Unit does not include SPO2
Warranty: 1 Year
