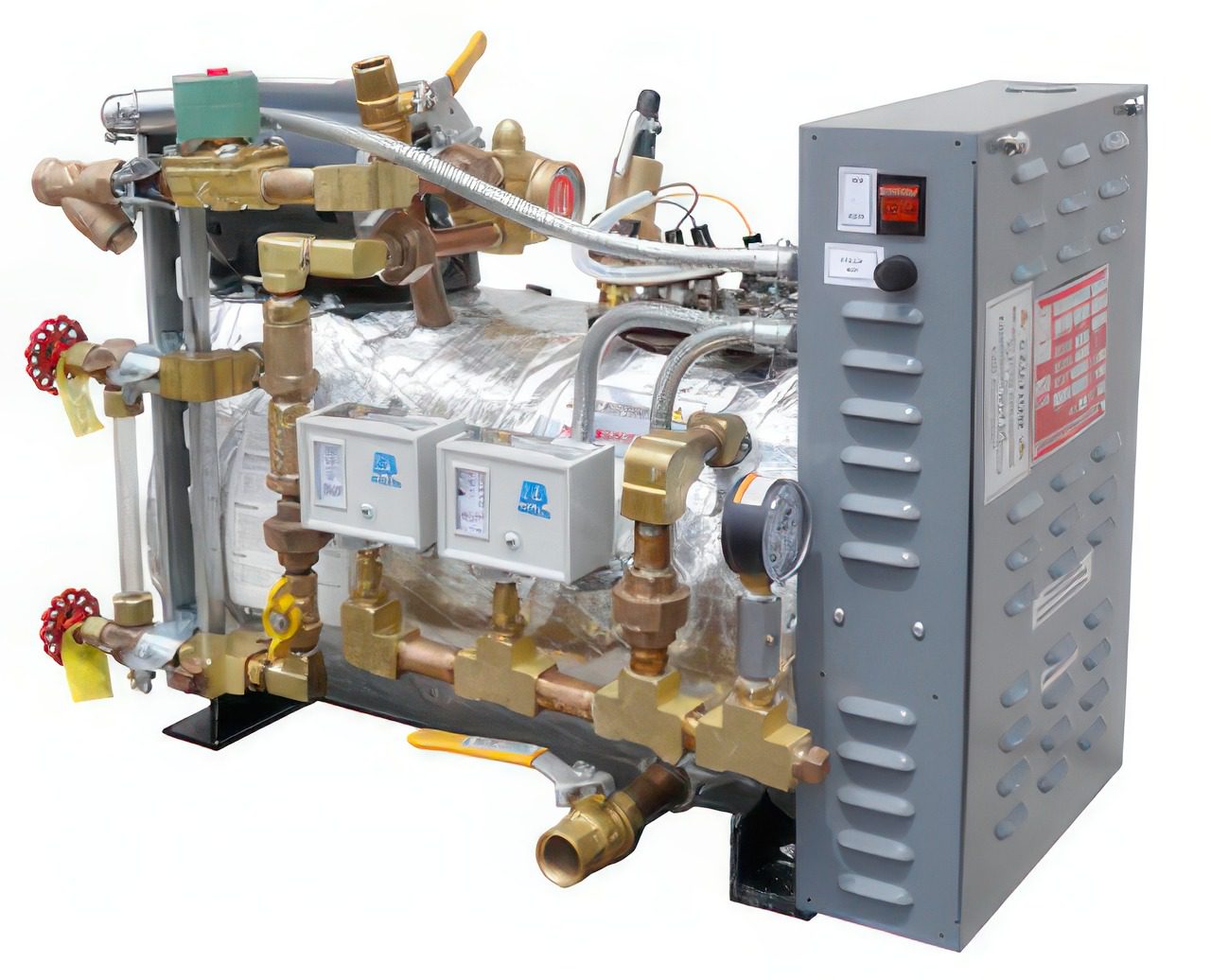

Pacific Steam 30kw 480V steam Generator

Request Quote

• Specially designed for quick replacement & easier service
• Two 3-1/8” diameter hand holes for easy clean-up • 4.5”x4.5” flange mount single heating element
• Separate on-off switch on the cabinet
• Innovative probe system
• External piping furnished in brass or bronze
• Includes solenoid valve on water inlet

To submit a quote request for this product please fill out the form below.
Product Quote Request
Name
Name
Quantity *

SKU: AM-MAB-30-480 Category: Tags: ,

Description

• Specially designed for quick replacement & easier service
• Two 3-1/8” diameter hand holes for easy clean-up • 4.5”x4.5” flange mount single heating element
• Separate on-off switch on the cabinet
• Innovative probe system
• External piping furnished in brass or bronze
• Includes solenoid valve on water inlet

Output: 104 lb/hr
HP: 3.0
• Operating Pressure: 80 psig (323°F)
• Water Feed Pump Rating:
1/4HP, 120V, 1ph, 25gpm @ 100 psi
• Connection sizes: 1/2” steam outlet, 1/2” water inlet, 3/4” drain/blowdown valve
• Net Weight: 160 lbs
• Dimensions: 19” x 25” x 21”H

Pacific Steam Equipment boilers are built in strict accordance with ASME requirements with all operations inspected by the National Board of Boiler and Pressure Vessel Authorized Inspectors.

Additional information

Condition

New
