Description

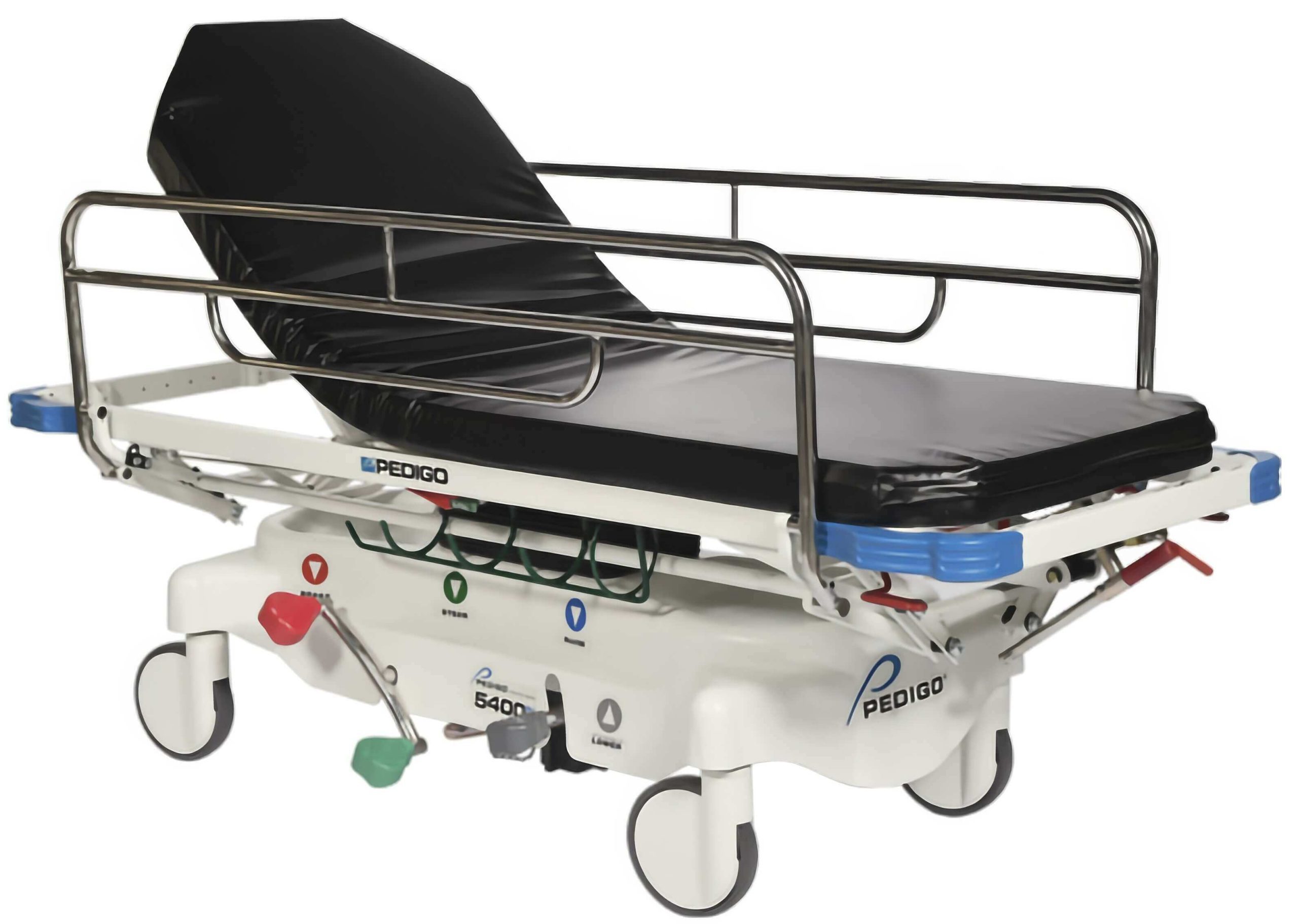

Pedigo 5400 W Stretcher, Side Brake only
The 5400 Series universal transport stretcher is versatile, yet economical. It’s the right stretcher for ED, OR, PACU, or any department where cost, efficiency and quality are required.
Features:
- Side rails – full length, single release
- Center column design with precision ball bearings
- Single Trendelenburg assist cylinder (positive/negative – pneumatic)
- Dual side-mounted hydraulic foot pedals
- Brake & Steer activated foot pedals
- Four corner IV pole receptacles
- Four restraint strap positions
- High impact composite corner bumpers
- 8″ easy mobility casters
- Rail System: Easy to wipe clean and disinfect, full length tuck-away side rails allow for easier patient transfer by creating a zero transfer gap. Rails feature a release latch centrally located on either side of the litter top under the patient surface
- Pneumatic Assist Fowler: Provides additional assistance for the safe and easy raising and lowering of the patient.
- Hydraulic Height Adjustment Foot Pedals: Hydraulic Foot Pedals are located on each side of the stretcher within the patient care zone. Color coded pedals and function graphics are quickly and easily understood.
- Center Column Support: Sturdy steel column with single hydraulic lift cylinder design uses sixteen precision ball-bearings to smoothly raise and lower the patient.
- True Direction Steering (TDS): For improved stretcher control, engage the True Direction Steering system. The steer caster located at the patient’s right foot end of the stretcher will lock once the steering pedal is applied.
Technical Specifications:
- Height range
- Low: 23″ (58cm)
- High: 32.75″ (83cm)
- Litter positioning:
- Fowler backrest: 0-90 degrees
- Trendelenburg: +12 degrees
- Reverse Trendelenburg: -7 degree
- Overall length: 83″ (211 cm)
- Overall width: 33.5″ (85 cm)
- Patient surface: 77″ x 31″ (196 x 77 cm)
- Side rails: 15″ x 63 5/8 (38 x 162 cm)
- Casters: 8″ (20 cm)
- Weight capacity: 500 lbs (227 kg)
The Pedigo 5400 W Stretcher with a side brake system exemplifies a perfect blend of functionality and cost-efficiency, making it an ideal choice for various medical settings including the Emergency Department (ED), Operating Room (OR), and Post-Anesthesia Care Unit (PACU). This stretcher is equipped with robust, full-length side rails that feature a single release for quick accessibility, and a center column support that utilizes a single hydraulic lift cylinder and precision ball bearings for smooth and effortless height adjustments. The integration of dual side-mounted hydraulic foot pedals enhances user control over the stretcher’s positioning, while the pneumatic assist Fowler backrest aids in safely adjusting patient posture. Notably, the stretcher includes a unique True Direction Steering (TDS) system that improves maneuverability and directional stability. Additionally, the stretcher is designed with patient comfort and safety in mind, offering multiple IV pole receptacles, restraint strap positions, and high impact composite corner bumpers. With a robust weight capacity of 500 lbs and large, easy mobility casters, the Pedigo 5400 W Stretcher ensures reliable and secure patient transport within healthcare facilities.
