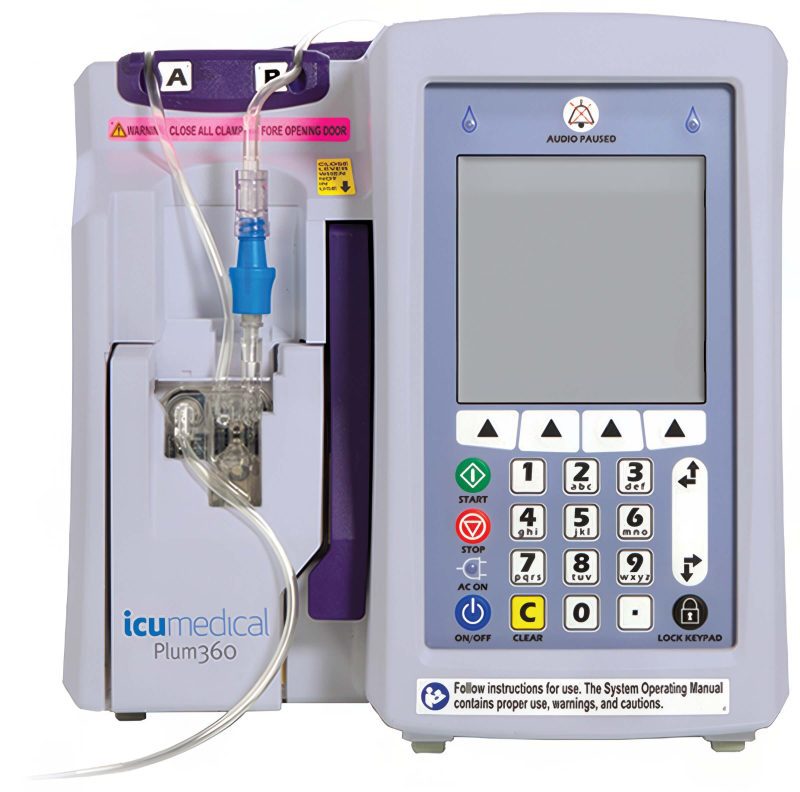

Plum 360 Infusystem

With today’s hectic pace, tight budgets and patient safety concerns, you need an infusion pump that serves both you and your patients, helping to maximize valuable resources and enhance your clinical practice. You’ll find the Plum 360 Infusion Pump is unlike any other, with a unique combination of features that empowers you to deliver optimal healthcare – today and tomorrow.

Features:

Dimensions
Approx. 8” H x 8” W x 6” D (0.20 m H x 0.20 m W x 0.15 m), excluding pole clamp extrusion and power cord storage
Weight
Approx. 10 lbs. (4.5 kg) with battery
Battery Life
Approx. 3 hours at up to 125 mL/hr on a single line, or delivers at least 250 mL if > 126 mL/hr
Power Requirements
120 V~, 50 to 60 Hz, 50 VA
Recharge Time
Approx. 8 hours with the device operating at 125 mL/hr on one line
Volume Range
0.1 to 99.9 mL (in 0.1 mL increments), 100 to 9999 mL (in 1 mL increments)
Delivery Rate Accuracy
± 5% (1 to 999 mL/hr), ± 10% (0.1 to 0.9 mL/hr)
Delivery Rates
Lines A and B: 0.1 to 99.9 mL/hr (in 0.1 mL increments), 100 to 999 mL/hr (in 1 mL increments)
Concurrent Delivery: 0.5 mL/hr minimum for each line
PlumSet: 500 mL/hr cumulative (A+B) maximum
KVO: 1.0 mL/hr or the last delivery rate on the associated line, whichever is less
Delivery Units
mL/hr, mcg/kg/min, mcg/min, mcg/kg/hr, mg/min, mg/m2, mg/m2/min, mg/m2/hr, mg/kg, mg/kg/hr, mg/hr, ng/kg/min, g/hr, mEq/hr, mUn/min, units/min, units/hr, units/kg/hr
System Alarms
Occlusion, Air-in-Line, Low Battery, Door Opened While Pumping, Lockout Violation, VTBI Complete, Valve/Cassette Test Failure, Nurse Call, No Action, Programming Not Complete
Occlusion Alarm Pressure
Distal Pressure Limit (without alarm): 1-15 psig (default 6 psig)
