Description
Power Supplies and Batteries Ventway Sparrow Portable Ventilator
Available Options:
- Rechargeable Battery (OEM: VWSP-420)
- Non-Rechargeable Battery (OEM: VWSP-430)
- AC/DC Power Adaptor (EOM: VWSP-141)
- DC/DC Car Power Adaptor (OEM: VWSP-142)
- Vehicle DC Cable – Without Input Terminal (16V-30V) (OEM: VWSP-929)
- Desktop Charger (16V-30V) (OEM: VWSP-860)
Specs:
- Rechargeable Battery (OEM P/N: VWSP-420)
- Dimensions:
- General 85 x 75 x 25mm
- Nominal Voltage 14.8V
- Charging Voltage 16.8V
- Rated Capacity 2850mAh ± 50mAh
- Maximum Charge Current 2500mA
- Maximum Discharge Current 2500mA MAX
- Recharge Time 4 hours
- Operating Time (Internal Battery) 4 hours
- Operation Temperature -20°C – 50°C
- Long Term Storage -20°C to 25°C
- Weight 235g
- Dimensions:

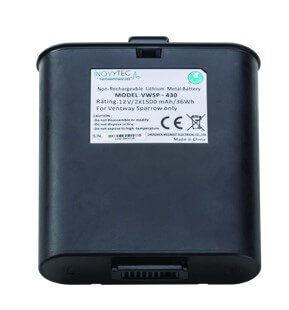

- Non-Rechargeable Battery (OEM P/N: VWSP-430)
- Dimensions:
- General 85 x 75 x 25mm
- Nominal Voltage 12V
- Rated Capacity 3000mAh
- Standard Discharge 20Ma ± 50mAh
- Maximum Discharge Current 3000mA
- Operating Time 3 hours
- Operation Temperature -20°C – 50°C
- Storage Temperature -20°C – 35°C
- Weight 175.5g
- Dimensions:

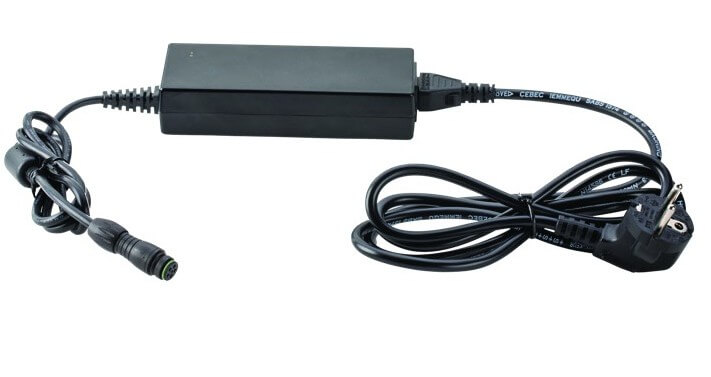

- AC/DC Power Adaptor (OEM P/N: VWSP-141)
- Dimensions:
- Power Adaptor Unit 180 x 60 x 50mm
- Ventilator Inlet Cable Length 1000mm
- Power Source Cable Length 1800mm
- Input Voltage 90-264 VAC (Universal)
- Input Frequency 47-63 Hz
- Input Current 2.0A @ 115 VAC
- Operating Temperature 0° – +40°C
- Storage Temperature -40°C – +80°C
- Operating Humidity 10-95%
- Dimensions:

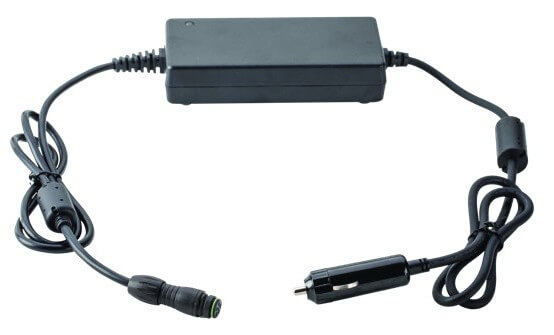

- DC/DC Car Power Adaptor (OEM: VWSP-142)
- Dimensions:
- Power Adaptor Unit 180 x 80 x 50mm
- Ventilator Inlet Cable Length 1000mm
- Power Source Cable Length 1800mm
- Input Voltage 90-264 VAC (Universal)
- Input Frequency 47-63 Hz
- Input Current 2.5A @ 115 VAC
- Operating Temperature 0°C – +40°C
- Storage Temperature -40°C – +80°C
- Operating Humidity 10-95%
- Dimensions:

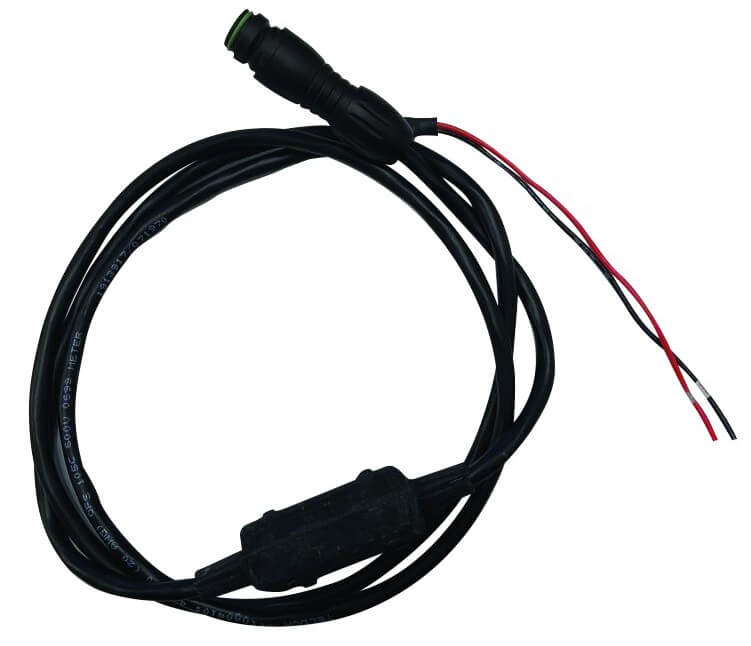

- Vehicle DC Cable – Without Input Terminal (16V-30V) (OEM: VWSP-929)

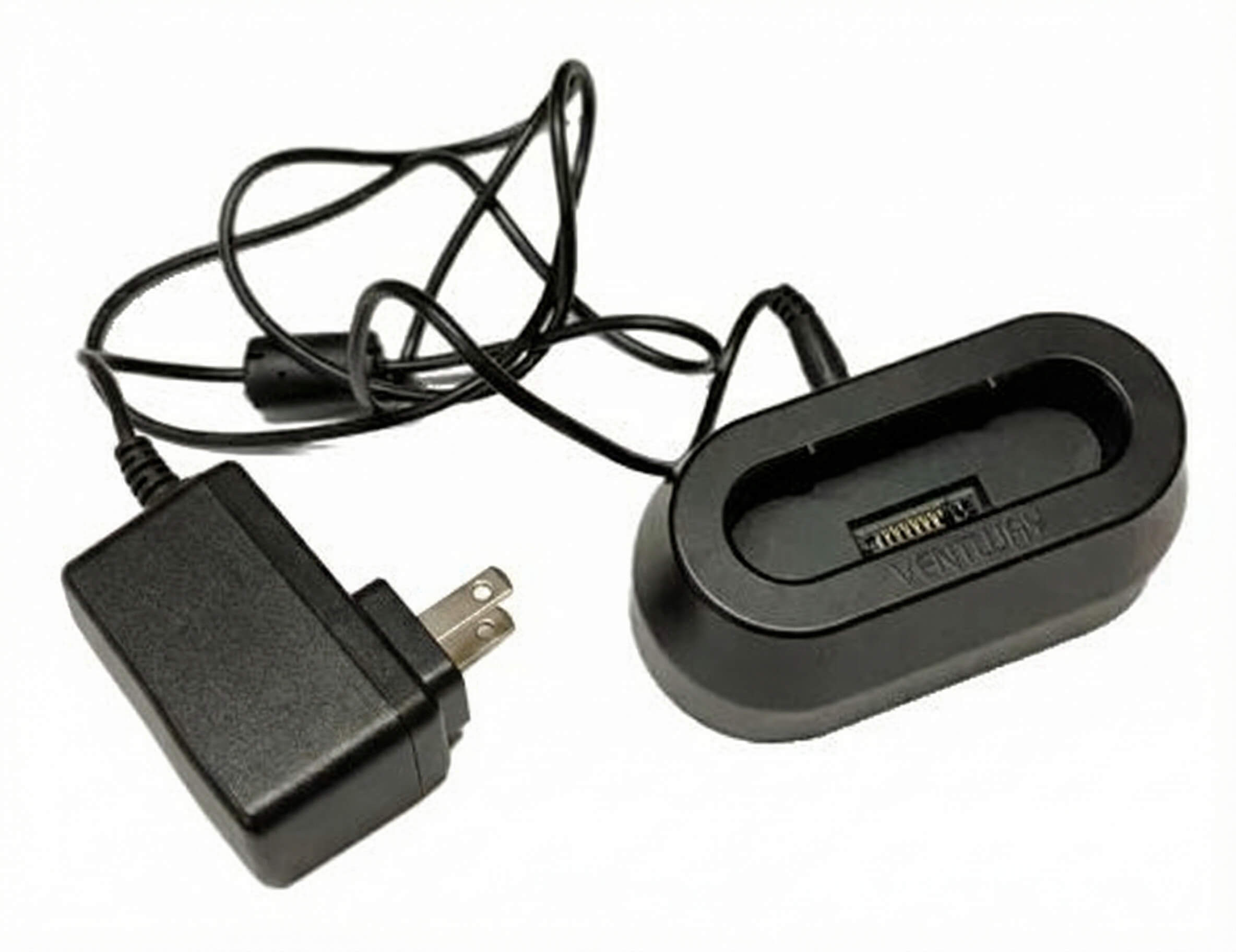

- Desktop Charger (16V-30V) (OEM: VWSP-860)
