Description

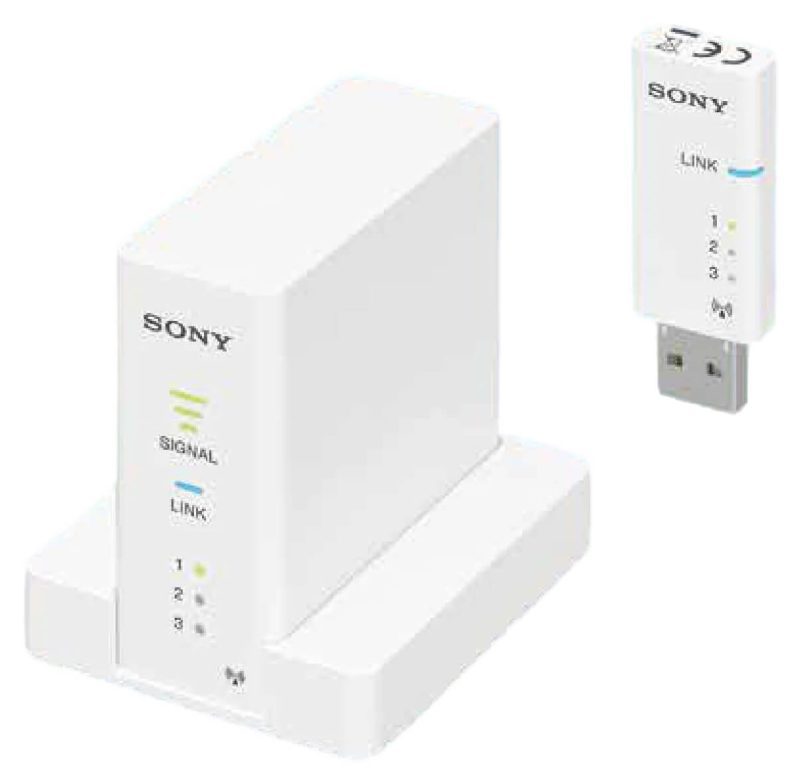

The UPA-WU10 wireless print system allows cable-free connection of compatible Sony medical printers with compatible surgical endoscopes, ultrasound systems, and other hospital imaging modalities.* The system effectively replaces a conventional wired USB connection between printer and imaging modality. It’s ideal for busy clinical environments, where modalities are constantly being moved between different O.R. and treatment rooms. The all-in-one wireless print solution also resolves the problem of limited space on medical carts, allowing connection between the modality and an “off-cart” printer without a lengthy USB cable.
Key Features:
Auto quick link for easy 1:1 wireless pairing
UPA-WU10’s transmitter searches for any receiver and automatically pairs with the closest transmitter emitting the strongest signal.
No wires, no extra software
The system replaces a USB cable connection to the modality with a wireless link. No additional software is needed, other than the printer driver installed on the modality.
Automatic reconnection
The wireless connection between devices is automatically re-connected if the modality is moved to another room.
Simultaneous transmission
Three radio channels allow simultaneous transmission among multiple transmitter/receiver pairs. This permits use of up to three printers in the same room (requires separate UPA-WU10 unit per printer).
Adequate transfer distance
The UPA-WU10 system wirelessly transfers data from modality to printer. The maximum transmission range is approximately 10m, using Ultra Wide Band.
Space-saving and convenient
Wireless connectivity to the modality means the printer can be placed anywhere within transmission distance, leaving more room on the medical cart.
UPA-WU10 Wireless Print System Specs:
- Operating Temperature: 41 °F to 104 °F (5 °C to 40 °C)
- Operating Humidity: 20% to 80%
- Storage/Transport Temperature: –4 °F to +140 °F (-20 °C to +60 °C)
- Storage/Transport Humidity: 20% to 80%
- Operating/Storage/Transport Pressure: 700 hPa to 1060 hPa
- Communication System: UWB (Ultra Wide Band)
- Transmit/Receive Frequency: 7,392 MHz to 8,448 MHz Band Group #6 (Band #9, #10)
- Power Requirement: DC 5V/0.5A (USB Bus power)
- Transmitter Interface: USB 2.0 TypeA
- Receiver Interface: USB 2.0 TypeA USB 2.0 TypeB
- Maximum Communication: Approx. 33 ft. (10 m) line-of-sight *
- Maximum Number of Devices in Use Simultaneously: 3 **
- Dimensions (W x H x D)
- Transmitter (excluding USB connector): Approx. 25/32 x 11/32 x 1 11/16 inches (19.5 × 8.5 × 41.3 mm)
- Transmitter (including USB connector): Approx. 25/32 x 11/32 x 2 1/8 inches (19.5 × 8.5 × 53.3 mm)
- Receiver: 1 1/8 x 2 5/8 x 2 5/8 inches (27.6 × 66.1 × 66.1 mm)
- Mass Transmitter: Approx. 0.28 oz. (8 g) Receiver: Approx. 2.0 oz. (57 g)
- Medical Regulation [US]: FDA Class 1 [EU]: MDD Class1
- Radio Law Certification: US, Canada, EU+EFTA and Japan ***
Supplied Accessories:
- Instructions for Use (1)
- Service Contact List (1)
- Stand (1)
- USB cable (x2)
