Description

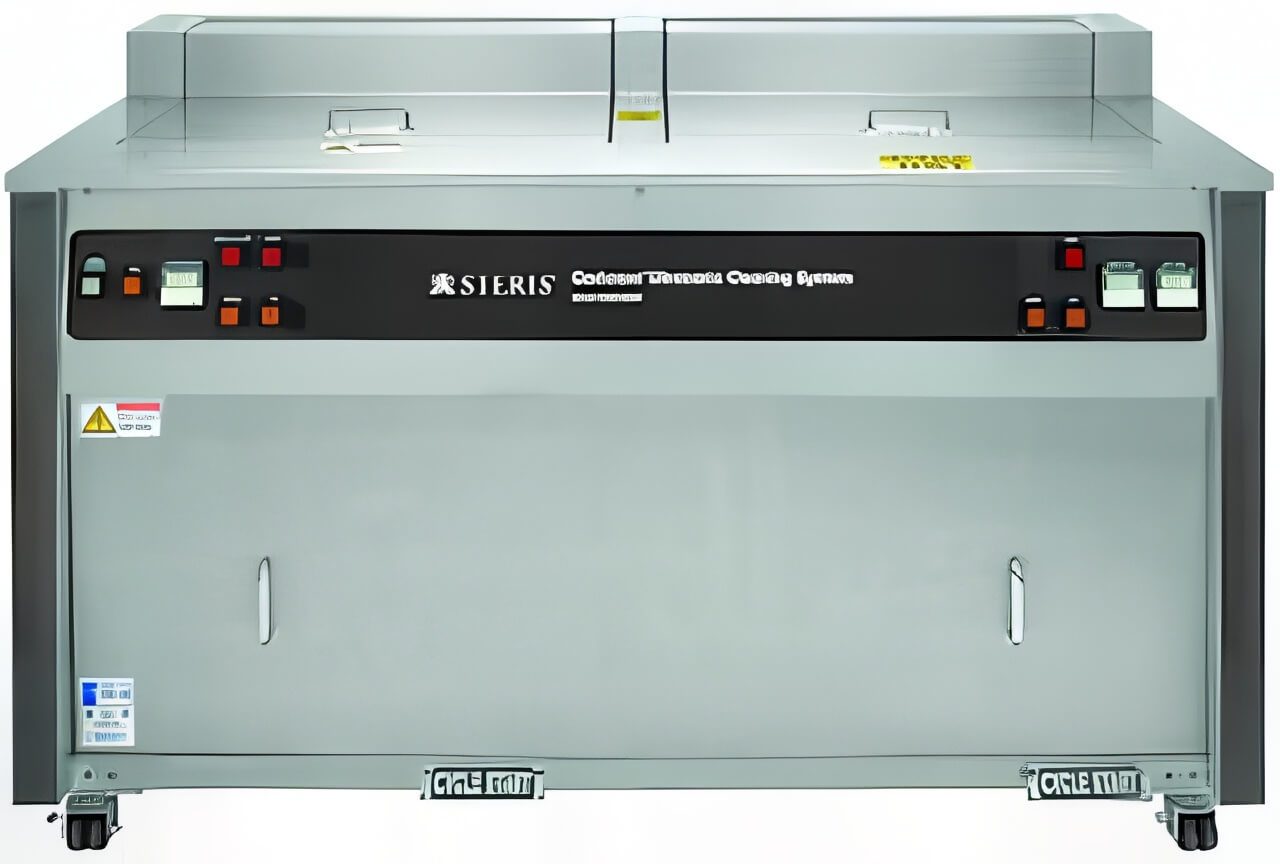

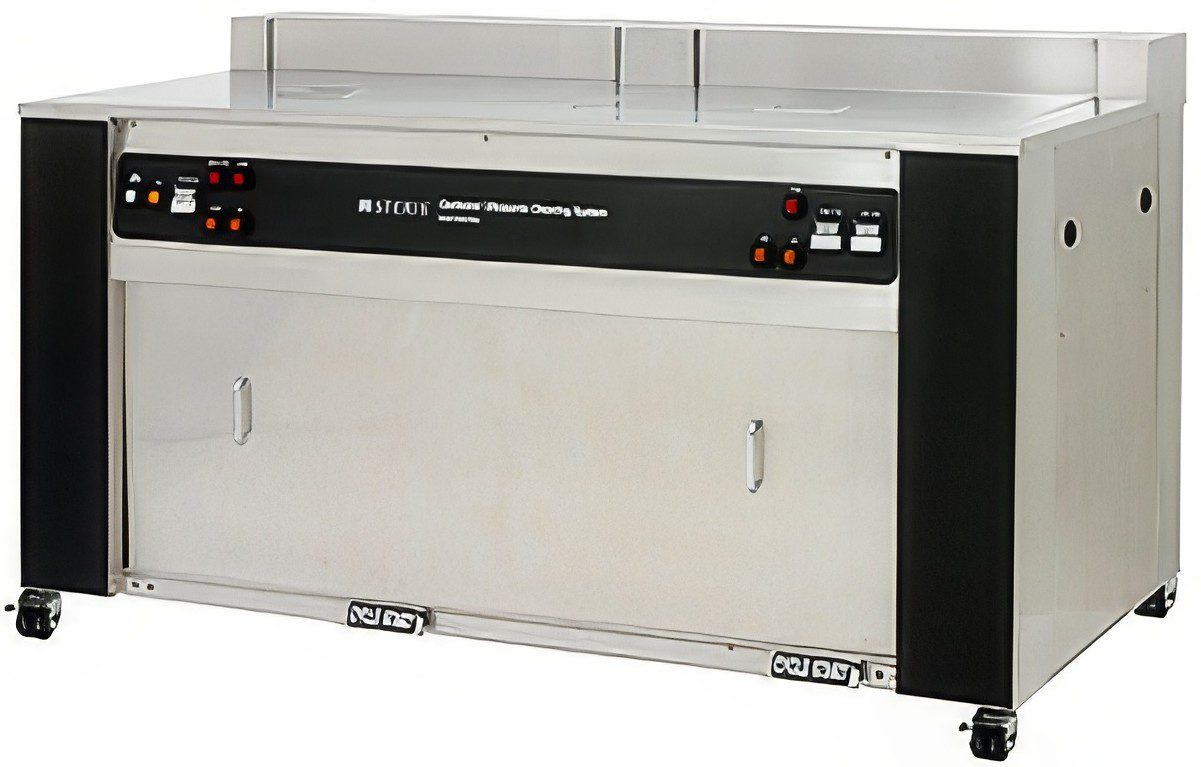

Refurbished Steris Caviwave Rinsing and Drying Ultrasonic Cleaning System
• Cleaning frequency of 132kHz that more than triples the commonly used 40kHz
• Toe touch cycle start •Automatic chemistry injection
• Automatically cleans, flushes, lubricates, and dries depending on unit configuration* Sizes Available:
• 15-gal (57 L) tank holds 22 lb (10 kg) of instruments.
Approximate operating weight: 1311 lb (595 kg).
Specs: 208 V, 50/60 Hz, 3-Phase (5 Wire)
Drain 1-1/4in Slip CPVC (trap and waste lines are not provided by STERIS).
Hot Water 1/2in FPT CPVC (38 psi maximum); 110-120°F (43-49°C). Cold Water 1/2″ FPT CPVC (38 psi maximum); 40-60°F (4-16°C).
Overall dimensions of a fully equipped Console Model:
• 39-1/2×42-1/4±1×60″(1003×1073±25x1524mm) Service Access Clearance:
• Minimum 24″ (610 mm) all sides
