Description

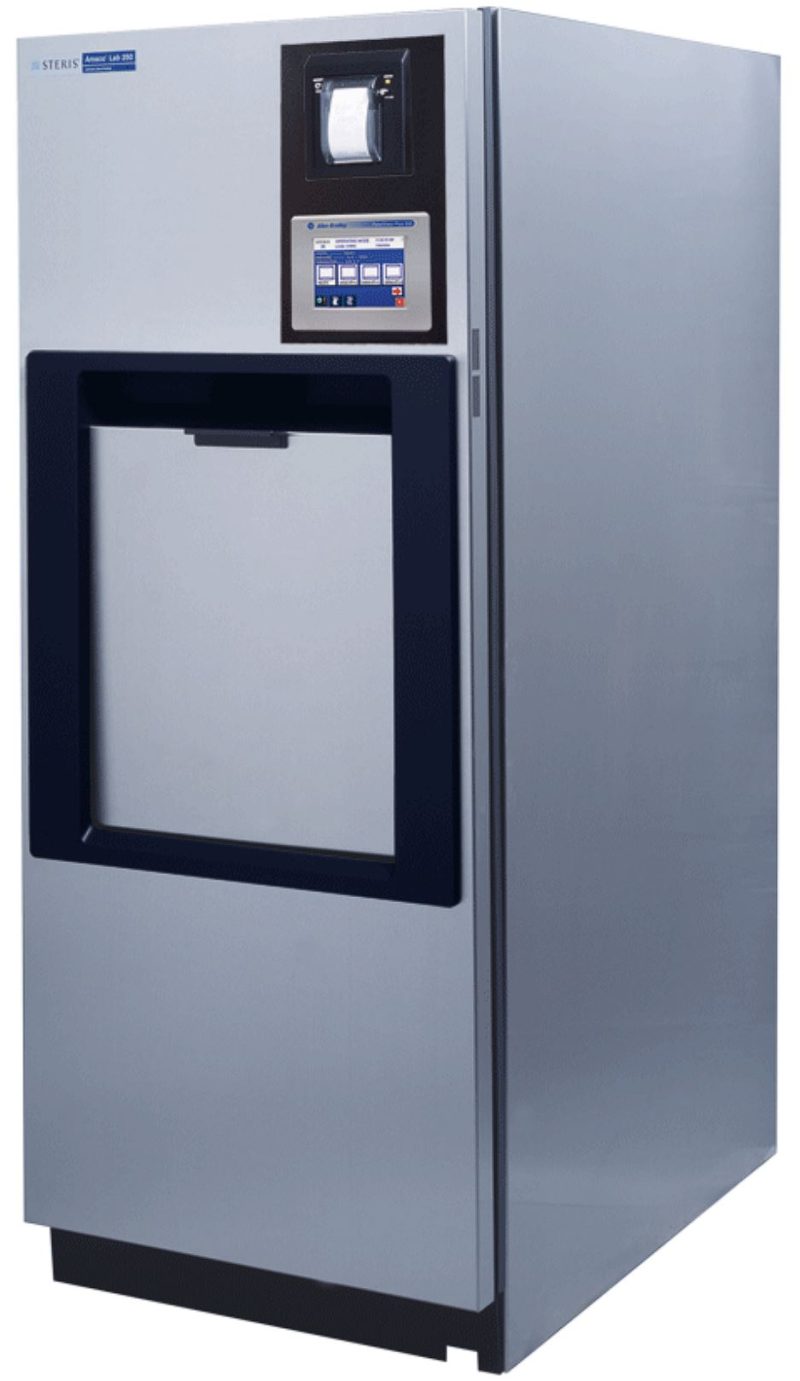

Amsco Lab 250 and Amsco Lab 110 Small Sterilizers Technical Data Sheet Brochure
Primary Product Features
Allen-Bradley MicroLogixTM control system with enhanced functionality and user-friendly A-B PanelView PlusTM 600
- Touch-sensitive screen with 18-bit color graphic display
- The display features 320 x 240 resolution color-active matrix (TFT)
- Display is designed with emphasis on human factors and user recognizable symbols
- 20 cycles may be individually selected and programmed
- Compact Flash (CF-Card) memory card slot on operatorpanel for memory backup/restore
- Help screens for control operation
- Service reprogrammable flash ROM memory
- Program is stored in flash for permanent storage
- Variables are stored in flash memory for permanent storageVertical sliding door with manual operation.
• Non-lubricated, steam activated door seal
Modularized vessel and piping for increased dependability and reduced servicing time.
- Reduced piping components increase reliability
- Vessel design allows higher operating temperature (141°C [285°F])
- Nonclogging chamber drain line prevents media from plugging drain line
- Emergency manual exhaust valveInterior Chamber Dimensions
- 20x20x38″(508x508x965mm)
Sterilizer is factory-programmed with the following applicable sterilizing cycles:
- Gravity Cycle, provided on gravity, prevacuum, and isothermal sterilizers, for the sterilization of heat- and moisture-stable goods at 100°C to 141°C (212°F to 285°F), and decontamination of bagged non bio-hazardous laboratory wastes. Gravity cycle utilizes the gravity air- displacement principle.
- Liquid Cycle, provided on gravity, prevacuum, and isothermal sterilizers, for the sterilization of liquids and media in vented borosilicate glass or metal containers at 100°C to 135°C (212°F to 275°F). Liquid cycle utilizes the optimal solution cooling feature, during exhaust (cooling) phase, to control the exhaust rate.
- Prevacuum Cycle, provided only on the prevacuum sterilizer, for efficient, high-volume sterilization of porous, heat- and moisture-stable materials at 100°C to 141°C (212°F to 285°F). Prevacuum cycle utilizes a mechanical air- evacuation system.
UTILITY REQUIREMENTS
Sterilizer Using “House” Steam Steam
1/2″ NPT, 50 to 80 psig (344.7 to 551.6 kPa) dynamic, 97 to 100% vapor quality.
Drain
1-1/2″ ODT drain terminal. (Floor drain capacity must handle peak water consumption; refer to engineering data.)
Electrical – Controls
120 Volt, 50/60 Hz, 1-phase, 3.0 Amps.
International:
230 Volt, 50/60 Hz, 1-Ph, 1.5 Amps.
Sterilizer Feed Water
1.0″ NPT, 30 to 50 psig (206.8 to 344.7 kPa) dynamic. Water is used for ejectors, vacuum pumps, exhaust condensers, and trap cooling. Refer to Table 1 for recommended water quality. Use of feed water within the nominal conditions will optimize equipment performance and reduce maintenance.
NOTE: Backflow prevention is not provided by STERIS unless backflow preventer option is selected.
Sterilizer Equipped With Integral Carbon Steel Steam Generator
Drain
1-1/2″ ODT drain terminal. (Floor drain capacity must handle peak water consumption; refer to engineering data.)
Generator Drain
1/2″ ODT.
Electrical – Controls
120 Volt, 50/60 Hz, 1-phase, 9.5 Amps.
International:
230 Volt, 50/60 Hz, 1-Ph, 1.5 Amps.
Electrical – Generator
208 Volt, 50/60 Hz, 3-phase, 83.2 Amps; 240 Volt, 50/60 Hz, 3-phase, 72.2 Amps; or 480 Volt, 50/60 Hz, 3-phase, 37 Amps.
International:
380/415 Volt, 50/60 Hz, 3-Ph, 41/45 Amps (Prevacuum Units).
Sterilizer Feed Water
1.0″ NPT, 30 to 50 psig (206.8 to 344.7 kPa) dynamic. Refer to Table 1 for water specification guidelines.
Steam Generator Feed Water
1/2″ NPT, 20 to 50 psig (137.9 to 344.7 kPa) dynamic. Refer to Table 2 for required water quality. Use of feed water within the nominal conditions will optimize equipment performance and reduce maintenance.
Model #:
LAB250, LG-250, LV-250, 250LS
