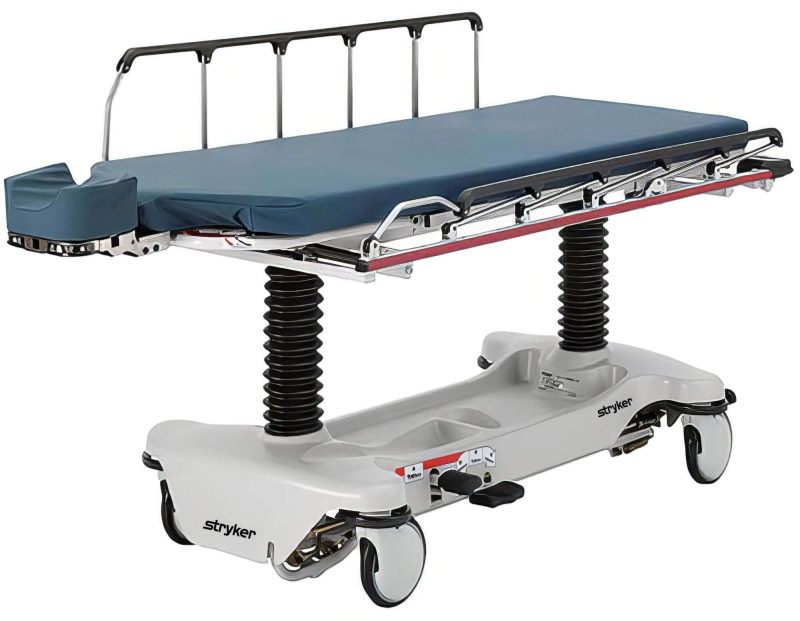

Description
• Patient Surface 26 x 87 inch (66 x 221 cm)
• IV Pole and O2 Tank Well
• Headpiece Tilt ±45°
• Overall Dims: 90″ Length, 31.5″ W (side rails up)
• Litter Positioning
• Backrest 0° – 90°
• Knee Gatch 0° – 30°
• Trend./Reverse Trend. ±18°
• Height Range (to litter top): High 34in (86 cm), Low 22.25in (57 cm)
• Weight Capacity 500 lbs (228 kg)
• Headpiece: Height Adjustment – ± 4.5in, Headpiece Tilt: ± 4.5in
• Comfort Mattress
• 8in Omni Surface™ Casters with Wheel Covers
• Crank Backrest
• Dual Pedestal Hydraulics
• Dual Side Hydraulic Controls
• Fold-down Siderails
• Four IV Receptacles
• Four-wheel Steel-ring Brakes with foot-end Brake & Steer Pedal
• Hands-free Trendelenburg
• Integrated Storage Tray with Oxygen Bottle Holder
• Retractable Fifth-wheel Steering
• Rubber Bumpers
• Stationary Foot-end Littler
• Uni-lower Pedal
• Dual-articulation, Enhanced-Clearance Headpiece
