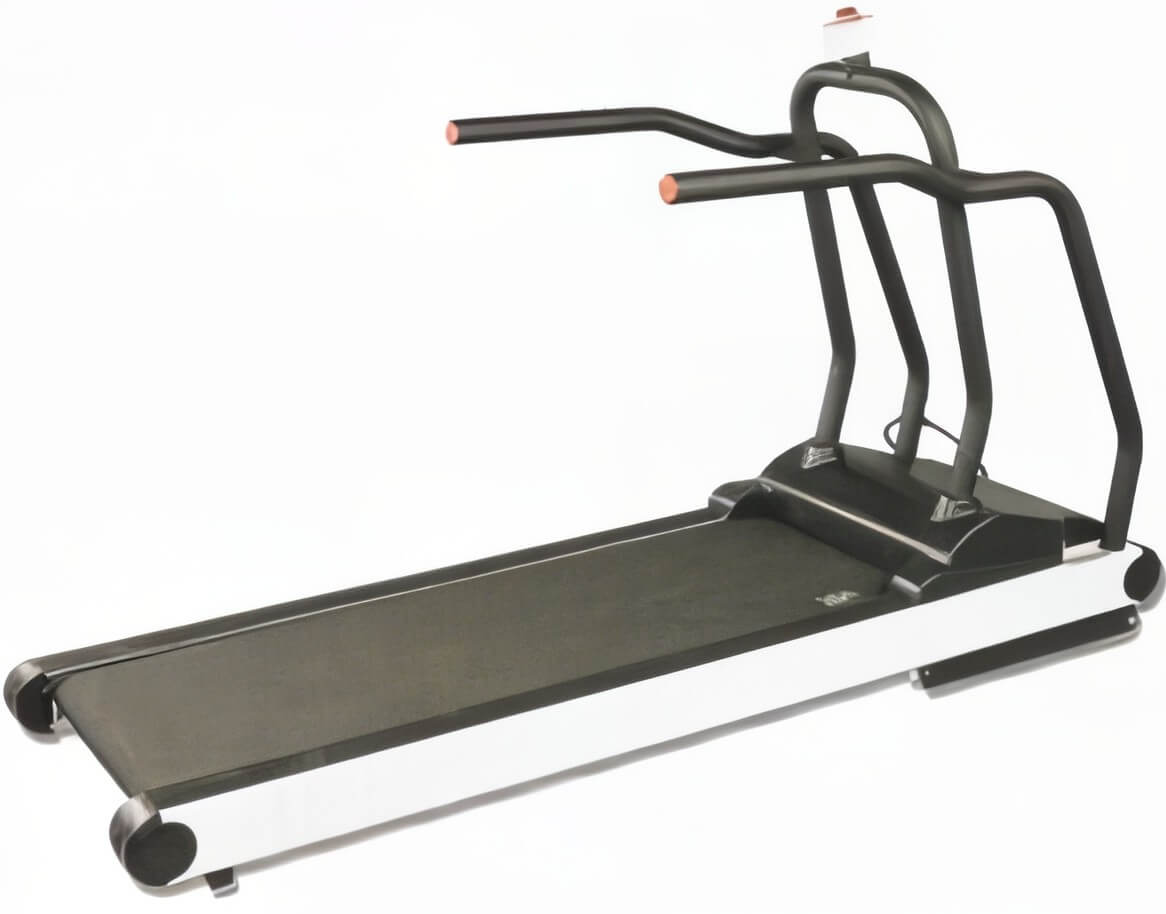

Trackmaster TMX 425 Treadmill

Request Quote

The Trackmaster TMX 425 Treadmill is a robust, high-capacity stress-testing treadmill designed for precision and durability in clinical and research settings. Equipped with a heavy-duty 2.2 HP AC inverter drive and a double-sided, lubricated, cushioned running deck measuring 22” x 63”, it provides a smooth, low-impact walking surface at a low profile of 7.5 inches from the floor. The treadmill supports a user capacity of up to 500 lbs and features adjustable elevation from 0-25%, with speeds ranging from 0.5 to 12 MPH on 220V power or 0.5 to 10 MPH on 110V. Constructed with 10-gauge steel side rails, a 12-gauge steel motor pan, and epoxy powder coating in jet-black with a white finish, it combines strength with stylish durability. Standard safety side rails, an RS232 interface, and compatibility with the QRS system make it a reliable choice for rigorous testing environments. The treadmill requires a level 33” x 88” surface for optimal use and offers advanced features including auto speed reset, ensuring precision and safety during high-stress evaluations.
To submit a quote request for this product please fill out the form below.
Product Quote Request
Name
Name
Quantity *

SKU: AM-TMX-425 Category: Tags: , , , Brand:

Description

Trackmaster TMX 425 Treadmill

Includes: New walking belt installed on treadmill, New Drive belt, New bearings, Power cable & Side rails.
Compatible with customers QRS system.

Features:

  •  User Capacity of 500 lbs.
  • Frame:
    • 10 Gauge Steel Side Rails
    • 12 Gauge Steel Motor Pan
  • Epoxy Powder Coat in Jet-Black Rail with White Finish
  • Safety Side Rails are Standard
  • RS232 Interface

Technical Specifications:

  • Elevation:
    • 0-25% Standard
  • Speed Range:
    • 0.5-12 MPH (220V)
    • 0.5-10 MPH (110V)
    • Auto Speed Reset (ASR)
  • Floor Surface Requirements:
    • 33” x 88” Level Surface
  • Running Surface:
    • Heavy Duty 2.2 HP AC Inverter Drive
  • 110v, 60Hz, 20A
  •  208/220V, 60Hz, 15A
  • All International Standards Available
  • Trackmaster Treadmill Plug Configuration Document in PDF Format. This document contains the Electrical Requirements Information for a Trackmaster Treadmill
  • 22” x 63” Cushioned, Lubricated, Low Profile (7.5” from floor)
  • Double-Sided Running Deck



Additional information

Condition
