Description

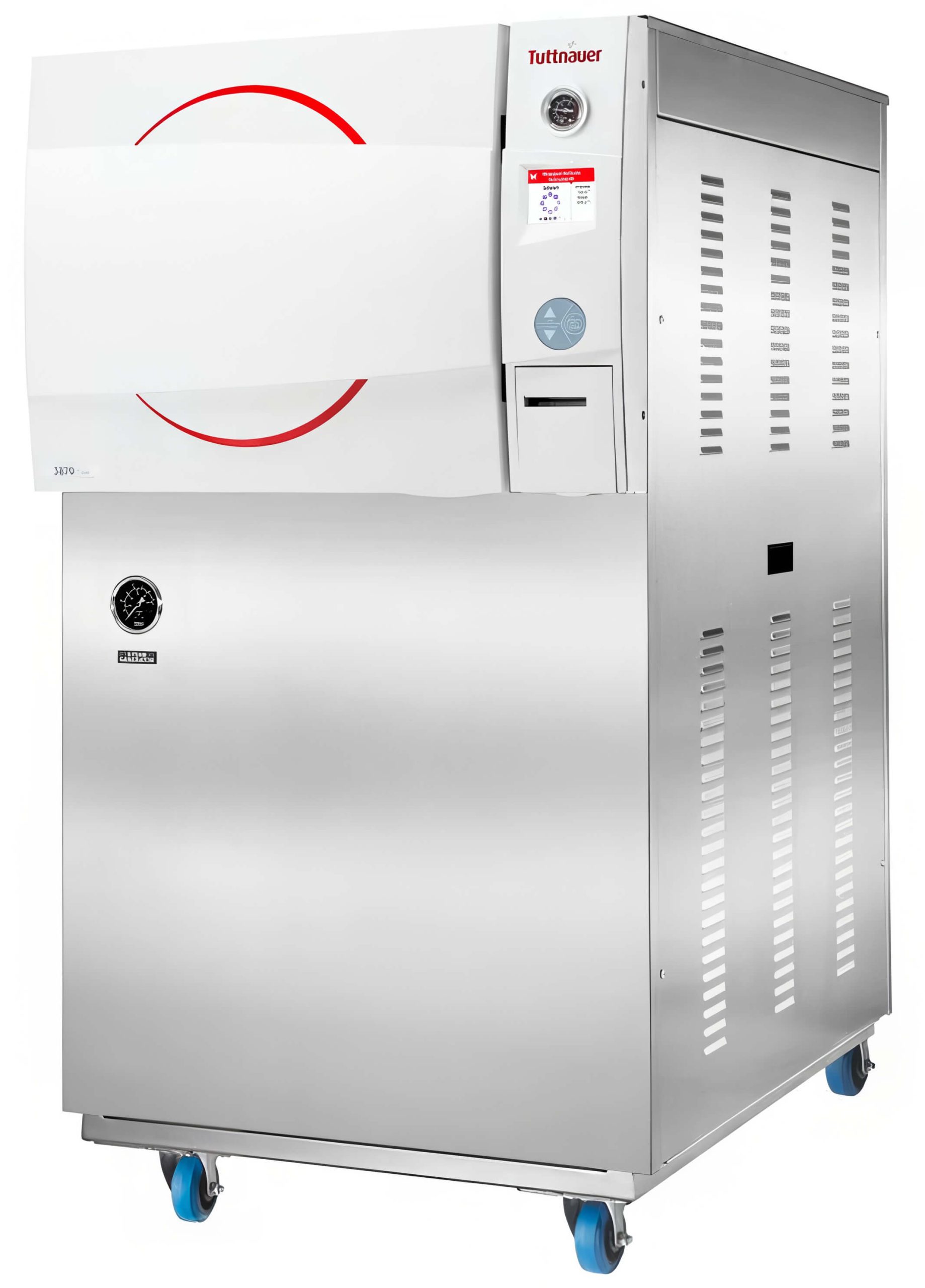

The Tuttnauer 3870HSG-WS autoclave is an 85 liter autoclave that is ideal for ASC’s and large clinics. The 3870HSG-WS autoclave provides hospital grade sterilization and medium loading capacity at a cost-effective price that meets the highest international standards.
The 3870 HSG-WS is a hospital grade Class B autoclave, suitable for large medical & dental clinics, and operating rooms. Designed to be a fast cycle sterilizer that is mobile, operates 24 hours a day, and can optionally operate independent of building utilities.
Independent Mode – no need to connect the autoclave to the building utilities for distilled water, tap water or drain
Reporting You Can Rely On
• Automatic cycle data recording to any PC on your network • Convenient access to graphs & tables
• Easily generate PDF reports
• No need to file printouts, saving you time
Be in Control with Real-Time Remote Monitoring
• See the real-time autoclave display on your PC • Monitor all activity for up to 8 autoclaves
Overall Dimensions: 28.4” x 53.8” x 46.5”
Total Weight: 397 lbs.
Chamber Dimension: 15.2” x 29.9”
Tray Dimensions:
Small: 11.3”x 1”x26.6”
Large: 13.8”x 1”x 26.6”
Quality Standards:
• ISO 9001:2015 – Quality Management Systems
• EN ISO 13485:2016 Quality Management System – Medical Devices
• In compliance with 21 CFR part 820 & part 11
Directives:
• MDD 93/42/EEC amended in Directive 2007/47/EEC • PED 2014/68/EU – Pressure Equipment Directive
• 2012/19/EU WEEE and 2017/2102 RoHS
Electrical Specifications:
Technical Standards
• EN 285: 2015 Large steam sterilizer
• EN 61010-1: 2010
• EN 61326-1: 2013
• EN 61010-2-40: 2015
• FDA Approved
• ANSI/AAMI/ST8:2013 (R2018)
• ANSI/AAMI – ST55:2016
• ASME Code section I and section VIII. Div.I
3 ph, 230 Volts, 25 Amp., 60Hz
9 kW
