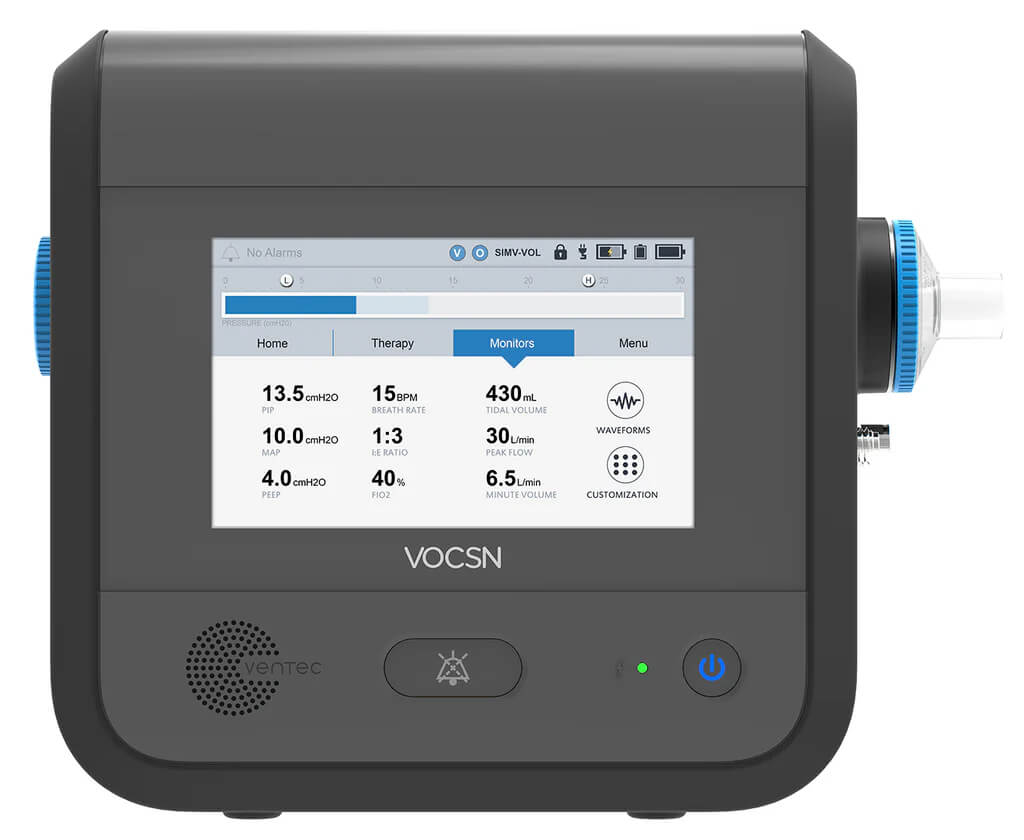

Ventec Life Systems VOCSN V+Pro Transport Ventilator

Description

Ventec Life Systems VOCSN V+Pro Transport Ventilator

• Ventilator (Invasive, noninvasive, and mouthpiece)
• Oxygen Concentrator (Internal, equivalent to 6 L/min)

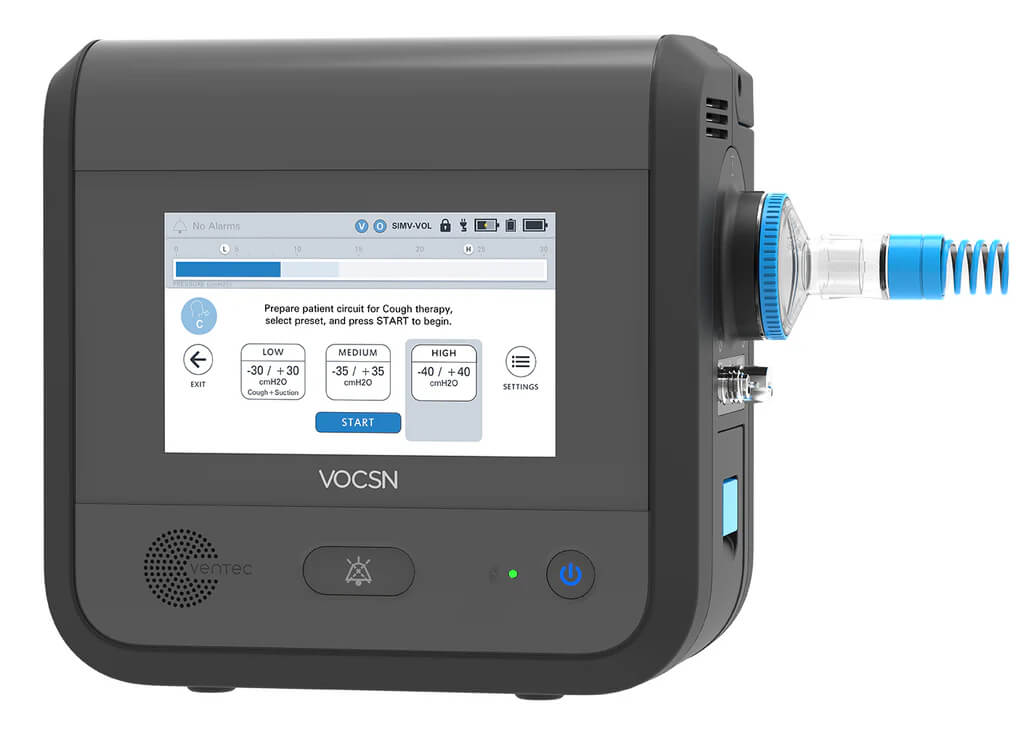

• Cough Assist (Touch Button Cough™)

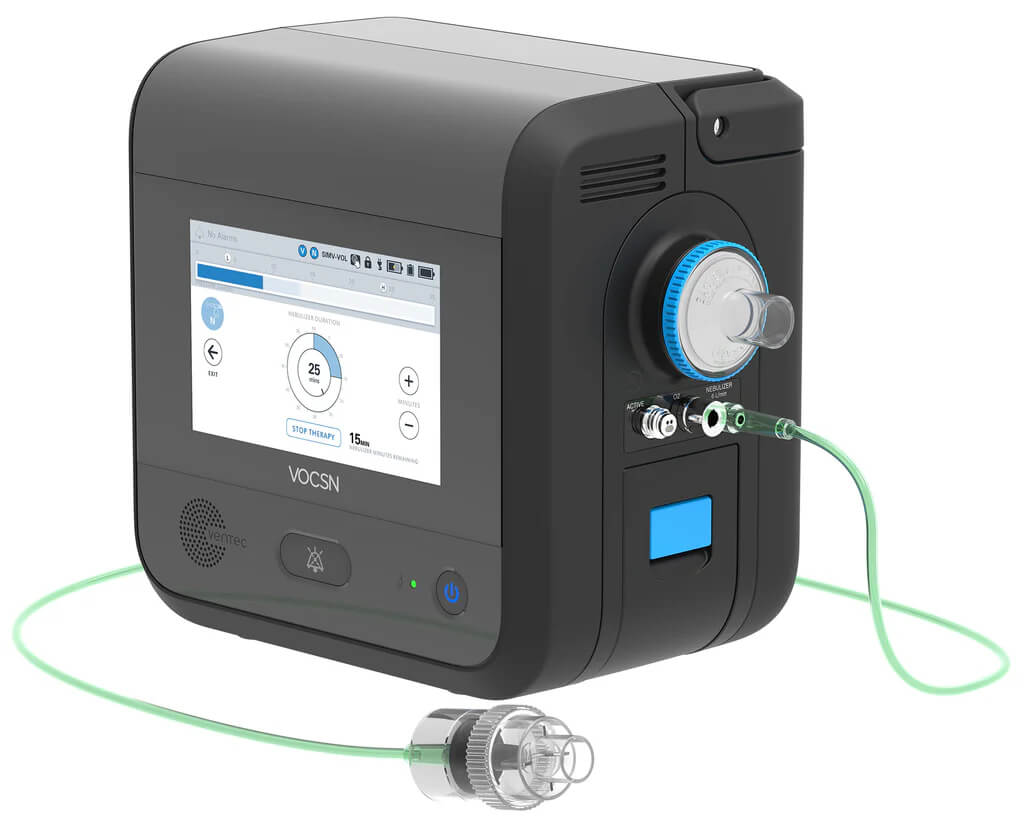

• Suction Machine (Hospital-grade)
• Nebulizer (High-performance)

Provides invasive, non-invasive ventilation, and integrated high flow therapy. Delivers a comprehensive set of modes and settings including pressure and volume control, as well as advanced leak compensation. Approved for patient transport both inside and outside the hospital.

VOCSN integrates five separate devices including a ventilator, oxygen concentrator, cough assist, suction, and nebulizer, into one multi-function ventilator for hospital, institutional, transport, and home environments. VOCSN is controlled with an intuitive touchscreen operating system to deliver treatments in seconds instead of minutes. VOCSN is customizable to each patient. VOCSN can include all five therapies or just the mix of therapies needed, scaling with patient need. VOCSN Multi-View is the first and only system to provide complete patient trending and monitoring for ventilatordependent patients across multiple respiratory therapies including ventilation, oxygen, cough, suction, and nebulization and additional patient monitors.

Features:

• Five therapies in one device
  •  70% lighter and smaller than five devices
•  Up to 9 hours of on-board battery
•  Touch Button Cough™
•  Uninterrupted ventilation between therapies
• Designed to reduce risk of circuit misconnects
• Ventec One-Circuit™
•  Intuitive touchscreen operation
•  Quick and easy setup
• Invasive and non-invasive ventilation
• For adult and pediatric patients greater than 5 kg
• Optional Roll Stand Available: AM-VENPRT-00569-001 (Sold Separately)

Specs:

• Dimensions:
  • Width: 10.25 inch (26 cm)
  • Height: 11 inch (28 cm)
  • Depth: 7.5 inch (19 cm)
• User Interface:
  • 7 inch (17.75 cm) easy to use color LCD touchscreen
• Weight (With Batteries):
  • V+O+C+S+N+Pro: 18.3 lbs (8.3 kg)
  • V+O+C+S+N: 18.1 lbs (8.3 kg)
  • V+C+S+N+Pro: 17.8 lbs (8.1 kg)
  • V+C+Pro: 14 lbs (6.4 kg)
  • V+C: 12.5 lbs (5.7 kg)
  • V+Pro: 14 lbs (6.4 kg)
• Battery Power:
  • Up to 9 hours of continuous use (ventilation only)
  • 2 external hot swappable lithium-ion batteries (5,800 mAh each)
  • 1 Internal battery (3,900 mAh)
  • Note: Simultaneous use of therapies will decrease battery operating time
• AC Power:
  •  Sine AC mains waveform
  • Rated Voltage: 100 to 240 VAC, 50 to 60 Hz
  • Power for V+O+C+S+N(+Pro) and V+C+S+N+Pro: ≤288 VA average, 420W peak
  • Power for V+C(+Pro) and V+Pro: ≤180 VA average, 240 VA peak
• DC Power:
  • 20.0 to 30.3 VDC, as measured at the connection to the device, through 0 to 350 W instantaneous loads
  • Power for V+O+C+S+N(+Pro) and
  • V+C+S+N+Pro: ≤200 W average, 350W peak
  •  Power for V+C(+Pro) and V+Pro: ≤150 W average, 200 W peak
  • Intended for connection to 24 V (27.2 VDC typical) batteries
  • Female XLR3 connection port with the following pin configuration:
    • Pin 1 Signal: V+
    • Pin 2 Signal: RTN
    • Pin 3 Signal: N/A (Unused)
• Operating Enviroment:
  • Temperature: 5 °C to 40 °C
  • Humidity: 15% to 90% (non-condensing)
  • Atmospheric: 700 to 1060 hPa
• Electromagnetic Compatibility and Protection:
  • EC 60601-1-2
  • Additional ESD levels: ±8 kV contact / ±15 kV air
  • Additional Radiated RF Immunity level: 20 V/m
  • Additional Magnetic Fields level: 30 A/m
  • Tested for RFID immunity

Warranty for 2 years or 10,000 hours
