Ventway Sparrow - EMS and Transport Turbine Ventilator

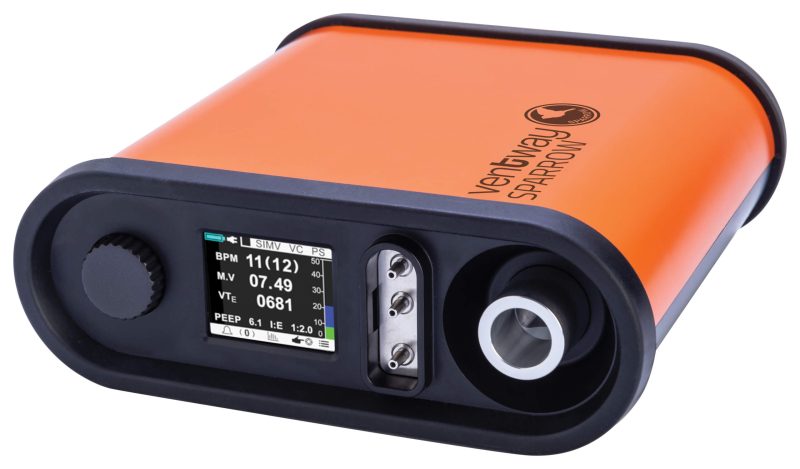

Ventway Sparrow – EMS and Transport Turbine Ventilator

$9,350.00

The Ventway Sparrow is a compact, impact-resistant emergency and transport ventilator designed for field and combat medicine, enabling effective ventilation from the point of injury to the ICU with a single, portable device. It supports multiple ventilation modes, including SIMV-VC-PS, SIMV-PC, CPAP, HFNC, and CPR mode, and is suitable for adult and pediatric patients over 5 kg. Key performance specs include a wide respiratory rate range (1–60 bpm), peak inspiratory pressure up to 60 cm H2O, tidal volumes from 50–2000 mL, adjustable inspiratory time and I:E ratios, high peak flow for both mandatory and spontaneous breaths, FiO2 from 21% to 95%, and PEEP from 0 to 20 cm H2O. The device is operable across altitudes from -1200 ft to 25,000 ft and supports battery power (rechargeable 2850 mAh and non-rechargeable 3000 mAh), plus external AC/DC and DC-DC power adapters. Each package includes battery(s), a filter, and an AC/DC power adapter. This portable, user-friendly ventilator is designed to deliver reliable respiratory support in austere environments where space and weight are at a premium.

Ventway Sparrow Ventilator Brochure

LEAD TIME: 10-15 Business Days

SKU: AM-VWSP-100 Category: Tags: , , , , Brand:

Description

Ventway Sparrow – EMS and Transport Turbine Ventilator

OEM Part Number: VWSP-100

The Ventway’s unique combination of high-performance, functionality, and compact design, position it among the top emergency and transport ventilators. Designed to be impact resistant, ultra portable and user-friendly, the Ventway Sparrow enhances the standard of care in both Field and Combat medicine. Ventway enables effective ventilation from the point of injury all the way to the ICU while using just one ventilator.

Performance Data:

  • Ventilation Modes SIMV-VC-PS, SIMV-PC, CPAP, HFNC , CPR Mode
  • Adult & Pediatric Patient Weight >5 Kg (11 lb)
  • Respiratory Rate 1 – 60 ± 1 bpm
  • Peak Inspiratory Pressure 0-60 cm H2O
  • Tidal Volume 50-2000 mL ±10% + 4 mL
  • Inspiratory Pressure Limit 11 to 60 cm H2O ± 2 cm H2O or 10% whichever is greater
  • Inspiratory Time 0.3 to 4 ± 10% sec
  • I:E Ratio 1:4 to 4:1
  • Peak Flow (PIF) Mandatory breaths: 135 L/min (-5% to +10%)
  • Spontaneous breaths: 160 L/min ± 10%
  • Oxygen Mix (FiO2) 21% to 95% ± 5% O2
  • PEEP 0 to 20 cm H2O ± 1, (externally adjusted)
  • Trigger Sensitivity -0.25 to -10 cm H2O Pressure, Off
  • Pressure Support Limit 11 to 50 cm H2O above PEEP ± 2 cm H2O
  • Pressure Alarm Limit 10 to 55 cm H2O above PEEP ± 2 cm H2O
  • FiO2 Low Pressure Enrichment 21% to 100% (low and high pressure oxygen source)
  • Altitude -1200 ft up to 25,000 ft
  • Power Specifications:
    • Rechargeable Battery Pack Li 2850 mAh
    • Non-Rechargeable Battery Pack Li 3000 mAh
    • External AC-DC Adaptor 100~264VAC 50/60Hz
    • External DC-DC Adaptor 18~28VDC 4A max

Includes:

  • 1x Battery,
  • 1x Filter,
  • 1x AC/DC Power Adapter



Ventway Sparrow Ventilator Brochure
