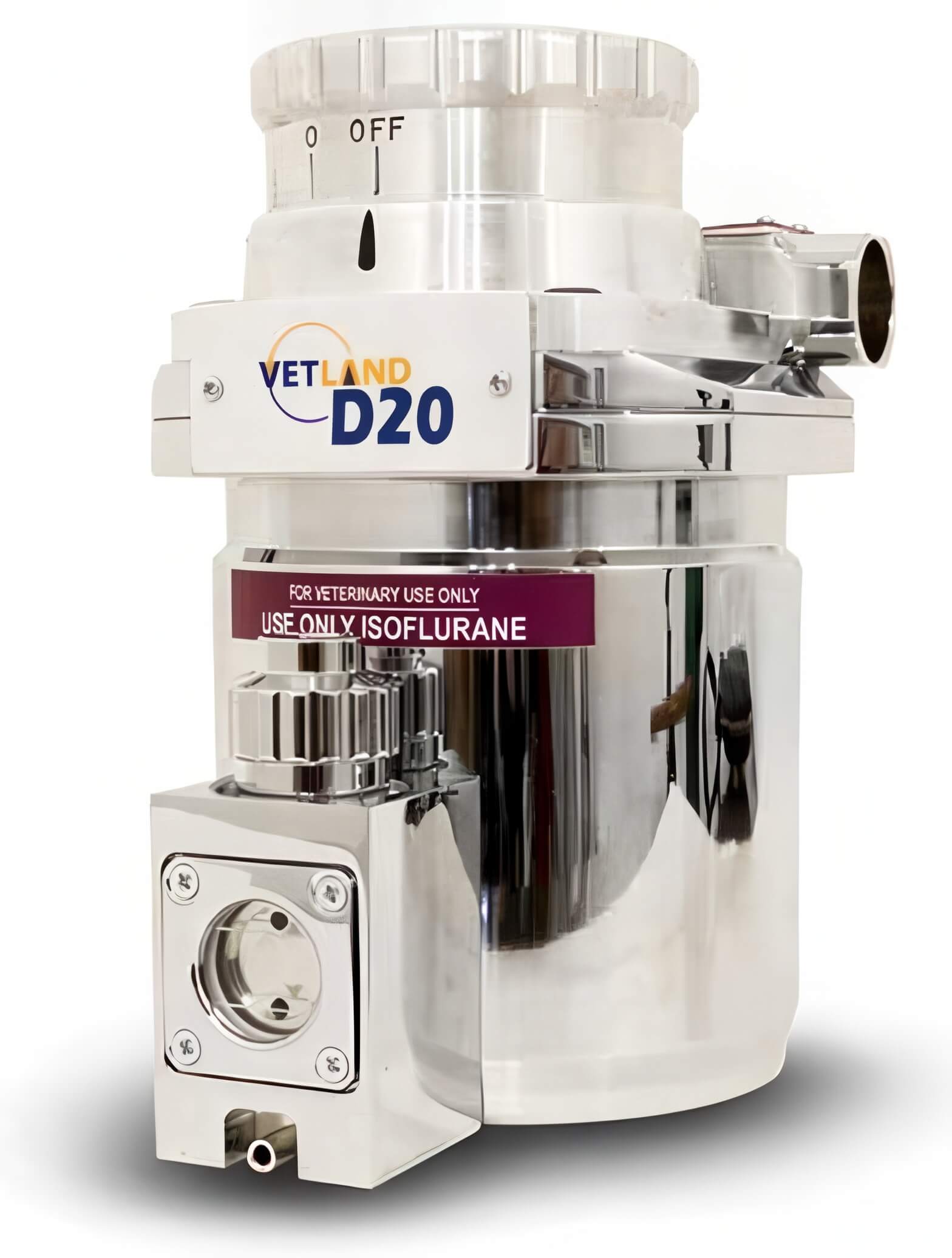

D20 Veterinary Isoflurane Vaporizer
The Vetland D20 Veterinary Isoflurane Vaporizer is a precision, agent-specific vaporizer intended for continuous-flow veterinary anesthesia systems.
Key features:
- Calibrated specifically for isoflurane; a separate sevoflurane version is available.
- Isoflurane concentration range of 0–5%.
- Automatic temperature compensation helps maintain consistent output as ambient conditions change.
- Flow compensation maintains concentration across the specified gas-flow range.
- Universal Selectatec-style mounting; Mounting Cage Mount (custom option: Drager or Selectatec)
- Choice of funnel-fill or key-fill systems.
- Large locking fill cap/keyed filling system helps reduce spills and incorrect-agent filling.
- Built-in safety lockout to help prevent unintended delivery.
- Rugged, corrosion-resistant construction.
- The D20 can be universally mounted to a variety of anesthesia systems and is calibrated for life.
- Five-year warranty.
Specifications:
| Specification | Isoflurane D20 | |
|---|---|---|
| Agent | Isoflurane | |
| Concentration range | 0–5% | |
| Output accuracy | ±0.2% across stated flow and temperature ranges | |
| Carrier gases | Oxygen, air, or nitrous oxide | |
| Operating temperature | 59–95°F (15–35°C) | |
| Mounting | Selectatec-style universal mount | |
| Fill options | Funnel fill or key fill* *Please Specify Key Fill or Funnell Fill at time or order | |
| Approximate weight | 5.5 lb | |
| Approximate dimensions | 8 in H × 4 in W × 6 in D | |
| Part numbers | 520-11-22: funnel fill; 520-11-32: key fill | |
| Warranty | Five years |
