Description

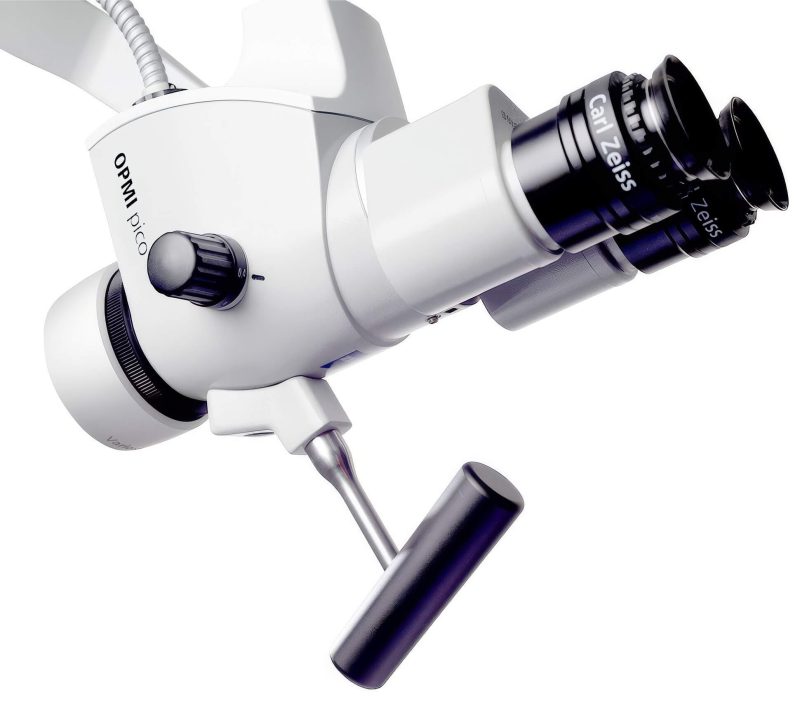

Excellently suited for the many different tasks performed by an ENT diagnostic microscope: OPMI® pico. Zeiss constantly improved what was already excellent in recent ENT diagnostic microscopes and brought it to perfection with the OPMI® pico: mobility, handling and optics. Thanks to its compact design, the OPMI pico is particularly suitable for being attached to ENT treatment devices. In this case, the Pico is powered by an Otopront halogen, LED or Super Bright LED light source, which is attached to the unit, thus reducing the pico’s weight and optimizing the lighting conditions.
Features:
- Precise positioning and easy handling for maximum flexibility.
- T-handgrip provides reliable, exact positioning capabilities.
- Outstanding focusing abilities with razor-sharp images.
- High-eyepoint eyecups for excellent visual comfort.
- Outstanding image quality for relaxed vision with or without eyeglasses.
- Five-step magnification with the apochromatic magnification changer.
- Homogeneously illuminated field of view.
- Ergonomic design allows clinicians to use the microscope while sitting comfortably.
- Easily changeable objective lenses of varying focal lengths.
- Compact, streamlined design.
- Available in multiple configurations: floor stand, wall mount or ceiling mount
Zeiss OPMI Pico ENT Specifications:
Magnification:
• Manual Carl Zeiss magnification changer, 1:6 ratio in 5 steps
Objective Lenses:
• Different focal lengths from f= 200 mm to f= 400 mm, graded in steps of 50 mm
• Fine focus objective lenses: 200, 250, 300 mm
Main Binocular Tube:
• 0-180° Tiltable tube, f= 170 mm
• 0-180° Tiltable tube, f= 200 mm (optional)
Foldable Tube: f170/f260, incl. PROMAG™ function for additional 50% magnification and integrated rotate function (optional)
Illumination:
• 100 W halogen illumination
• Superlux® 180 (optional): 180 W xenon lamp with daylight color temperature
Rated Voltage:
• 115 V/230 V ±10 %
Rated Frequency:
• 50 Hz – 60 Hz
Power Consumption:
• Halogen illumination: 115 V/230 V, max. 2 A/1 A
Includes:
• S100 Stand
• Assistant observation tube and eyepiece viewing package
