Description
Provides high-quality (97%) vapor quality clean steam needed to power connected equipment. Automatic controls include heating section water level control and steam pressure controls to control operating pressure and monitor high-pressure limit. Auxiliary low water cut-off feature turns off heating element in event of water level control failure. Heating section insulated with 2″ thick glass fiber.

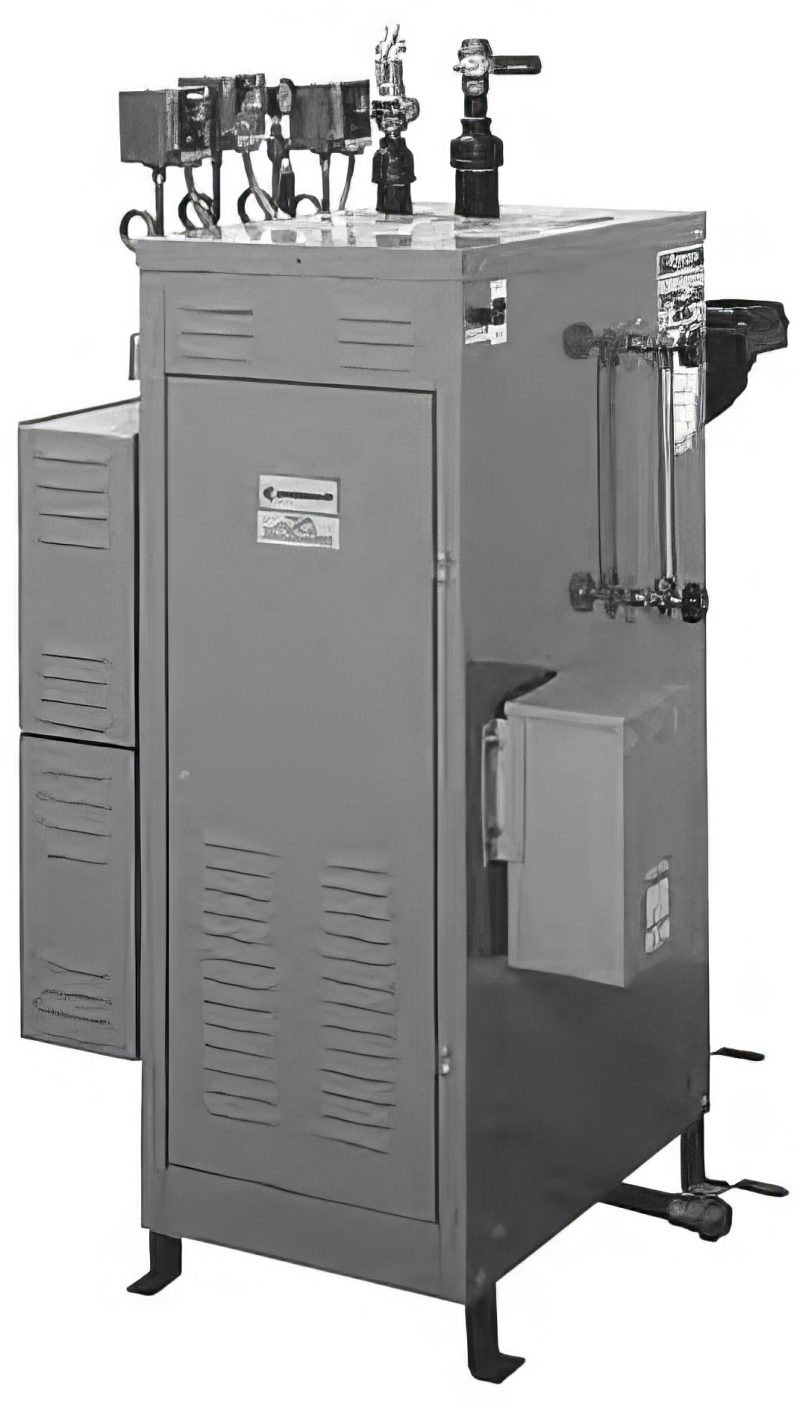

Electric Steam Generator 102kW –
Weight – 940lbs
Dims: W 34.25 L 33.125 H 60
Includes Feedwater Pump
Water consumption in gph (lph) at Steam output of 80 psi with 140 F feedwater – 38.7 Gph
The recommended total hardness should be 0-17 mg/l, specific resistance not to exceed 26,000 Ω/cm with pH maintained between 6.8 and 7.5. Total dissolved solids should not exceed 250 PPM and alkalinity (bicarbonate only) should not exceed 180 PPM as calcium carbonate.
Electrical:
480V 3ph 123 Amps
208V 3ph 283 Amps
All boilers have 120V/1/60Hz control circuit
Heating:
322.5 lb/hr Steam Output
Approx. heat loss in BTU/hr at 70°F ambient continuous operation: 4400BTU/hr
Copper 90C AWG unless indicated otherwise
Allow 21″ for element
