Description
1000 pound lift
800 pound articulate capacity
24 inch minimum table height
23 inch top slide travel
57 inch imaging window capacity
Return-to-level
Auto Beach Chair Position
Removable back and leg sections
Full body imaging without special accessories

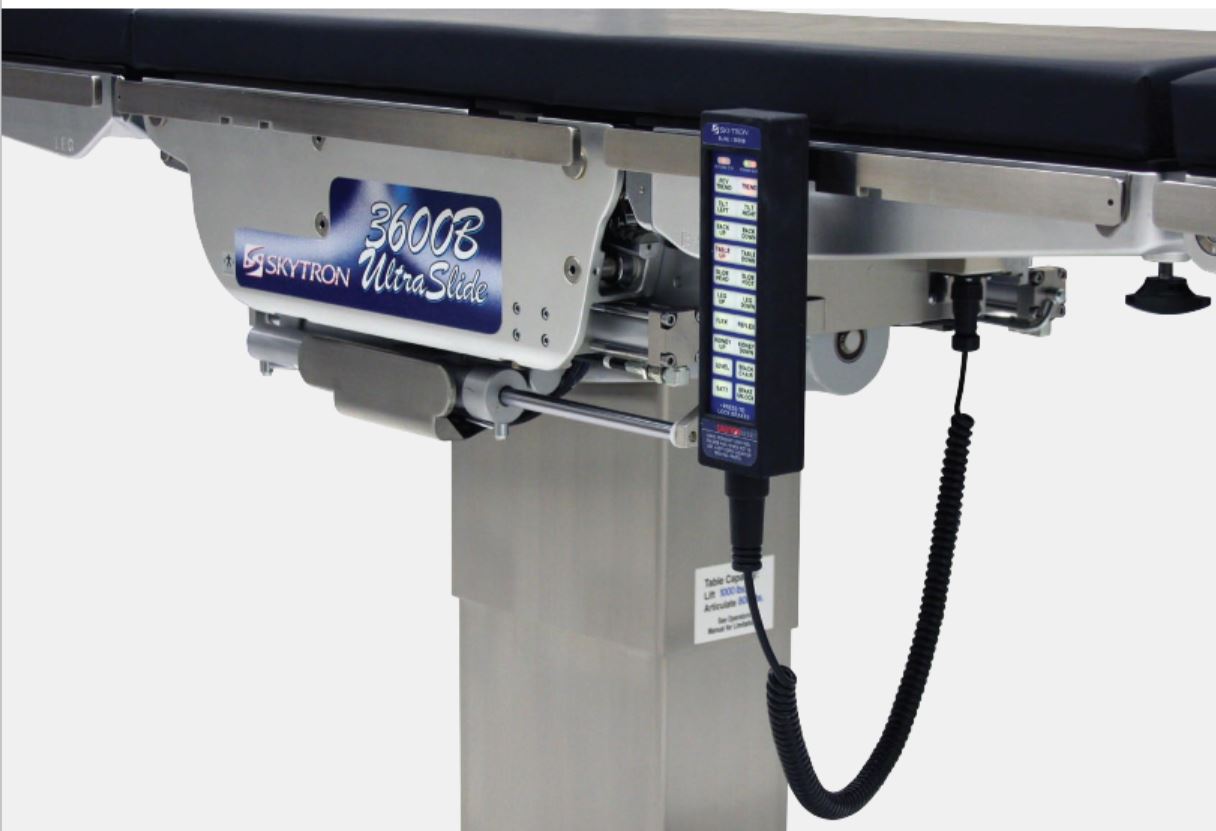

Durable one-touch pendant control
Battery power

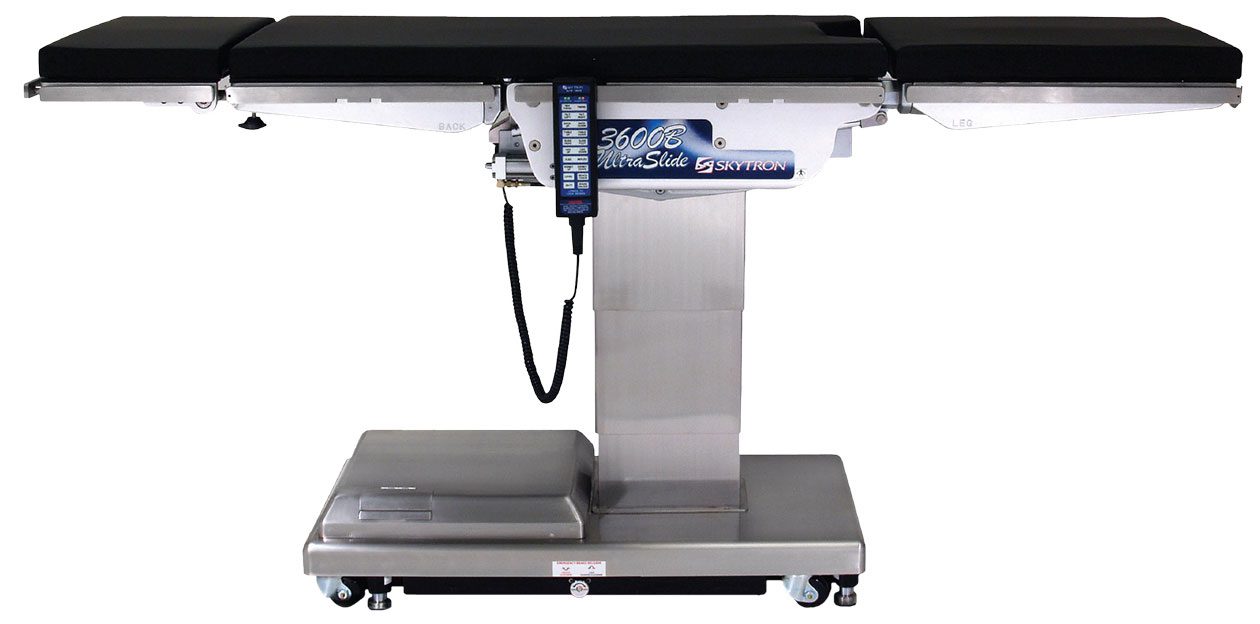

Skytron 3600B Specifications
Dimensions
Length 69″ (1750 mm)
Length (with head rest) 82″ (2080 mm)
Width 19.5″ (500 mm)
Width (with side rails) 22″ ( 560 mm)
Weight of operating table 800 lbs (365 kg)
Maximum permissible load (Lift) 1000 lbs (455 kg)
Maximum permissible load (Articulation) 800 lbs (365 kg)
Adjustments
Height 24 – 42.5 in (610 – 1080 mm)
Lateral tilt (left/right) 30°
Trendelenburg/Reverse Trend 30°/30°
Power Kidney Bridge 5.75 in 145 mm
Back up/down 90°/40°
Leg up/down 15°/100°
Top slide/head 9.5 in (240 mm)
Top slide/foot 13.5 in (340 mm)
Flex/Reflex 40°/90°
Base braking (lock/unlock) Yes
Return to level Yes

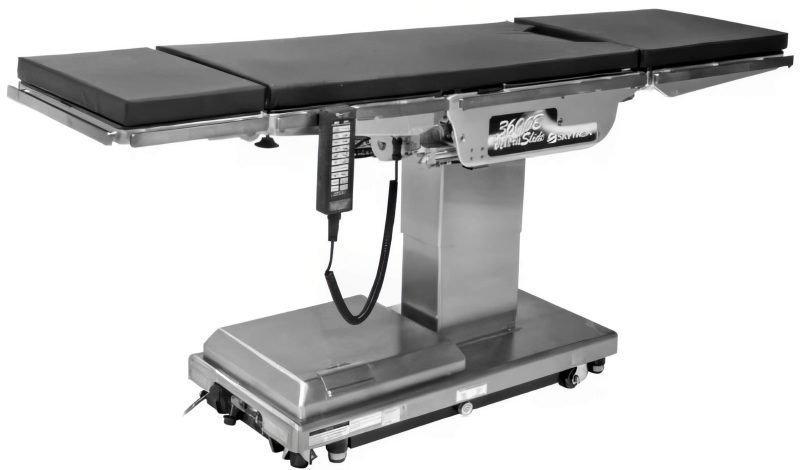

Skytron Part Number 3600B Ultraslide
