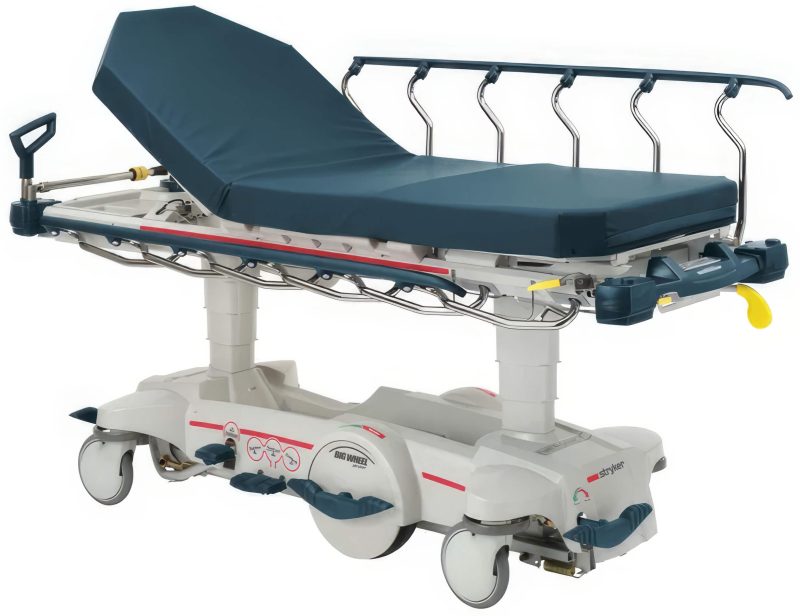

Stryker M Series Model 1015 Stretcher, with Big Wheel

Request Quote

The Stryker M-Series SM 204 (1015) with Big Wheel is a highly adaptable and fully-equipped stretcher that offers a range of mobility solutions to meet individual needs. Designed to prioritize both patient care and clinician comfort, these stretchers are incredibly mobile and user-friendly. With their big wheel feature, they are able to reduce physical strain on clinicians without compromising on the comfort and care provided to the patient.

The stretcher has a variety of additional features, including an overall length of 84 inches and an overall width of 33.5 inches (with siderails up) or 37 inches (with siderails down). The patient surface is 26 inches by 74.25 inches, and the side rails measure 14 inches by 57.75 inches. Additionally, the stretcher has a maximum weight capacity of 700 lbs and includes a 4-inch mattress and an IV pole. Perfect for healthcare settings, the Stryker M-Series SM 204 (1015) with Big Wheel offers a reliable and adaptable solution for safe and comfortable patient transportation.

To submit a quote request for this product please fill out the form below.
Product Quote Request
Quantity *

Want a discount? Ask about our service agreements! With a service agreement, you can get 5% off of any online purchase.
SKU: AM-SM204B Category: Tags: , ,


Stryker M-series SM 204 (1015) with Big Wheel

Fully-equipped and completely adaptable, the M-Series allows you to choose the mobility solution that best suits your needs. Supremely mobile and user-friendly, these stretchers greatly reduce the physical strain on clinicians without sacrificing patient care and comfort. Includes Big wheel.


  • Overall Length: 84″ (213.4 cm)
  • Overall Width (siderails up): 33.5″ (85.1 cm)or 37″ (94 cm) [30″ litter]
  • Overall Width (siderails down): 30.25″ (76.8 cm)or 30.75″ (78.1 cm) [30″ litter]
  • Height Overall/High Position: 34″ (86.4 cm)
  • Height Overall/Low Position: 20.75″ (52.7 cm)
  • Patient Surface: 26″ x 74.25″ (66 cm x 188.6 cm)or 30″ x 74.25″ (76.2 cm x 188.6 cm)
  • Siderails: 14″ x 57.75″ (35.6 cm x 146.7 cm)
  • Caster Size: 8″ (20.3 cm)
  • Knee Gatch: 40 degrees
  • Backrest: 0 – 90 degrees
  • Maximum Angle: 87.5 degrees
  • Trendelenburg: +16 degrees
  • Reverse Trendelenburg: -16 degrees
  • Maximum Patient Weight: 700 lb (317.5 kg)
  • 4″ Mattress
  • Includes IV Pole

Additional information

Weight 500 lbs
Dimensions 92 × 36 × 36 in
